What is a hood used for in the chemistry laboratory?

The most important piece of personal protective equipment in every chemistry workstation is the fume hood, officially known as the laboratory chemical fume cupboard. It provides a closed enclosure that guarantees the removal of any dangerous vapors, noxious gases, and corrosive aerosols produced throughout the experiment, out of the user’s breathing zone via a regulated exhaust system. The negative pressure atmosphere within the cabinet prevents the polluted air from leaking into the room. It not only protects individual researchers, but also enables facilities to satisfy occupational health regulations and pass institutional safety assessments with confidence.

Understanding the Role of a Hood in Chemistry Laboratories

What Exactly Does a Fume Hood Do?

Fume Hoods operate by making sure the direction of flow through the sash opening is inward, trapping and channeling chemical vapors via internal baffles into an exhaust duct. The face velocity is normally between 0.3 and 0.5 m/s (60–100 fpm) according to ASHRAE 110 rules, to prevent pollutants from reaching the user. This regulated airflow is the difference between a safe experiment and a hazardous exposure occurrence.

Why It Goes Beyond Simple Ventilation

Modern fume hoods do more than just shift air. They prevent cross-contamination between experiments, protect delicate analytical equipment from corrosive vapor deposits, and offer a physical barrier against splash accidents. These are not only accessories but are a key safety infrastructure for any institution working with volatile organic substances, concentrated mineral acids, or oxidizing agents.

Regulatory Compliance Requirements

Ventilation standards are set by academic and testing laboratories. In the U.S., OSHA 29 CFR 1910.1450 mandates suitable engineering measures to safeguard workers against exposure to hazardous chemicals. Containment Testing International Standards for Containment Testing include EN 14175 and SEFA 1. Any institution subject to audit, from a university safety inspection to a third-party accreditation review, requires recorded evidence that its ventilation system fulfills these limits.

Types of Laboratory Chemical Fume Cupboards and Their Features

Ducted vs. Ductless Models

Ducted fume cupboards connect to a building's HVAC exhaust system and physically remove contaminated air from the building. They handle the widest range of chemicals, including highly toxic or flammable vapors. Ductless models recirculate air through activated carbon filters and work well for low-toxicity applications, but they require filter monitoring and are not appropriate for perchloric acid or highly volatile solvents.

CAV and VAV Airflow Control Systems

Constant Air Volume (CAV) systems maintain a fixed exhaust rate regardless of sash position, which is straightforward but energy-intensive. Variable Air Volume (VAV) systems automatically adjust airflow based on sash height, which can reduce energy consumption by 30–50% over a CAV installation for a laboratory chemical fume cupboard. For high-use laboratories running multiple units simultaneously, this operational cost difference is substantial over a multi-year period.

Specialized Variants and Safety Features

Acid-resistant models lined with polypropylene or phenolic resin protect the cabinet interior from concentrated acid exposure. Noise-optimized designs reduce operational sound levels below 60 dBA, which matters during long analytical procedures requiring concentration. Key safety add-ons include sash position alarms, real-time airflow monitors, and low-flow alert systems — all of which contribute directly to audit readiness and daily user safety.

How to Safely Use and Maintain a Fume Cupboard

Correct Operating Practices

The sash should remain at or below the marked safe working height during all operations — typically no higher than the indicated line on the frame. Keeping the interior free of excess equipment prevents airflow obstruction. All chemical work should be conducted at least 6 inches (15 cm) behind the sash plane to avoid air disturbance near the opening. Never store chemicals permanently inside the cabinet, as accumulated containers restrict proper air circulation.

Routine Maintenance and Certification

Annual face velocity testing is the minimum standard recommended by ASHRAE 110 and EN 14175. Any significant change to the building's HVAC system — new exhaust fans, renovated ductwork, or added extraction points — warrants immediate re-certification. Internal surfaces should be cleaned regularly with compatible solvents, and baffle alignment should be checked during each scheduled inspection to confirm that the airflow pattern remains as designed.

Training and Installation Considerations

Proper installation by experienced technicians is non-negotiable. Incorrect duct connections, inadequate make-up air supply, or misaligned baffles can all compromise containment even in a brand-new unit. User training should cover sash operation, chemical compatibility with cabinet materials, emergency procedures, and alarm response. These steps protect both personnel and the equipment investment.

Comparing Fume Cupboards with Other Containment Solutions

Fume Cupboards vs. Biosafety Cabinets

Biosafety cabinets (BSCs) are designed for biological agents — they protect the sample, the user, and the environment from pathogen exposure using HEPA filtration. Chemical fume enclosures handle toxic vapors and corrosive gases that would destroy HEPA filters and create a fire risk. Using a BSC for chemical work is a safety violation in most jurisdictions. The two devices serve fundamentally different protection categories.

Fume Cupboards vs. Laminar Flow Hoods

Laminar flow hoods direct HEPA-filtered air across a work surface in a single direction to prevent particulate contamination of samples. They offer zero chemical vapor protection because airflow moves toward the user, not away, unlike a laboratory chemical fume cupboard. They are appropriate for sterile cell culture or microelectronics work — not for any procedure involving volatile reagents or corrosive chemicals.

Energy Efficiency and Noise Considerations

A VAV-equipped fume enclosure operates significantly more efficiently than a fixed-exhaust system when average sash height is below the maximum. Studies from Lawrence Berkeley National Laboratory found that VAV controls in laboratories can reduce HVAC energy use by up to 50% compared to conventional CAV systems. Noise levels also differ — polypropylene hood components absorb vibration more effectively than metal, keeping ambient sound lower during extended work sessions.

How to Choose and Procure the Right Fume Cupboard for Your Laboratory

Evaluating Performance and Dimensions

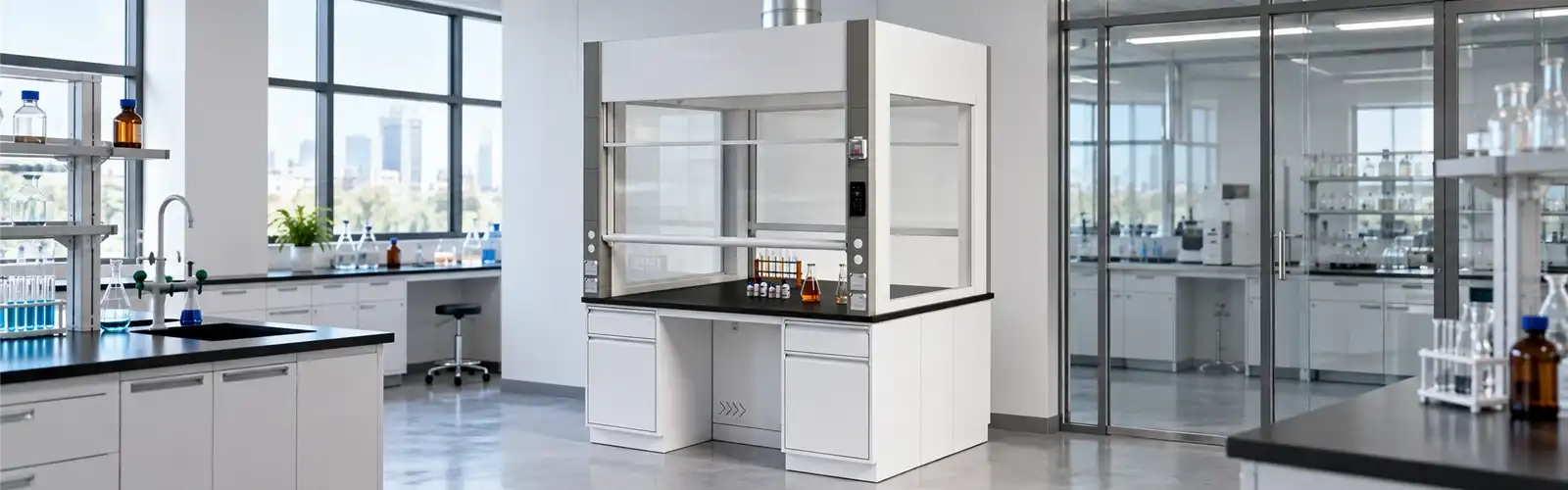

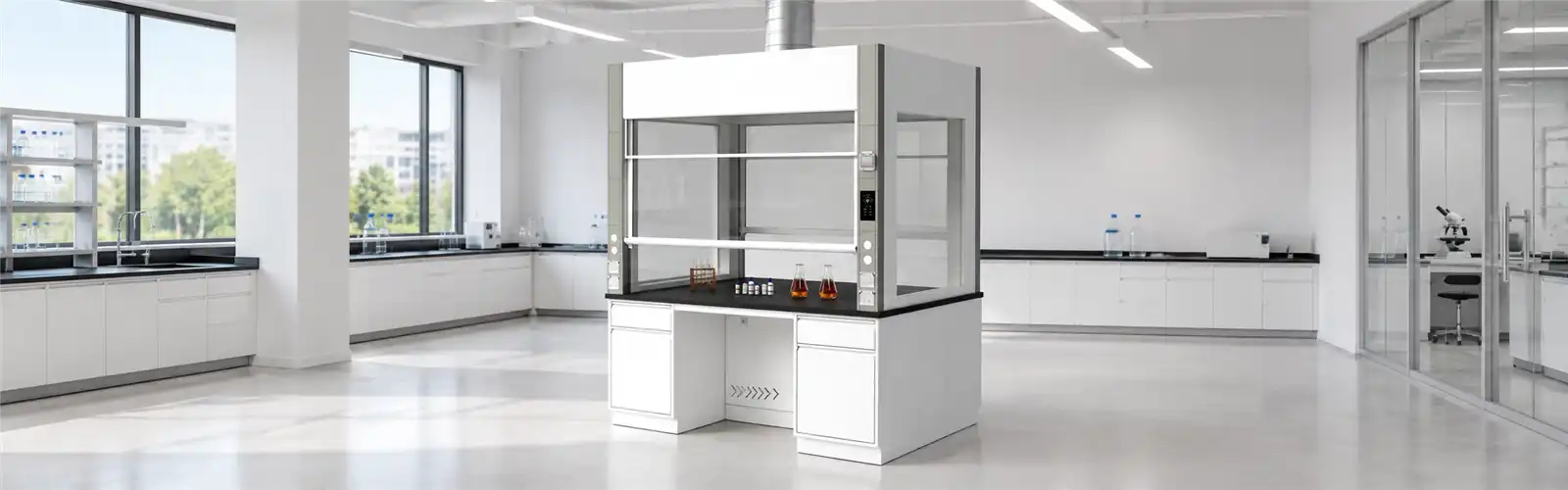

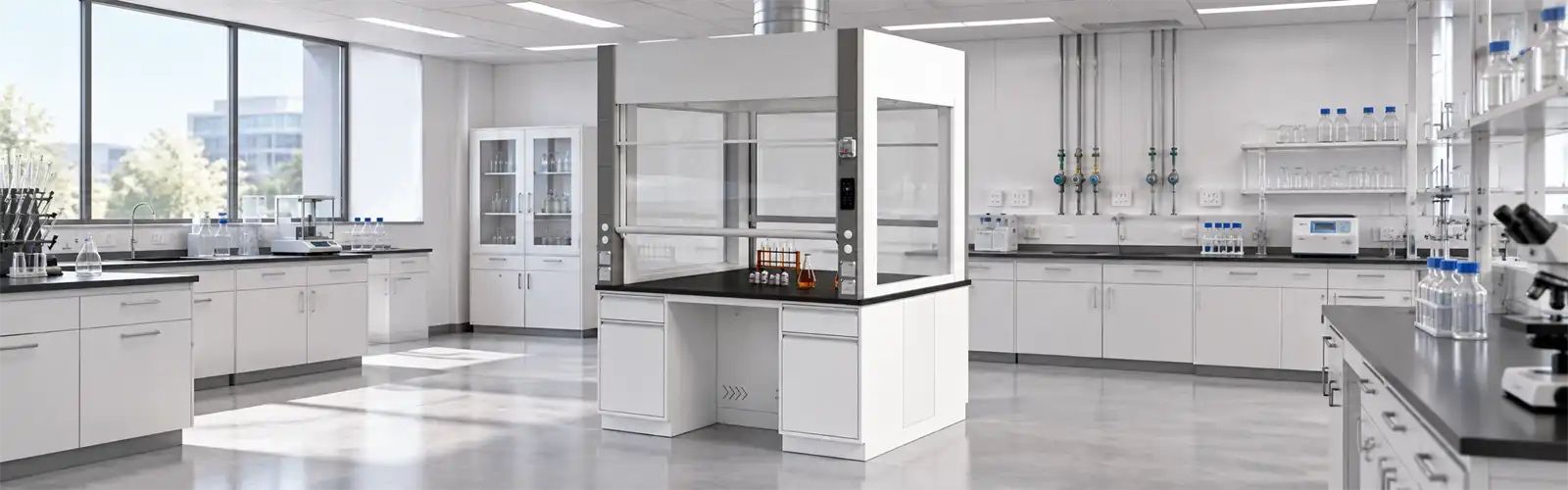

Start with face velocity requirements for your specific chemical inventory, then match cabinet dimensions to your available floor space and instrument load. Youken's fume cupboard line offers three width options — 1200 mm, 1500 mm, and 1800 mm — with a standardized 850 mm countertop height and interior depths of 645 mm. The floor-standing design with integrated base storage handles large analytical instruments while keeping reagents organized near the work zone.

Material and Construction Standards

The body of the cabinet is made of 1.0mm cold rolled steel sheet after acid washing, phosphatizing, and electrostatic spraying. The multi-stage anti-corrosion treatment prevents deformation from heat cycling and withstands everyday exposure to acids, solvents, and alkaline solutions. The polypropylene (PP) hood delivers 20-30% less pressure loss than traditional metal designs and lowers system noise, a real plus when numerous units are operating in tandem.

The principal structural and performance characteristics that differentiate this product are:

• Three-stage baffle ventilation system creates smooth laminar airflow patterns throughout the work chamber, preventing stagnant zones where heavy vapors might build up.
• The VAV-ready design enables the cabinet to directly interface with variable air volume exhaust systems to provide energy savings without affecting containment performance.
• The PP conical intake hood, with precision-angled geometry, avoids turbulent entrance zones and decreases the total system pressure loss.
• Seamless design of chemical-resistant interior surfaces eliminates reagent collection in seams, simplifying cleanup after spills.

The advantages cover the two biggest procurement issues: containment reliability and continuing operational cost. A well-built installation decreases both the chance of safety incidents and the energy consumption of the facility.

Procurement Process and Certification

Procurement teams should request third-party test reports confirming face velocity uniformity, SF6 tracer gas containment results, and material chemical resistance per SEFA 8. CE certification and ISO compliance documentation should accompany any formal tender submission. Youken supplies complete technical documentation packages to support institutional procurement and accreditation review processes.

Conclusion

A chemistry laboratory chemical fume cupboard is the first line of defense against exposure to chemical vapors, and choosing the proper one is a matter of matching performance parameters to your real chemical inventory, space limits, and compliance needs. The difference between proper and improper ventilation equipment may be the difference between passing a safety audit or, more importantly, the health of the individuals working in your facility. Buy approved and tested equipment from vendors that can provide verifiable performance statistics. It's the paperwork that gets you procurement permissions and maintains accreditation in place.

FAQ

1. What face velocity should a chemistry fume hood maintain?

The generally accepted standard is 0.5 m/s (100 fpm) at the sash opening. ASHRAE 110 and EN 14175 use this threshold as the benchmark for containment testing. Some low-toxicity applications permit 0.3 m/s, but facilities handling highly toxic or carcinogenic substances should maintain the higher threshold.

2. How often does a fume cupboard need to be certified?

Annual certification is the industry minimum. Re-testing is also required whenever the building HVAC system changes, the cabinet is relocated, or surrounding room configurations are altered. Documentation of each test should be retained for accreditation audits.

3. Can one fume cupboard handle all types of chemicals?

Most standard ducted units handle a broad range of chemicals. However, perchloric acid requires a dedicated cabinet with a wash-down system to prevent explosive perchlorate salt deposits. Hydrofluoric acid applications may require specialized liner materials beyond standard steel or PP construction.

4. What is the difference between a fume hood and a biosafety cabinet?

Fume hoods contain chemical vapors and exhaust them out of the building. Biosafety cabinets use HEPA filtration to protect against biological agents and recirculate or exhaust filtered air. They serve different hazard categories and cannot substitute for each other.

5. Is VAV worth the added cost over CAV?

For laboratories running fume enclosures more than 8 hours daily, VAV systems typically recover their added installation cost within 2–4 years through reduced HVAC energy consumption. Lawrence Berkeley National Laboratory research supports energy reductions of up to 50% with VAV controls in laboratory environments.

Get a Certified Fume Cupboard Quote from Uken Today

Uken, operated by Luoyang Youken Laboratory Equipment Co., Ltd., supplies laboratory chemical fume cupboard solutions backed by CE, ISO, and SGS certification — with full technical documentation for procurement and accreditation support. Our engineering team can size and configure units across three standard widths to fit your lab layout. Contact Us at service@ukenlab.com to  WhatsApp: +8615102909133 request specifications and pricing from a trusted laboratory chemical fume cupboard manufacturer.

References

1. American Society of Heating, Refrigerating and Air-Conditioning Engineers (ASHRAE). ASHRAE 110: Method of Testing Performance of Laboratory Fume Hoods. ASHRAE, 2016.

2. European Committee for Standardization. EN 14175: Fume Cupboards — Part 1–6. CEN, 2003–2019.

3. Scientific Equipment and Furniture Association (SEFA). SEFA 1: Recommended Practices for Laboratory Fume Hoods. SEFA, 2010.

4. Mills, E., and Sartor, D. Energy Use and Savings Potential for Laboratory Fume Hoods. Lawrence Berkeley National Laboratory, 2005.

5. Occupational Safety and Health Administration (OSHA). 29 CFR 1910.1450: Occupational Exposure to Hazardous Chemicals in Laboratories. U.S. Department of Labor, 1990 (updated 2012).

6. National Research Council. Prudent Practices in the Laboratory: Handling and Management of Chemical Hazards. National Academies Press, 2011.
