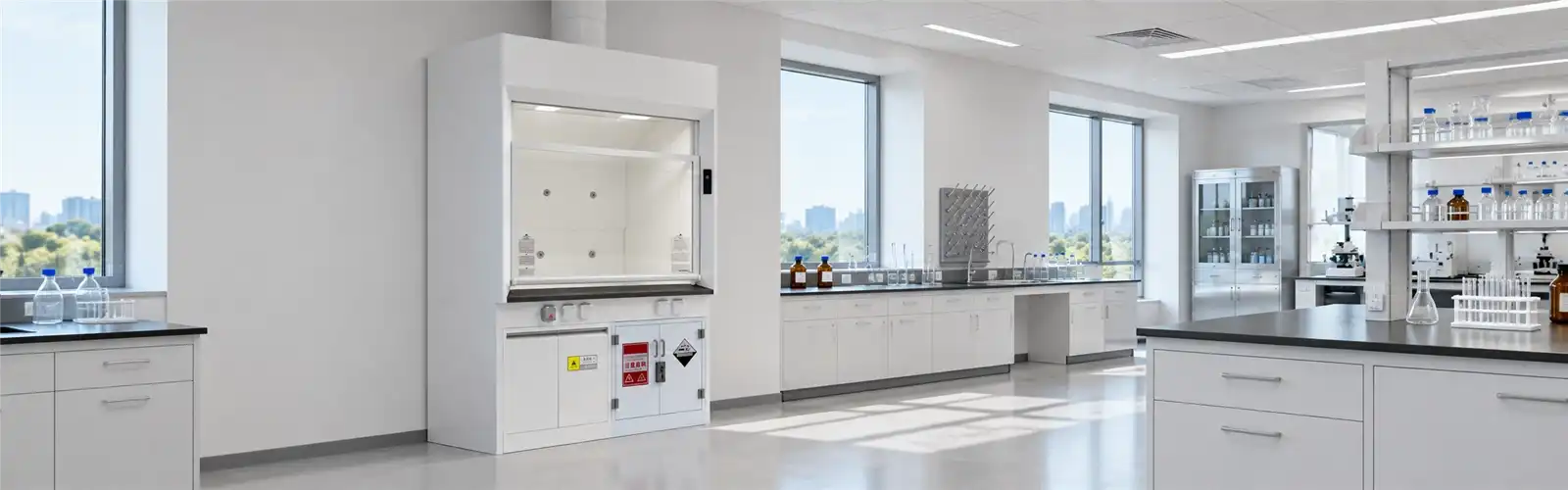

Steel Lab Fume Hood: Key Features to Consider Before Purchasing

The proper choice of a steel lab fume hood has a direct impact on worker safety, regulatory compliance, and long term running expenses. The steel lab fume hood is the principal containment system constructed of high-grade steel to trap and remove dangerous chemical vapors, gases, and fine particles away from the breathing zone. Steel architecture provides the fire resistance, structural load capacity, and chemical longevity that continuous-operation facilities really need, unlike wood or polypropylene alternatives. This handbook leads procurement managers and the EHS engineers through all the aspects that are worth considering before executing a purchase order.

Understanding Steel Lab Fume Hoods: Essential Knowledge for Buyers

Before comparing specifications, it helps to understand what separates a steel fume hood from every other ventilation cabinet on the market and why the material choice matters more than most buyers initially expect.

What a Steel Fume Hood Actually Does

A laboratory fume hood pulls air in via the sash opening to produce negative pressure in the work chamber, trapping vapors and directing them to a ducted exhaust system or an activated-carbon filter bed. The suggested standard face velocity for typical ducted models is 0.5 m/sec (100 fpm) (ASHRAE 110, EN 14175). The cabinet is constructed of steel, which will retain its dimensional tolerances via repeated heat cycling for years of everyday operation, ensuring consistent airflow characteristics.

Main Hood Types and Their Industry Fit

Four configurations cover the majority of industrial laboratory needs. Here is how each maps to a specific operating environment:

• Ducted steel hoods connect directly to a building exhaust system and handle the broadest range of chemical classes, including flammables, acids, and high-vapor-pressure solvents. They are the default choice for petrochemical and pharmaceutical synthesis labs running 24/7 shifts.
• Ductless recirculating hoods use carbon or HEPA filter cartridges and suit spaces where ductwork installation is impractical. They work for low-volume analytical work but are not recommended for high-concentration solvent use.
• Canopy hoods mount above open bench processes and capture heat-driven fumes from digesters or heated baths.
• Walk-in hoods accommodate large apparatus and are common in pilot-plant and process-development settings.

Matching the hood type to the process is as important as any material specification.

Compliance Standards You Cannot Ignore

Chemical Fume Hoods in labs handling hazardous compounds must fulfill established performance criteria as required by OSHA 29 CFR 1910.1450. European performance testing is governed by the EN 14175 series (Parts 1-6), while quality management in production is covered by ISO 9001. Choosing a unit with CE, ISO, and CQC certifications, such as Luoyang Youken’s steel lab fume hoods, gives written proof of compliance for audits and insurance assessments.

Key Features to Evaluate Before Purchasing a Steel Lab Fume Hood

Lifetime costs are consistently greater for selections based on the unit price alone. The more you can assess the following criteria against your real operational circumstances, the more justifiable your selection is.

Material Quality and Chemical Resistance

The hood’s longevity in a corrosive environment is determined by the sheet thickness and surface treatment. Youken’s laboratory fume hoods are made of 1.0 mm thick stainless steel sheet for the whole cabinet body. Dust cannot stick to its smooth surface, and it may be cleaned with a normal neutral detergent without any extra process. The chemical-resistant finish resists acids and alkalis to prevent pitting or blistering of epoxy-coated cold-rolled steel after a few years of exposure. For facilities that perform continuous operations, that resistance translates directly into fewer replacement cycles.

Airflow Control and Energy Efficiency

Fixed volume exhaust systems squander conditioned air and raise HVAC running expenses. Variable air volume (VAV) controls adjust the exhaust rate to the sash position, lowering energy use by 30–60% compared to constant-volume systems, according to studies from Lawrence Berkeley National Laboratory. When specifying a fume hood for a big facility, VAV compatibility is worth incorporating into the overall cost model. High-temperature resistance without warping also maintains the cabinet shape that airflow patterns rely on.

Fire Resistance, Noise, and Load Capacity

A non-combustible steel framework is a basic need in the business of dealing with flammable chemicals, not an optional improvement. Your interior arrangement must also be capable of housing your largest analytical equipment without deflection. Make sure the rated load of the work surface is more than the total weight of the instruments you want to install within. Extended processes may be affected by noise production from the exhaust blower, affecting operator comfort; search for providers who offer sound pressure level data.

Dimension Options and Workspace Planning

Youken’s standard configurations come in three footprints: L1200×D850×H2350 mm, L1500×D850×H2350 mm and L1800×D850×H2350 mm. Each width has a distinct bench configuration without changing the bespoke ducting. Confirm aisle clearance and ceiling height before finishing the model. Surprises during commissioning delay production commencement.

Comparative Analysis: Steel Lab Fume Hoods vs Other Materials

Procurement teams may use the knowledge of where steel is winning and where alternatives are still competitive to justify their budget to finance departments.

Industrial labs seldom have a close call between wood and steel. Wood is flammable, absorbs chemical spills, and deteriorates with frequent washing with laboratory-grade disinfectants. Wooden hoods tend to have cheaper initial price tags, but much greater repair and decontamination expenditures over a five-year time frame. Steel also has a much greater load-bearing capability than wood for large apparatus.

Polypropylene (PP) hoods are ideal for one particular circumstance: digesting intense hydrofluoric acid and strong oxidizing acid, where their inertness to those specific chemistries is better. Outside that restricted window of use, PP has lesser mechanical strength, limited temperature tolerance, and poor fire resistance compared with steel. Steel is still the most practical alternative for typical pharmaceutical and petrochemical applications.

The glass-lined interiors give good visibility of the chemicals, but also add fragility to the work room. As Youken’s design has a modular steel lab fume hood with a safety-glass sash window, giving you the visual access of glass with the structural backbone of steel.

The motorized sashes offered the ease and ability to integrate with automated VAV systems, but the electronic components required frequent maintenance compared to manual sash systems. Manual counterbalanced sashes offer fewer failure points and a smaller maintenance cost, so it’s a good fit for facilities that value uptime above automated features.

Maintenance, Common Issues, and Troubleshooting Tips

A well-built fume cabinet still requires scheduled attention. The following maintenance schedule covers the tasks that most directly affect safety and service life.

Here are the core maintenance intervals every facility should follow:

• Daily: Wipe interior surfaces with a neutral detergent solution after each work session. Inspect the sash for smooth travel and confirm that the airflow indicator shows normal face velocity.
• Monthly: Check exhaust duct connections for loosening. Inspect the sash counterweight cable for wear. Clean the baffle slots to prevent particulate buildup that reduces airflow evenness.
• Annually: Commission a certified face velocity test using a calibrated thermal anemometer per ASHRAE 110. Conduct a tracer gas containment test. Inspect coating integrity for micro-scratches that could initiate localized oxidation.

The three most typical failure modes are avoided by these intervals: lower face velocity due to baffle obstruction, surface deterioration due to chemical interaction, and sash mechanism wear due to regular opening and shutting.

Troubleshooting tip: If face velocity reduces unexpectedly, check the building exhaust fan belt and duct damper adjustment before concluding the hood is bad. The majority of the most unexpected airflow decreases are caused by building HVAC adjustments, not hood faults.

When choosing a supplier, check the lead times for replacement parts and inquire whether they offer modular component replacement. Youken’s modular design concept enables individual components to be replaced without taking the complete unit out of operation, thus reducing production downtime.

Procurement Considerations for Global B2B Buyers

The purchase of industrial fume hoods typically takes one to four months, from the point of necessity to acceptance of the installation. By explicitly defining that approach up front, you avoid budget overruns and scheduling delays.

Begin by writing down your chemical inventory, process temperatures, and shift schedule. That data tells you whether you need ducted or ductless, what surface treatment grade you need, and how many units the building needs. “Always ask for certified product documentation — CE, ISO, CQC — before you place a formal tender. Finding compliance gaps after award results in a lot of wasted time.”

Steel Lab fume hood manufacturers are accredited. They purchase in bulk, which lowers the cost per item and makes transportation easier. With a manufacturing base of 50,000 square meters and 100 engineers, Youken ensures the same quality of output for huge orders for pharmaceutical, petrochemical, and institutional customers. Each item is sent in solid protective packaging, eliminating transportation damage, which is important when importing equipment over extensive supply chains.

Expense-wise, a steel hood that lasts 10 years amortizes its purchase price at less than a quarter of the yearly expense of replacing a lesser hood. EHS managers often find certified steel hoods from reputable vendors to be a great value when calculating total lifespan cost, which includes maintenance labor, replacement parts, and regulatory inspection costs.

Conclusion

When choosing laboratory fume hoods for continuous industrial operation, the material qualities have to be adapted to the practical process requirements. Steel lab fume hood structure provides fire resistance, chemical durability, and structural load capacity that wood and polypropylene cannot provide in petrochemical and pharmaceutical applications. Checking airflow specs, surface treatment quality, modular serviceability, and certification documents before buying safeguards staff safety and long-term capital investment. The features discussed in this guide provide procurement teams with a practical framework for comparing options and making decisions that they can defend to finance and safety regulators.

FAQ

1. What face velocity should a steel lab fume hood maintain?

The industry standard, per ASHRAE 110 and EN 14175, is 0.5 m/s (100 fpm) measured at the sash opening. High-performance variable air volume systems can maintain adequate containment at 0.3–0.4 m/s, reducing energy costs while keeping personnel exposure below safe thresholds.

2. How often does a fume hood require formal performance testing?

OSHA guidelines and SEFA 1 recommend a full performance test at least once per year, or immediately after any repair, relocation, or ductwork modification. Annual certified testing documents compliance for regulatory inspections.

3. Can a ducted steel hood be converted to ductless operation?

Generally, no. The exhaust volume requirements, baffle geometry, and filter cartridge space differ significantly between the two configurations. Attempting conversion without engineering review risks reducing containment effectiveness.

4. How do I clean and preserve the stainless steel interior?

Wipe surfaces with a neutral pH detergent using a soft cloth. Avoid abrasive pads or steel-wool tools, which create micro-scratches that accelerate localized corrosion over time. Dry surfaces after cleaning to prevent water spotting.

5. What certifications should I require from a supplier?

Request CE, ISO 9001, and CQC documentation as a minimum. For pharmaceutical applications, ask whether the manufacturing process supports GMP-adjacent quality records that satisfy internal audit requirements.

Get a Quote from Uken — Your Trusted Steel Lab Fume Hood Supplier

Uken, operated by Luoyang Youken Laboratory Equipment Co., Ltd., offers certified steel lab fume hoods built from 1.0 mm stainless steel with CE, ISO, and CQC documentation ready for your audit files. Our 50,000 m² production base and 100 professional engineers support custom sizing, bulk orders, and fast delivery. Contact Our Team today at service@ukenlab.com to WhatsApp: +8615102909133 request a tailored quote and product specification sheet.

References

1. American Society of Heating, Refrigerating and Air-Conditioning Engineers (ASHRAE). ASHRAE 110: Method of Testing Performance of Laboratory Fume Hoods. ASHRAE, 2016.

2. European Committee for Standardization (CEN). EN 14175: Fume Cupboards — Parts 1–6. CEN, 2019.

3. Occupational Safety and Health Administration (OSHA). Occupational Exposure to Hazardous Chemicals in Laboratories: 29 CFR 1910.1450. U.S. Department of Labor, 2011.

4. Scientific Equipment and Furniture Association (SEFA). SEFA 1: Recommended Practices for Laboratory Fume Hoods. SEFA, 2010.

5. Mills, E., Sartor, D., & Piette, M. A. Laboratory Fume Hood Energy Performance and Control Strategies. Lawrence Berkeley National Laboratory, 2007.

6. National Research Council. Prudent Practices in the Laboratory: Handling and Management of Chemical Hazards. National Academies Press, 2011.
