Stainless Steel Fume Hood vs. Standard Fume Hood: Which Is Better?

When selecting a fume hood for a GMP-regulated or research-grade laboratory, the material choice directly affects compliance outcomes, maintenance costs, and long-term safety. A stainless steel fume hood offers a non-porous, corrosion-resistant workspace built from AISI 304 or 316L grade material, making it the preferred specification for pharmaceutical, biotech, and cleanroom environments. Standard Fume Hoods, typically constructed from fiberglass, phenolic resin, or epoxy-coated steel, serve general-purpose laboratories adequately but fall short where aggressive chemical exposure, sterile conditions, or audit documentation are required. This comparison helps procurement engineers make a confident, evidence-based decision.

Understanding Stainless Steel Fume Hoods and Standard Fume Hoods

Before you compare performance, it's helpful to know what makes these two groups different at the construction level. Almost every benefit or drawback that follows is caused by the material difference.

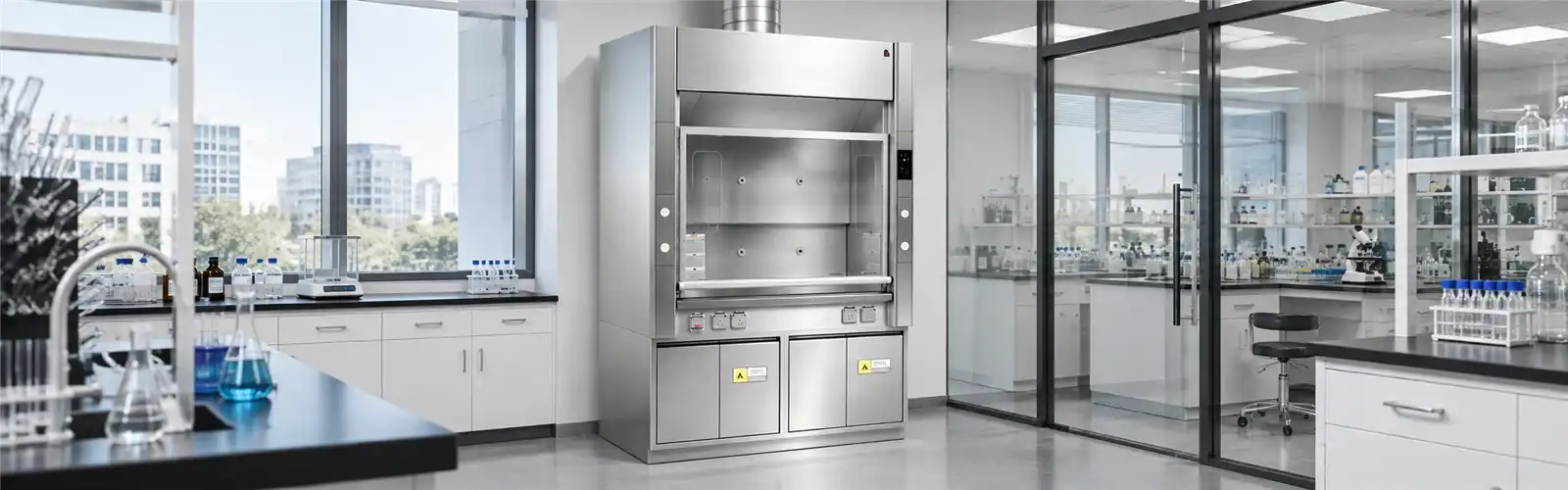

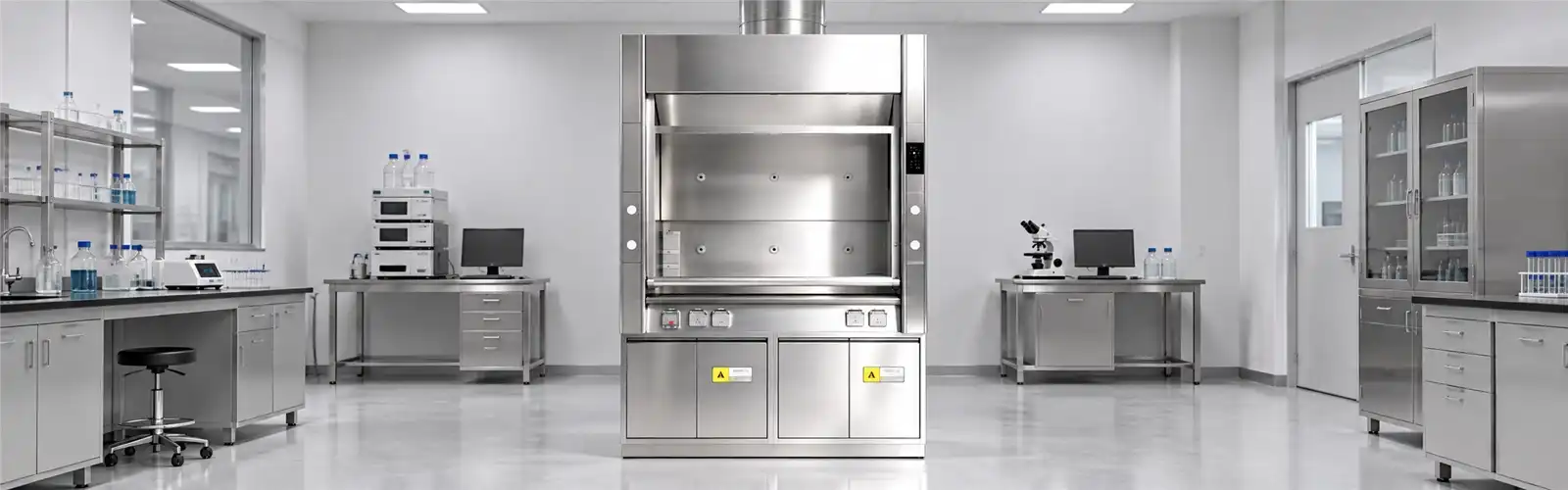

What Is a Stainless Steel Fume Hood?

A stainless steel fume hood is a device for venting local exhaust air that is made of heavy-gauge Type 304 or 316L stainless steel. The worktop, side walls, and interior liner are all made of the same non-porous material. This material doesn't let chemicals through, works with harsh sterilization methods, and meets ISO 14644 cleanroom compatibility standards. The types made by Youken work with VAV (variable air volume) systems and have ventilation, exhaust, trial, and storage built into a single unit.

What Is a Standard Fume Hood?

The inside walls of most fume hoods are made of fiberglass-reinforced plastic, epoxy glue, or steel plates that have been coated. These materials work well in general chemistry classes or other academic settings with low chemical amounts and low needs for cleaning. They are cheaper to buy, which makes them a good choice for buying rounds where money is tight. But over time, their porous or laminated surfaces soak up chemical residue, which makes decontamination harder and increases the risk of audits in regulated areas.

How Both Types Work?

Both types of hoods work in the same way: a blower moves air from the room across the work area and through an exit duct. This creates a negative-pressure zone that traps dangerous vapors before they reach the operator's breathing zone. The main difference is how well each material holds up against repeated chemical exposure, cleaning processes, and the need for lots of paperwork for GMP checks.

Key Comparison Dimensions: Stainless Steel vs. Standard Fume Hoods

To choose between these two types of hoods, you need to take a structured look at performance in four areas that QA teams and procurement managers always put first.

Durability and Chemical Resistance

Molybdenum in AISI 316L stainless steel makes it more resistant to cracking from cleaning products that are based on chloride. Epoxy or fiberglass covers, on the other hand, break down when they come in contact with strong acids, oxidizers, or repeated wipe-downs with IPA. According to SEFA 8M (Metal Casework Standards), metal lab furniture always does better in long-term chemical exposure tests than polymer-based options.

Safety, Fire Resistance, and Compliance

Stainless steel can't catch fire. When using perchloric acid or high-heat reactions, a interior takes away the chance of a fire spreading, which is present with resin-based liners. The FDA's GMP and CGMP rules say that surfaces that come into direct touch with pharmaceutical processes must be non-reactive, non-additive, and non-absorptive. Stainless steel meets these requirements, but many common hood materials don't. Both types must go through annual ASHRAE 110 containment testing, but stainless steel innards are easier to certify because wear and tear on the surface doesn't change how air flows over time.

Maintenance and Cleaning Protocols

This is where the difference for daily operations teams becomes clear in real life. A stainless steel hood's #4 satin-finish surface is smooth and easy to clean with just deionized water and mild detergent. The one-piece smooth worktop doesn't have any seams, so there are no gaps where chemicals can gather. Youken's units have detachable front frames and side panels that let techs access water and gas lines through a side service door without disturbing desks next to it. This is a design choice that cuts down on planned downtime during production windows. Standard hoods with painted or laminated panels need to have their surfaces checked more often. Scratches and chips in the panel reveal the underlying material, making it easy for contaminants to get in and hard to fix without replacing the panel.

Energy Efficiency and Environmental Considerations

According to data from the Lawrence Berkeley National Laboratory on laboratory ventilation, stainless steel fume hoods that are compatible with VAV actively change the exhaust volume based on the position of the sash. This can cut energy use by up to 60% compared to systems that use a constant volume. A lot of standard hoods use fixed-volume exhaust, which wastes conditioned air all the time. Also, stainless steel can be recycled in its entirety when it has reached the end of its useful life. This provides buying teams with a solid environmental reason to justify capital expenditures.

Practical Considerations for Procurement and Installation

Being able to choose the right type of hood is only one part of the buying process. Installing the equipment correctly, getting the spot ready, and the supplier's skills can all affect how well it works from the start.

Matching Hood Type to Application Requirements

Facilities that work with radioactive isotopes, volatile organic compounds, or active pharmaceutical ingredients should ask for structures made of stainless steel and 316L liners on the inside. Standard phenolic or fiberglass models can work in general chemistry classroom rooms or low-frequency testing areas where money is tight. The main question is whether the treatment leaves behind chemical residue that meets standards for cleaning at the audit level.

Installation and Compliance Challenges

For a ventilation hood to be installed in a cleanroom, the mechanical, electrical, and plumbing teams must work together. Youken's models have flexible pipe plans for connecting water, power, and gas. This makes it easier to connect the unit to cleanroom equipment that is already in place. Professional installation also checks that the face velocity is set to between 80 and 100 feet per minute at the working window height, as required by ASHRAE 110, before the unit is put into service.

Custom Fabrication and Bulk Procurement Options

Youken makes units in three standard widths: 1200 mm, 1500 mm, and 1800 mm. They also do OEM production for customers who need non-standard sizes or built-in features like sinks, gas valves, or electrical plugs. Because stainless steel can be welded, these additions can be made without damaging the protected inside. When you buy a lot of stainless steel fume hoods from the same company, the cost per unit goes down, and the material certificates are always the same across a system with many units.

Market Overview and Supplier Insights

Grand View Research says that the global market for laboratory furniture was worth about USD 4.8 billion in 2023. Products made of stainless steel fume hoods were growing in the pharmaceutical and life sciences markets. Material test certificates (MTCs) confirming AISI 304 or 316L composition, surface roughness reports (Ra ≤ 0.8 µm for cleanroom-grade units), ASHRAE 110 containment test results, and ISO 14644 compatibility statements should be the first things that procurement teams ask for when they are evaluating suppliers. Luoyang Youken Laboratory Equipment Co., Ltd. has 100 professional engineers working out of a 50,000 m² factory and is certified by ISO, CE, SEFA, and SGS. These licenses directly back up the document packages that GMP auditing teams need for QA and verification. Material traceability and delivery reliability within tight production shutdown windows have been named as the main reasons why clients in pharmaceutical parks across Asia and Southeast Asia have bought from the same company more than once.

Making the Final Decision: Which Fume Hood Is Better for You?

The answer is that it depends on your use, your legal responsibilities, and the total cost of ownership over the life of the tools.

When to Choose a Stainless Steel Hood

A stainless steel fume hood model is what you need if your facility follows GMP, FDA CGMP, or ISO 14644 rules, works with corrosive or clean materials, or plans to look over audit paperwork. The longer service life, lower frequency of surface repair, and lower audit risk more than make up for the higher initial cost.

When a Standard Hood May Suffice

A normal epoxy or fiberglass hood is a cheaper way to keep people safe in places like schools, low-frequency analysis labs, and places where chemicals are only present in water-based solutions.

Total Cost of Ownership

When you buy it, a regular hood might cost 30–50% less. In regulated environments, on the other hand, the costs of surface wear, panel replacement, and audit repairs can erase that gap in three to five years. With regular maintenance, stainless steel units from a reputable stainless steel fume hood supplier can last for more than 15 years.

Conclusion

Stainless steel fume hoods are better than regular models in every way that matters in a regulated lab: they are more resistant to chemicals, easier to clean, safer in case of fire, come with compliance paperwork, and last longer. Standard hoods are still useful in general-purpose or low-budget settings where GMP-level performance is not needed. For companies that make medicines, biotech products, food processing equipment, and medical devices, the proof is clear: stainless steel protects both the product and the audit record. If you match your specification to your legal risk, it's easy to make your choice.

FAQ

What is the difference between 304 and 316L stainless steel in a fume hood?

This type 304 is good for most lab settings. Type 316L adds molybdenum, which stops pitting caused by chlorides. This is an important trait to have when cleaning products or process media contain chlorides. 316L is the best standard for pharmaceutical cleanrooms and sterile processing areas.

How do I verify that a supplier is not substituting 304 for 316L?

Ask a third-party laboratory that has been approved to give you a material test certificate (MTC). The MTC should confirm the alloy's composition by giving a percentage. Manufacturers with a good reputation, like Youken, include this paperwork with every order.

What face velocity should I specify for safe operation?

At normal working window height, ASHRAE 110 says 80 to 100 feet per minute (0.4 to 0.5 m/s). Every year, the system is checked to make sure it stays in this range even when building forces change.

Can stainless steel hoods be used for perchloric acid applications?

Standard stainless steel units are not made to handle perchloric acid. To keep the perchlorate salt from building up and exploding, you need special layouts with built-in water-washdown systems and covered drain holes.

How long does installation typically take in a cleanroom environment?

Installation time depends on how complicated the site is, but for a single unit in a cleanroom bay that has already been prepared, it usually takes one to two days, which includes connecting the pipes and calibrating the initial face velocity.

Get a Stainless Steel Fume Hood Quote from Uken Today

Uken sells GMP-grade lab ventilation equipment that comes with full material certification, ASHRAE 110 containment data, and ISO/CE/SEFA compliance paperwork. Our stainless steel fume hoods are available in three basic widths, and we can also make them to order for OEM and large-volume jobs. If you need a design sheet, material certificates, or a project quote, please email our engineering team at service@ukenlab.com or WhatsApp: +8615102909133. Let us help you feel good about your next audit.

References

1. ASHRAE. ASHRAE Standard 110: Method of Testing Performance of Laboratory Fume Hoods. American Society of Heating, Refrigerating and Air-Conditioning Engineers, 2016.

2. Scientific Equipment and Furniture Association. SEFA 8M: Recommended Practices for Metal Laboratory Furniture. SEFA Publications, 2019.

3. Grand View Research. Laboratory Furniture Market Size, Share & Trends Analysis Report. Grand View Research, 2023.

4. Lawrence Berkeley National Laboratory. Laboratories for the 21st Century: Best Practices for Energy-Efficient Laboratory Ventilation. U.S. Department of Energy, 2011.

5. U.S. Food and Drug Administration. Current Good Manufacturing Practice (CGMP) Regulations: 21 CFR Parts 210 and 211. FDA, 2022.

6. International Organization for Standardization. ISO 14644-1: Cleanrooms and Associated Controlled Environments — Part 1: Classification of Air Cleanliness by Particle Concentration. ISO, 2015.
