Fume Hood Key Functions Use Cases

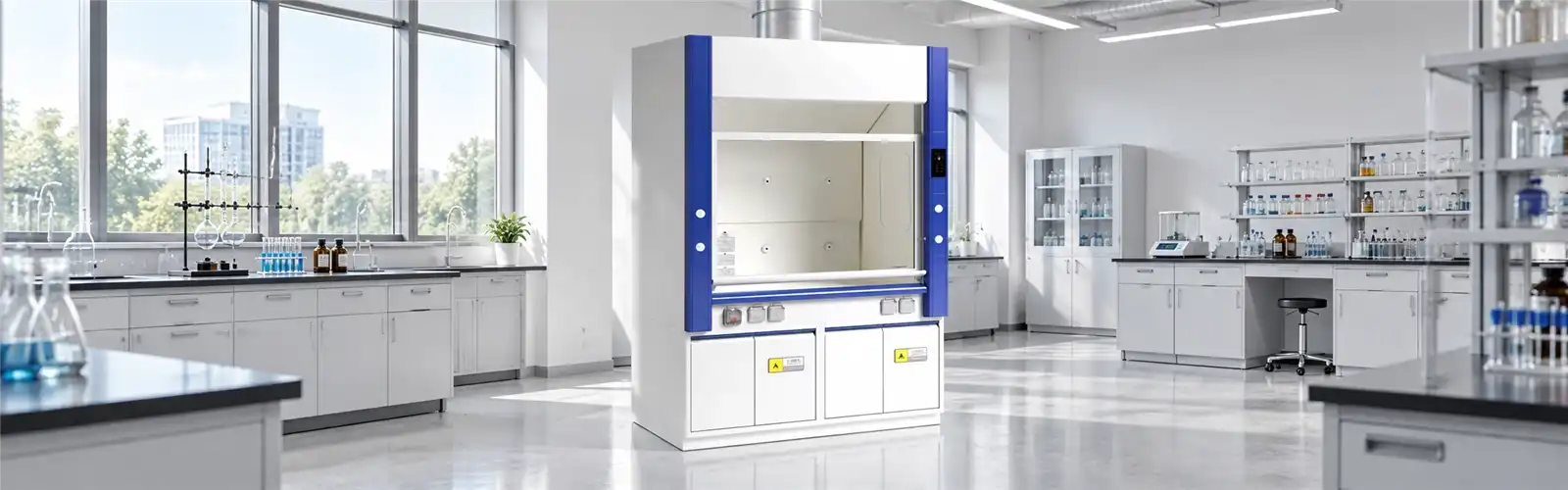

A lab fume cupboard is one of the most important safety devices in any working laboratory. It draws hazardous fumes, vapors, and airborne particulates away from the user's breathing zone through controlled negative-pressure airflow, then exhausts or filters them before they can cause harm. Whether you manage a school science room, a small medical testing lab, or a mid-size chemical R&D facility, understanding how a fume hood works—and which type fits your space and budget—directly affects daily safety and long-term compliance.

Understanding Fume Hoods – Core Functions and Safety Standards

Understand what a fume hood does mechanically and the rules that guide its use are helpful before buying any air equipment.

How Airflow Containment Works?

According to ASHRAE 110-2016 standards, the sash opening of a fume hood should always let in a steady flow of air, usually between 0.3 m/s and 0.5 m/s (60–100 fpm). With this face velocity, dirty air is pulled into the cage and away from the user. Inside the cabinet, an improved dual-baffle system keeps harmful vapors from building up in dead zones.

Key Safety Standards to Know

For buying things, ASHRAE 110-2016 (performance testing), EN 14175 (European standard), and SEFA 1 (equipment and furniture guidelines) are the three most important standards. Face velocity and containment performance must also be certified at least once a year or whenever the HVAC system goes through a big change.

Ducted vs. Ductless Models

When working with a lot of volatile chemicals, you need a ducted fume hood that sends all the exhaust air outside the building. Ductless models circulate air through carbon or HEPA filters and work well for chemical applications that are light and well-defined. For ductless units to keep working, filters need to be managed very carefully over their entire life. For general laboratory use, ducted setups are better.

Selecting the Right Fume Hood for Your Laboratory

Picking the wrong cabinet loses money and increases the risk of not following the rules. A structured review method keeps both of them safe.

Criteria That Matter Most

Space, airflow, and certification of a lab fume cupboard should be at the top of every shortlist. Before you compare prices, here are the main things you should look at:

• Dimensions and footprint: The standard sizes, L1200×D850×H2350, L1500×D850×H2350, and L1800×D850×H2350 mm, cover most bench configurations without taking up too much floor space.
• Material and surface treatment: A frame made of 1.0 mm cold-rolled steel with an epoxy powder coat lasts much longer than lighter-gauge options when it comes to corrosion, regular cleaning, and changes in temperature.
• Certifications: ISO, CE, SEFA, SGS, and CQC compliance means that the unit passed testing by a third party, not just internal checks.

When it comes to buying, these factors directly address the two biggest problems: limited floor space and tight budgets that still need to be in line with regulations.

Balancing Cost Against Total Ownership

Price at first glance is just one part of the picture. Over the course of three to five years, a cheap unit with bad baffle design will cause your power bills to go up because it will waste energy by pulling in more air than it needs to. Steel that is epoxy powder-coated also lowers the cost of coloring and patch repairs. When the price of two units is about the same, the one with verified certifications and long-lasting construction will almost always have a lower total cost of ownership.

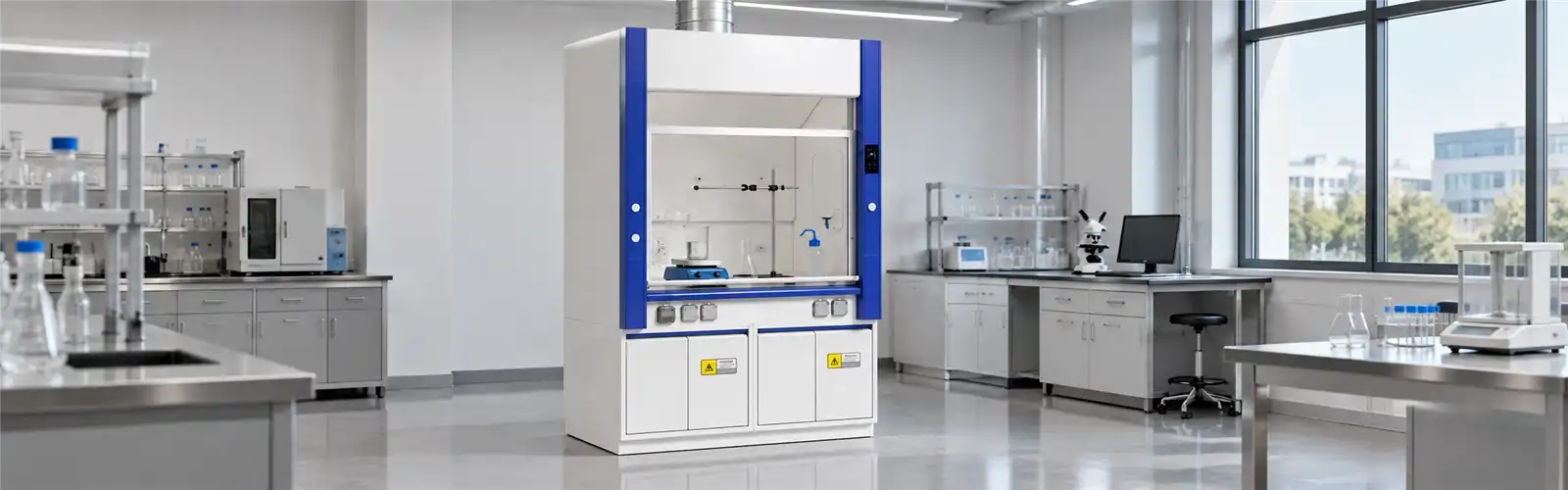

Compact Design for Space-Constrained Labs

Wide-footprint tools can't always fit in school labs, hospital testing rooms, and small R&D areas. When you use vertical sash configurations, you can keep the bench surface for instruments and daily work. Because of modular size, the buying team can choose one width for a small classroom and a bigger unit from the same product line for the chemistry prep area.

​

Installation, Maintenance, and Operational Best Practices

Even if you choose the right fume hood, it won't work well if it's not installed or kept properly.

Site Preparation and Installation

The connection for the exhaust duct must work with the HVAC system in the building. Cross-drafts from doors, windows, and air conditioning vents change the speed of the face and make it harder to control. A simple, low-cost way to protect performance before the unit is even turned on is to move the cabinet away from areas with a lot of foot traffic and HVAC diffusers.

Routine Maintenance Checklist

The most common safety problems can be avoided with regular upkeep. A practical schedule includes:

• Annual certification testing as required by OSHA and NFPA 45 to make sure airflow and container integrity.
• Monthly visual inspection of the sash, baffle slots, and airflow monitor display once a month to see if there are any blockages or alarms.
• Immediate investigation if the face velocity alarm goes off, you should look into it right away. Common reasons are an HVAC problem, a sash that is raised above the approved 18-inch (450 mm) working height, or stored items blocking the rear baffles.

Following this plan keeps the cabinet in compliance and makes it last a lot longer.

What Not to Do Inside a Fume Hood?

When chemical bottles are kept inside a lab fume cupboard all the time, the baffles get in the way of the airflow, which creates turbulence that lets vapors escape toward the operator. Long-term storage is done in special cabinets with vents for chemicals. The area around the fume hood should stay clear unless work is being done inside it.

Use Cases and Benefits of Fume Hoods Across Industries

There are a lot of places where Fume Hoods are used because airborne chemical contact is a danger in almost all applied science fields.

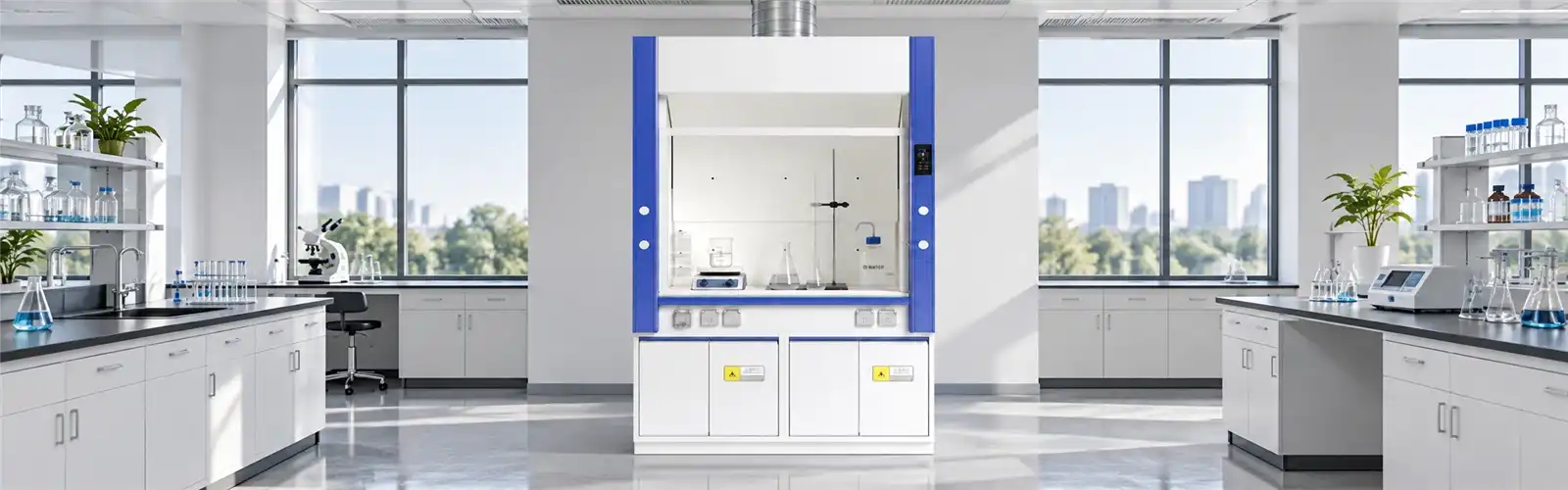

Educational and Medical Testing Laboratories

Two things that school chemistry labs and hospital testing rooms have in common are that there are a lot of different people using the space and there is mild chemical exposure. A powder-coated steel surface protects against chemical marks and scratches from people who aren't very good at handling steel. There is a small size that fits in rooms that weren't meant to be labs in the first place. This includes most high school science rooms and many clinic testing areas in the US.

Pharmaceutical and Chemical R&D

Even a short break in control during the synthesis of an active medicinal ingredient can be harmful to both the operator's health and the purity of the batch. Precision airflow keeps the face speed constant even when the sash moves quickly, which keeps the powerful compounds inside the enclosure during the whole process. Chemical analysis centers that test hydrocarbons or strong mineral acids need electrical parts that can withstand explosions. Asking for these parts when the equipment is being bought will save you a lot of money later on when you need to make changes.

Industrial Quality Assurance Facilities

QA techs who test concentrated chemicals every day need a cabinet that works continuously during multiple shifts. A better barrier design gets rid of the dead zones at the sides and back walls where toxic vapors build up. This keeps the workplace safe and in line with OSHA standards without having to constantly adjust the airflow.

​

Common Challenges and Troubleshooting in Fume Hood Use

Even equipment that has been well taken care of can have problems. If you know the early warning signs, you can keep small problems from turning into safety incidents.

Airflow Irregularities

If the face velocity drops below 0.3 m/s, it's likely because one of three things: the sash is raised above its legal height, the HVAC system has lost air, or the back baffles are blocked. Most alerts go away within minutes of checking these three conditions in this order. Work inside the box has to stop until the airflow meets the standards.

Noise and Energy Cost Management

Fume hoods that use fixed exhaust rates use a lot of energy. According to study from the Lawrence Berkeley National Laboratory, variable air volume (VAV) systems use 30–50% less energy than constant air volume (CAV) designs because they change the exhaust based on the position of the window. Noise from the exhaust fan that is louder than 65 dB is another sign that the blower may need new bearings or to be balanced.

Avoiding the Most Common Installation Errors

The most common mistake during installation is putting the fume hood next to a door that is often opened. Cross-currents are made by door drafts that quickly go over the control barrier. This can't happen at all if you go over the checklist before final positioning.

Conclusion

A fume hood is more than just a ventilation box; it's an investment in safety that protects people, makes sure rules are followed, and makes a lab last longer. Choosing an appropriately qualified, space-efficient, and long-lasting unit from the start lowers risk and keeps you from having to buy the same thing over and over again. The right cabinet is available at a price that most institutions can afford, whether they need a small lab fume cupboard to fit into a small classroom or heavy-duty shelters for chemical analysis. The sections above give you the criteria you need to confidently weigh your choices before you send a single request.

FAQ

What is the difference between a fume hood and a biosafety cabinet?

By drawing air in, a fume hood saves the person working inside from chemical fumes and vapors. Using HEPA filters and recirculated airflow, a biosafety cabinet keeps both the user and the sample from getting biologically contaminated. They deal with different kinds of risks and can't be used together.

How often should a fume hood be inspected?

Full approval is needed by OSHA and NFPA 45 at least once a year or after any major changes to the HVAC system. Between formal certifications, it's a good idea to look at the sash, airflow monitor, and baffle clearance once a month.

Can I store chemicals inside a fume hood permanently?

No, storing something permanently stops the airflow through the baffles and makes turbulence that can push vapors toward the operator. For bottles and chemicals that aren't being used right now, keep them in a separate cabinet with vents.

What do the standard dimension options mean for procurement?

Most bench plans can be fit into one of the three common widths: 1200 mm, 1500 mm, or 1800 mm. Narrower units are better for rooms with limited space, while wider units can fit bigger appliances. All of them are the same depth and height, which makes planning the ducting and installation easier in a building with many rooms.

​

Request a Quote from Uken — Certified Lab Fume Cupboard Supplier

Uken, which is run by Luoyang Youken Laboratory Equipment Co., Ltd., sells certified lab fume cupboards made of 1.0 mm cold-rolled steel with an epoxy powder-coat finish. Each unit is certified by ISO, CE, SEFA, SGS, and CQC, comes in professional packaging, and can fit in small labs without sacrificing safety. You can email service@ukenlab.com or WhatsApp +8615102909133 with your floor plan and need to get a quote right away.

References

1. American Society of Heating, Refrigerating and Air-Conditioning Engineers (ASHRAE). ASHRAE 110-2016: Method of Testing Performance of Laboratory Fume Hoods. ASHRAE, 2016.

2. Scientific Equipment and Furniture Association (SEFA). SEFA 1-2010: Recommended Practices for Laboratory Fume Hoods. SEFA, 2010.

3. National Fire Protection Association. NFPA 45: Standard on Fire Protection for Laboratories Using Chemicals. NFPA, 2019.

4. Occupational Safety and Health Administration (OSHA). Laboratory Safety Guidance. U.S. Department of Labor, 2011.

5. Lawrence Berkeley National Laboratory. Fume Hood Energy Efficiency: A Guide for Laboratory Managers. U.S. Department of Energy, 2003.

6. British Standards Institution. BS EN 14175-3:2019: Fume Cupboards — Type Test Methods. BSI, 2019.
