How to Size a High Temperature Fume Hood?

Sizing a high temperature fume hood is one of the most important choices an EHS or equipment manager can make. Choose a unit that’s too tiny, and you risk not containing the fumes enough, exposing the operator, and failing safety audits. Choose one too big, and you're wasting energy and money. The proper size balances your thermal load, workspace footprint, airflow needs, and regulatory requirements. This manual will help you through the steps to create an informed, audit-ready purchase choice.

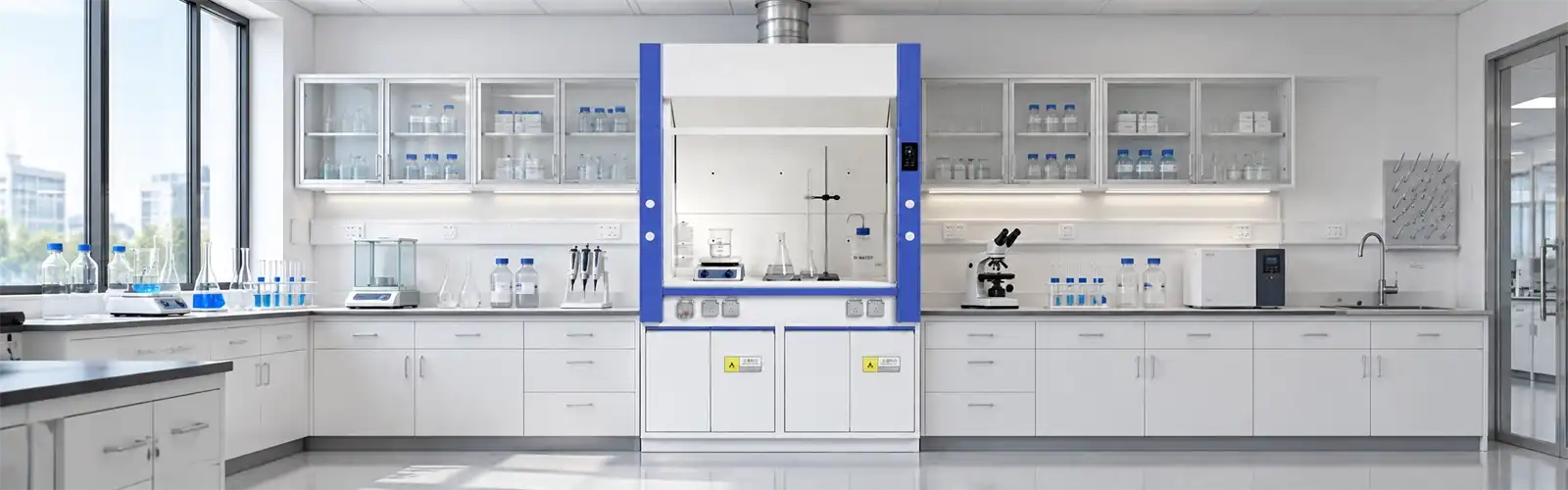

Understanding the Basics of High-Temperature Fume Hoods

To help you pick the right sizes, it's helpful to know what makes a thermal-rated enclosure different from a normal lab hood.

What Makes It Different From a Standard Hood

A regular fume hood is for dealing with chemicals in a routine situation. Another kind of hood is a thermal containment hood. This hood must be able to withstand temperatures within the hood over 400°C without cracking, fracturing, or deforming. They are built from diverse materials and assembled in quite different ways.

Core Construction That Enables Thermal Resistance

For the Luoyang Youken case, units are constructed from ≥1.0mm laser cut steel plate that has been pickled, phosphated, and coated with an epoxy electrostatic powder> 70 μm thick. The interior is lined with 5mm antifungal board which does not corrode. Most cabinets can't take high heat because they shatter and let in toxins. This blen,d however, prevents these things from occurring.

Key Operational Parameters to Know Before Sizing

There are 3 things you have to know before you can size anything. What is the greatest temperature the process can run at? What is the heat output of the gear in kilowatts? What are the compounds in the fumes that it makes? These values also indicate how much interior room is required, the speed at which items may move, and the amount of covering necessary.

Key Factors to Consider When Sizing a High Temperature Fume Hood

The issue of size involves a number of related aspects that must be considered. Rush through any one of them, and holes will appear that show up on inspections or, worse, an incident.

Heat Source Intensity and Equipment Footprint

The inside dimensions are restricted at the bottom by the heat output of your furnace, reactor, or digesting device. A 5 kW muffle furnace requires sufficient space on all sides to prevent radiant heat from prematurely damaging the liner. Provide 150mm space on each side of the device's physical footprint for operating purposes.

Airflow Rate and Exhaust Capacity

ASHRAE 110 and EN 14175 require the face velocity at the sash opening to be maintained at about 0.5 m/s. High-temperature operations, however, may produce thermal buoyancy, which may interfere with laminar flow. Your exhaust volume must overcome this upward airflow. To calculate exhaust flow in m³/h, multiply the sash opening area by the desired face velocity, then apply a thermal buoyancy adjustment factor of 15 to 25% dependent on your process temperature.

Workspace Ergonomics and Compliance Clearances

Operator reach depth, sash travel height, and side-wall clearance impact usable interior space. NFPA 45 and OSHA 1910.1450 provide clearance requirements between the heat-generating equipment and the high temperature fume hood walls. Consider them in your width and depth choice before you finally decide on measurements.

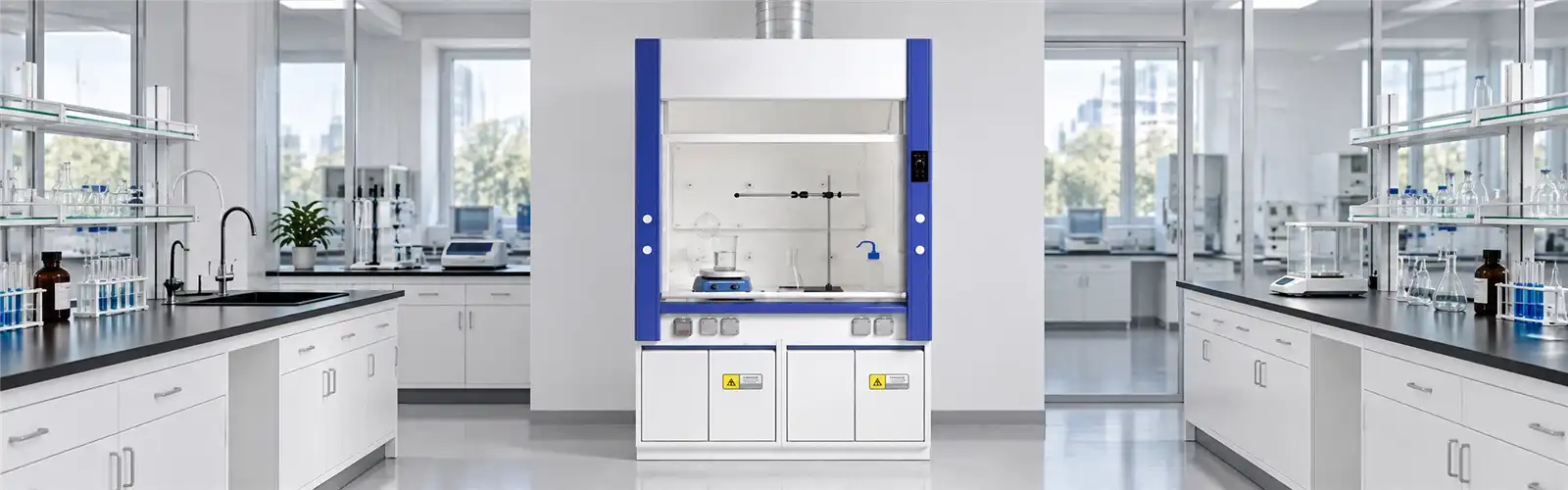

Step-by-Step Process to Size a High Temperature Fume Hood

Teams of engineers and people who buy things can work together to follow this useful order.

Step 1 — Define Your Process Requirements

Write down the equipment's size, the chemicals' names, the highest temperature, and the amount of pollution they release. This is what your size plan is made of. Keep track of whether perchloric acid is used when acid is broken down at temperatures close to boiling. NFPA 45 says that an extra wash-down system must be used if that's the case.

Step 2 — Calculate Required Airflow

By increasing the opening area of the sash by the face speed (3600 m/s) and then adding your thermal buoyancy correction factor, you can find the airflow (m³/h). If your window opens to 0.6 m² at 0.5 m/s and the fix is 20%, you need at least 2,160 m³/h of exhaust capacity.

Step 3 — Select Physical Dimensions

Youken Luoyang comes in three standard sizes: L1200xD850xH2350mm, L1500xD850xH2350mm, and L1800xD850xH2350mm. Fit the size of your tools plus enough room for it to turn around. The 850 mm depth is big enough for most bench-scale burners and reactors. At 2350 mm tall, the exhaust duct has enough room for processes that need to be done at high temperatures. If your process makes more than 10 kW of heat all the time, the 1800 mm width is usually the best choice for spreading the airflow.

Step 4 — Confirm Material and Certification Alignment

Check to see if the unit is certified by ISO, CE, SEFA, or SGS. Ask for material test reports that confirm the thickness of the coating (> 70 μm) and the specifications for the inner lining. If the building needs to go through EHS audits or workplace health inspections, these papers cannot be changed during the vendor qualification step.

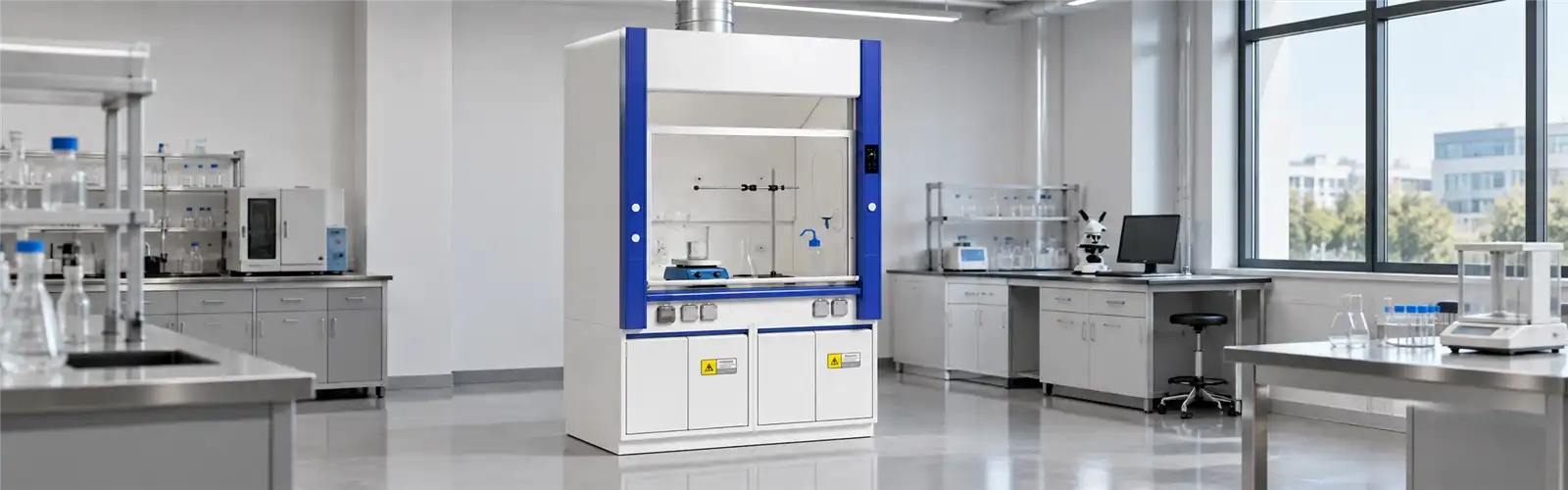

Comparing High Temperature Fume Hoods: What Size Suits Your Application?

Each laboratory application has various needs in terms of size, temperature and chemical resistance. The size of the hood will depend on the kind of equipment utilized, working area needed and operational circumstances.

• Metallurgical and materials research: 1500 mm or 1800 mm widths might be useful for muffle furnaces or glass melting applications. When picking a hood, pay attention to heat exposure, airflow distribution, structural load capacity and heat resistance of the inside lining.
• Pharmaceutical reactors at bench scale: 1200 mm or 1500 mm widths may be appropriate for tiny reactors and catalyst preparation set-ups. An internal liner compatible with chemicals and an easy-to-clean work surface can accommodate regular cleaning and batch changeovers in GMP-regulated situations.
• Petrochemical fractional distillation: Applications involving hot flammable vapors need careful consideration of ignition risk, exhaust performance and limitations of the material temperature. Youken’s synchronous belt sash-lifting mechanism is designed to encourage smooth sash operation and assist maintain the desired operating position for laboratory work.

Best Practices for Maintenance and Longevity of Properly Sized High Temperature Fume Hoods

As long as it's taken care of, even a machine that is the right size will work well.

Routine Inspection Schedule

Check the belt lift mechanism, springs, and sash glass every month. Tempered glass with rubber buffer systems doesn't get micro-fractures from sudden changes in temperature, but regular glass can when they happen over and over again. Every time you do a review, look at the sash to see how strong it is and make sure the lift works properly.

Cleaning and Surface Maintenance

The outside is epoxy electrostatic powder-coated, and the inside is made of corrosion-resistant cloth that is resistant to acids and easy to clean. Clean the inside with a damp cloth after each use of harsh chemicals. It takes longer for the liner to break down when waste builds up, and airflow can slow down even near the baffle system.

Reassessing Size as Processes Evolve

If your company gets new equipment or changes how it deals with heat, you should check the current unit again to make sure it still meets the original size needs. More and more, EHS inspectors want proof that the ventilation capacity fits the way things are now, not how they were when the hood was first put.

Conclusion

You can keep your production schedule, protect your workers, and pass your audits if you make sure your thermal high temperature fume hoods are the right size. But not the other way around. Start with the temperature, size, and movement requirements of the process and work your way out to a real measurement. Before you send out a purchase order, make sure that the material is certified and meets the needs. You can be sure that the unit meets all the requirements and will last in the conditions that yOur Team works in every day if it is built to Luoyang Youken's all-steel, epoxy-coated building standard.

FAQ

1. What face velocity should a high-temperature hood maintain?

A lot of standards, like ASHRAE 110 and EN 14175, say that the sash opening should have a speed of 0.5 m/s. There needs to be an extra 15–25% of thermal buoyancy change on top of this standard for high-heat processes so that containment works well.

2. Can standard PVC ductwork connect to a high-temperature unit?

Not at all. These units need ducts made of stainless steel or PVDF because they are very hot. Because PVC will break down, there is a risk of fire, and you are not following the rules.

3. What certifications should I require from my supplier?

You should ask for paperwork from at least ISO, CE, SEFA, and SGS.

4. Is the 850mm depth sufficient for most furnace equipment?

Yes, for furnaces and reactors on a bench that are no more than 600 mm deep. Leave at least 150 mm of space around all sides. If you need a custom depth setup for a bigger piece of equipment, ask your seller for one.

5. How often should the synchronous belt lift be serviced?

Every six months, check the belt system and grease it if it is used often. Take it down to every three months if there are a lot of cycles so that wear on the parts doesn't mess up the sash control.

Get a Sizing Consultation From Uken — High Temperature Fume Hood Supplier

Your process conditions are specific, and your hood selection should reflect that. Uken by Luoyang Youken supplies industrial-grade high temperature fume hoods built to ISO, CE, SEFA, and SGS standards, with three standard sizes and custom configurations available for bulk orders. Contact our engineering team today for a free sizing consultation.

📧 Email: service@ukenlab.com

📱 WhatsApp: +8615102909133

References

1. American Society of Heating, Refrigerating and Air-Conditioning Engineers. ASHRAE 110: Method of Testing Performance of Laboratory Fume Hoods. ASHRAE, 2016.

2. European Committee for Standardization. EN 14175: Fume Cupboards — Part 3: Type Test Methods. CEN, 2019.

3. National Fire Protection Association. NFPA 45: Standard on Fire Protection for Laboratories Using Chemicals. NFPA, 2019.

4. American Industrial Hygiene Association. Laboratory Ventilation: AIHA Guideline 2. AIHA Press, 2020.

5. Occupational Safety and Health Administration. OSHA Laboratory Standard 29 CFR 1910.1450: Occupational Exposure to Hazardous Chemicals in Laboratories. U.S. Department of Labor, 2021.

6. Scientific Equipment and Furniture Association. SEFA 1: Recommended Practices for Laboratory Fume Hoods. SEFA, 2020.
