Chemistry Lab Island vs Wall Bench: Which Laboratory Layout Is Better?

Choosing between a laboratory island bench and a wall-mounted configuration ultimately depends on your facility's workflow demands, spatial constraints, and collaboration needs. Island benches excel in environments requiring multi-user access and flexible equipment placement, providing 360-degree accessibility that enhances team coordination and operational efficiency. Wall benches, conversely, optimize limited floor space and simplify utility hookups, making them ideal for smaller labs or those with standardized processes. Both configurations offer distinct advantages, and the optimal choice aligns with your specific research activities, safety protocols, and long-term scalability goals.

Understanding Laboratory Island Benches and Wall Benches

What Defines a Laboratory Island Bench?

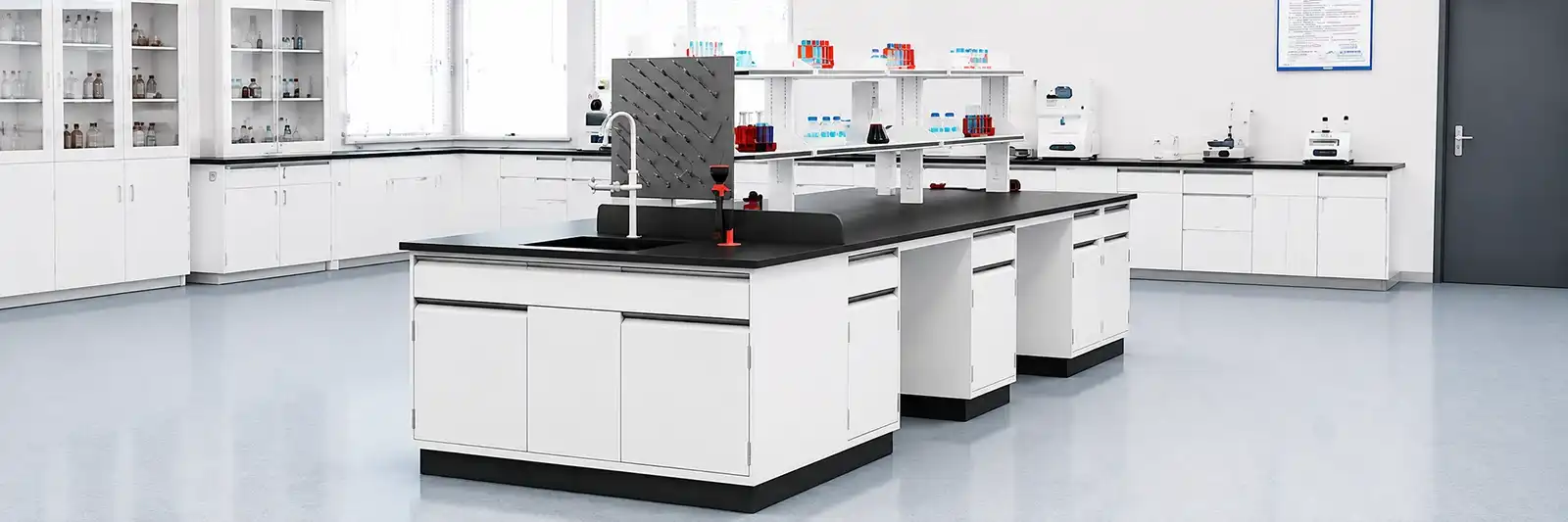

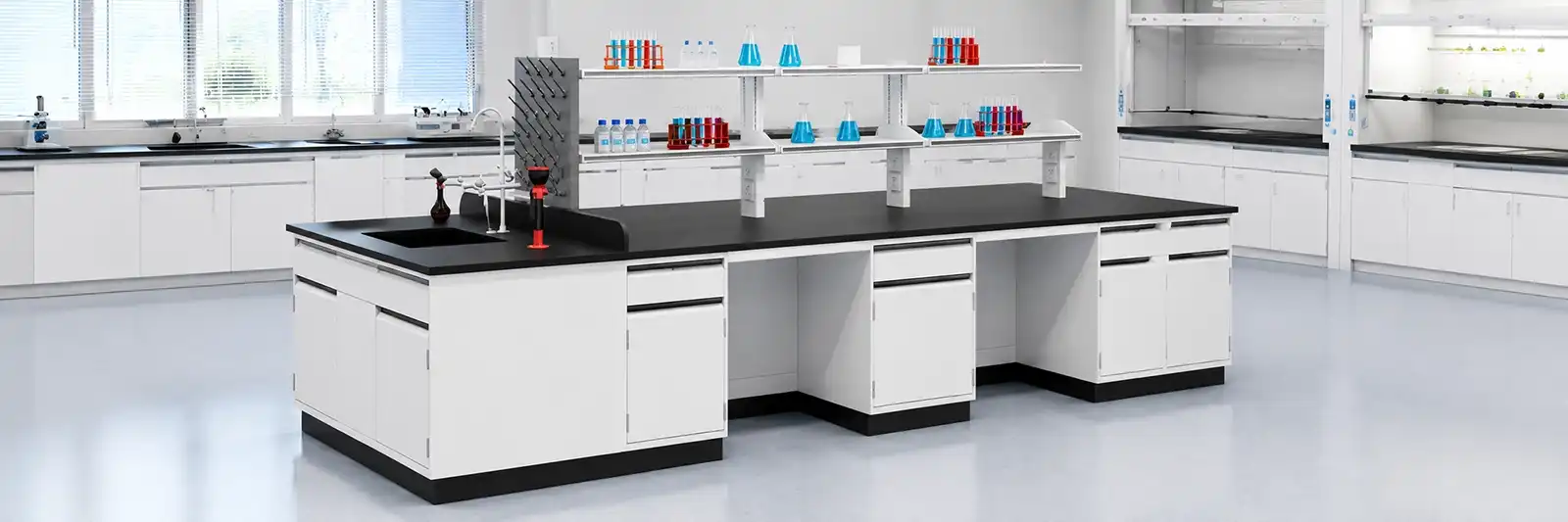

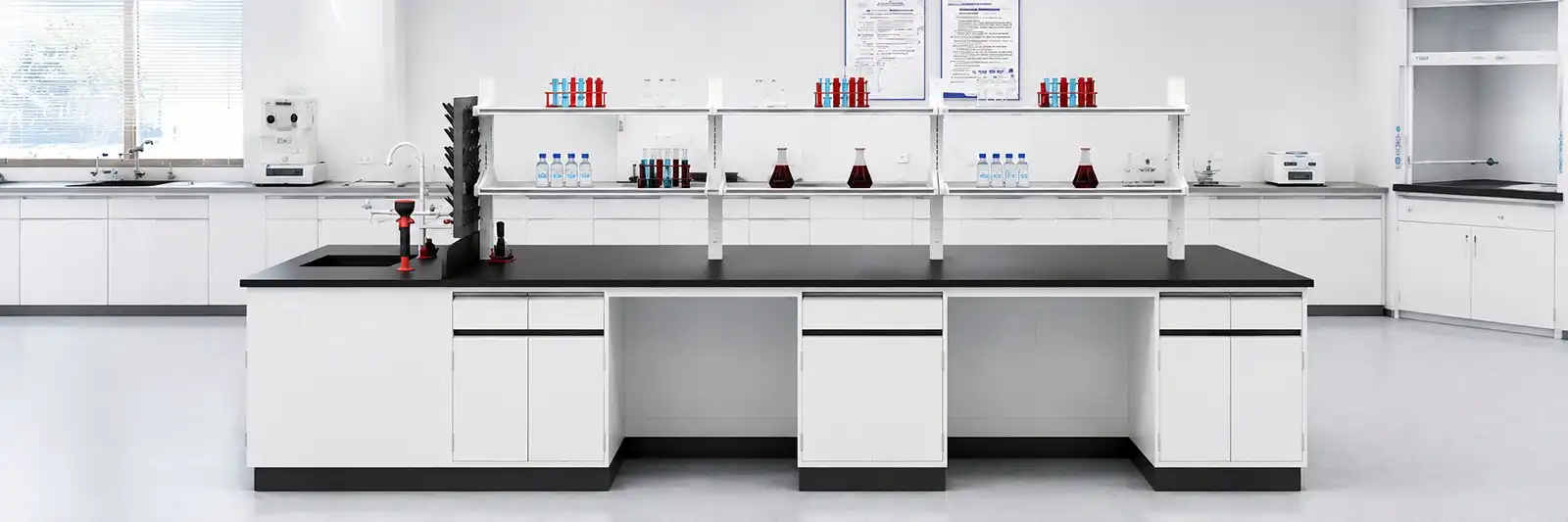

A laboratory island bench is a freestanding desk that is put in the middle of the lab so that it can be reached from all sides. These units are usually built to last with strong materials like phenolic resin countertops or stainless steel frames that can handle heavy instruments and a lot of chemical contact. The central location separates the workspace from the building's edges, which improves traffic flow and makes it possible for water, gas, and electricity service carriers to be installed above the workspace. This set-up allows technicians to work together on research projects at the same time, using shared equipment to get more done and talk to each other more clearly.

Core Characteristics of Wall Benches

Wall benches attach directly to the lab walls, making the most of the usable floor space and making it easier to get to fixed utility lines. Most of the time, these designs only allow entry from one side, which makes them good for sequential workflows or individual task stations. The placement around the perimeter makes water and electrical installations easier because the connections go through walls next to each other instead of having to deal with complicated equipment above. Most wall benches have storage for reagents and shelves that hang from the ceiling. This makes use of vertical space to keep commonly used items close at hand and the work area clean and organized.

Material and Construction Considerations

When building modern lab furniture, durability and chemical resistance are given top priority. Plates of 1.00mm to 1.5mm cold-rolled steel that have been treated with acid washing, phosphating, and epoxy resin electrostatic spraying are used to make high-quality units. This multiple-layer defense keeps it safe from strong acids, bases, and chemical solvents that are common in chemistry rooms. The different types of countertops include clay, 12.7 mm solid core physical and chemical boards, and more. Each type has its own advantages when it comes to heat resistance, mark resistance, and ease of cleaning. Shipping costs and installation difficulty are affected by whether a structure is fully assembled or knocked down. Modular designs are becoming more popular because they are flexible and cost less to ship.

Comparative Analysis: Chemistry Lab Island vs. Wall Bench

Space Utilization and Workflow Efficiency

Central laboratory island bench configurations change floor plans by making natural circulation paths around the workstation, which cuts down on traffic jams during busy times. This layout lets more than one person use it at the same time, which makes it twice as efficient as single-access arrangements. Researchers can strategically place their equipment on the large work surface that can be reached from all sides. This keeps them from having to move around too much and keeps them from getting tired during long experiments. Wall seats take up less floor space, but they direct traffic along straight lines that can get crowded when multiple people need to use instruments or storage areas that are placed along the same wall section at the same time.

Flexibility and Customization Potential

Modular laboratory island bench systems are very flexible because the sizes and arrangements of their parts can be changed to fit any need. Standard layouts include single cabinets (470x520x830mm), double cabinets (900x520x830mm), water tanks (1440x720x830mm), and specialised drawer units. These can all be changed as study needs change. Because island plans can be used on both sides, they can be set up so that one side holds analytical tools and the other side is used for prep work or paperwork. Wall benches usually have more standard plans because they have to work with the way the building is set up. However, they make up for it with built-in storage and utility panels that keep important services close at hand without taking up too much space in the work areas.

Safety and Ergonomic Advantages

Island bench designs are better for ergonomics because they let researchers position themselves correctly in relation to the equipment. This means that they don't have to reach or twist awkwardly, which can lead to repetitive strain injuries. The central location makes it easier to put emergency equipment like eyewash stations and fire extinguishers in key locations that can be reached from many directions. This speeds up response times during emergencies. When used in places that need Fume Hoods, wall benches are great because the placement around the edges naturally lines up with exhaust pipes, making it easier to route air flow. When planned correctly, both layouts support safety protocols, but island layouts give you more choices for where to put emergency tools and how to sit comfortably.

Utility Integration and Infrastructure Requirements

For water, gas, and electricity to get to a center island workstation without creating trip risks, service carriers must be placed above or below the floor. This investment in infrastructure raises the initial costs, but it makes it easier to move service points around and change their locations in the future. Wall chairs use the building's existing utilities to route links through walls next to each other with few structural changes. Wall configurations are good for repairs or jobs that need to stay within a budget because they are easier to install and cost less up front. Moving wall bench utilities, on the other hand, needs more changes than changing the overhead service drops on island systems.

Procurement Insights: Choosing the Right Laboratory Bench for Your Chemistry Lab

Budget Considerations and Total Cost of Ownership

When considering bench configurations, procurement managers need to look at both the original costs of buying the equipment and the long-term costs of running it. Due to their complicated power infrastructure and need to be able to stand alone, laboratory island benches usually require a bigger initial investment. Depending on the level of customisation, they can cost anywhere from 15% to 30% more than similar wall-mounted units. The flexible design, on the other hand, lets you add on or change things around without having to replace the whole thing, which could lower the overall cost over its lifetime. Wall benches are cheaper to install because they make it easier to connect utilities. However, because they aren't very flexible, they may need to be replaced completely when the building changes or the way work gets done, which will cost more in the long run.

Supplier Reliability and Certification Standards

When you choose certified manufacturers, you can be sure that they follow international quality standards like ISO 9001, ISO 14001, and ISO 45001, as well as local standards like CE marking for European markets. Reliable suppliers give detailed technical information that includes specifications for load capacity, test results for chemical resistance, and material safety data sheets that are needed to follow the rules. Manufacturers that offer both OEM and ODM services can meet the specific needs of each project, such as creating custom color schemes that match an institution's brand or creating drawer configurations that work with certain instruments. With delivery times ranging 20 to 40 days, you need to plan ahead, especially for big building installations or project goals that need to be met quickly.

Installation Complexity and Maintenance Requirements

To install an island bench, plumbers, electricians, and HVAC experts must work together with other tradespeople to connect the overhead utilities. This requires careful project management and longer installation windows. The structure that stands alone needs to be carefully leveled so that it doesn't wobble when heavy equipment is put on it. Tolerances must usually be kept within 2mm along the whole length. Standardized mounting methods and easy utility hookups speed up the installation of wall benches, cutting down on labor costs and facility downtime. Maintenance schedules aren't too different for each configuration; in both, the drawer mechanisms, cabinet door hinges, and integrity of the countertop need to be checked on a regular basis. Epoxy-coated steel frames have smooth, flawless surfaces that make cleaning easier and help healthcare and pharmaceutical companies follow GMP guidelines.

These useful ideas help procurement teams find solutions that balance short-term budget limitations with the needs for operational performance and the ability to adapt in the future. Getting suppliers involved early in the planning process makes it easier to find ways to save money and improve functionality.

Real-World Applications and Case Studies

Pharmaceutical R&D Laboratory Enhancement

A medium-sized drug company recently changed the layout of their synthetic chemistry section from standard wall benches to a center island. The new setup made room for four researchers to work on parallel reaction optimization studies at the same time. Better teamwork cut down on the time it took to do an experiment from 12 hours to 8 hours. There were built-in vacuum lines and inert gas sources on the laboratory island bench, which could be reached from both sides. This meant that no time was wasted moving equipment. After the changes were made, surveys showed that top scientists working on long-term synthesis projects felt 35% more productive in their workspaces and had fewer complaints about repetitive motion.

Educational Institution Space Optimization

The number of students in a university's chemistry department was growing faster than the lab room available, so high-density plans were looked at. After looking at how people usually work, administrators chose modular island benches that could hold twice as many students per square meter as the existing perimeter arrangements. With the two-sided process, teachers could keep an eye on 24 kids at once and see what they were doing in every area. The modular structure made it easy to switch between organic chemistry labs that needed a lot of glassware and analytical sessions that focused on instruments, showing the flexibility that comes with well-designed island systems.

Quality Control Lab Wall Bench Success

A cosmetics company kept wall-mounted benches in their quality control area because they cared more about GMP compliance and cleanliness than about collaborative work. The layout around the perimeter made sequential testing easier, as samples moved from one place to another to go through normal analysis steps. Integrated overhead reagent shelving kept frequently used standards close at hand without taking up important bench space, and the wall-mounted design made the daily cleaning tasks needed between production runs easier. This setup worked best in controlled settings where process consistency and documentation are more important than the benefits of having multiple users work together.

Making the Final Decision: Which Layout Fits Your Lab Best?

Evaluating Your Laboratory's Unique Requirements

Before choosing the right bench layout, you should carefully look at the floor space you have, the height of the roof for overhead utilities, and the average size of a research team. Labs with three to four researchers working on projects together at the same time benefit most from laboratory island bench layouts that allow for 360-degree access and clear visibility of shared equipment. When space is limited and getting the most individual desks into that space is important, wall benches may be a better choice for facilities with standard, sequential processes. If you want to add on in the future, modular island systems can handle small additions better than fixed wall installations that need to be completely rearranged.

Weighing Mobility and Adaptability Options

Some manufacturers make semi-mobile island benches with locking casters that let you move them around occasionally while keeping them stable while you use them. In teaching labs where equipment arrangements change with the seasons, this mixed method works well. It also works well in research labs that are moving from one project phase to the next, which has different space needs. Stationary locations let big scientific tools carry the most weight and have the most rigid structures, but they limit your options. Wall benches are designed to stay in place, but modular cabinet parts make it possible to change the way storage and drawers are set up without having to do a lot of construction.

Essential Add-Ons and Integrated Features

Both versions allow the addition of specialized parts that improve usefulness. Island benches usually have a central sink with gooseneck faucets that can be reached from either side, eyewash stations that meet ANSI Z358.1 standards, and electrical raceway systems that distribute power without using cables that are attached to the surface. Overhead lighting tracks, pegboard accessory panels, and vertical storage boxes that are fixed on the wall all make wall chairs better. When choosing add-ons, give priority to those that solve known problems. For example, corrosion-resistant parts for labs that work with harsh chemicals, anti-static surfaces for putting together electronics, or special air for working with volatile compounds.

Conclusion

When properly matched to practical needs, both laboratory island bench and wall-mounted setups have been shown to work well. Even though they cost more and are harder to set up, island layouts are best for collaborative study spaces that need easy entry for multiple users, flexible equipment placement, and flexible utility integration. Wall benches make the best use of limited floor space, lower infrastructure costs, and support sequential processes and individual job stations well. When deciding which of these configurations to use, procurement teams should think about available space, how teams work together, budgetary constraints, and the need for long-term flexibility. Getting in touch with experienced lab furniture suppliers early on in the planning process makes sure that solutions are perfectly matched to both current needs and how the facility will change in the future.

FAQ

Which bench type offers better ergonomics for extended laboratory work?

Most of the time, laboratory island bench configurations are better for ergonomics because they allow researchers to place themselves best in relation to tools and materials by giving them 360-degree access. Being able to approach chores from different angles cuts down on the awkward reaching, bending, and long periods of sitting that can lead to musculoskeletal illnesses. Wall benches make it harder to use a single-sided approach, which means you might have to move around more often or reach farther to get to things on the far edge of deep countertops.

Can laboratory benches be customized for specific chemistry applications?

Reputable makers allow for a lot of customization to meet the needs of different workflows, toxic exposure profiles, and equipment interaction. Options include special countertop materials that don't react with certain solvents, custom cabinet layouts that can fit large equipment, built-in vibration isolation for sensitive scales, and colour-coded parts that make it easier to see what's what. OEM and ODM services allow for changes ranging from small changes to dimensions to completely custom designs that have to fit odd building requirements or process-specific needs.

What installation timeline should procurement teams expect?

Standard laboratory bench projects usually take 20 to 40 days from the time the order is confirmed until it is delivered. Installation can take an extra 3 to 10 days, based on how complicated the configuration is and the conditions of the building. Because overhead utilities have to be integrated and multiple trades have to work together, island bench installations take longer to complete on-site. Installation of wall benches goes faster because hanging and connecting utilities are made easier. Large-scale building furnishing projects that include more than one lab can benefit from phased installation plans that keep the project moving forward while minimizing the impact on operations.

Partner with Uken for Your Laboratory Island Bench Solutions

The Luoyang Uken Laboratory Equipment Co., Ltd. is an expert at designing custom lab furniture that works with the specific needs of research, biotech, and pharmaceutical facilities in the United States. Our modular laboratory island bench solutions are made of 1.00 mm cold-rolled steel and have an electrostatic epoxy covering that makes them very resistant to chemicals and able to hold more than 400 kg per square meter of weight. Our products are certified by CE, ISO 9001, ISO 14001, and ISO 45001, which means they meet the high quality standards that purchasing managers need for GMP-compliant settings. Our 100 skilled engineers offer full technical support from the initial layout creation to installation support, making sure that everything fits in perfectly with your current infrastructure. Email Our Team at ceo@ukenlab.com to talk about how our laboratory island bench solutions can help your facility be more efficient, safe, and flexible in the long term. As a laboratory island bench manufacturer with 30 years of experience, we offer custom solutions to scientific facilities all over the world.

References

1. American Society for Testing and Materials (ASTM). Standard Guide for Laboratory Furniture and Equipment. ASTM E1404-19, West Coshohocken, PA, 2019.

2. Scientific Equipment and Furniture Association (SEFA). Laboratory Furniture Recommended Practices. SEFA 8M-2016, Hilton Head, SC, 2016.

3. National Research Council. Prudent Practices in the Laboratory: Handling and Management of Chemical Hazards. National Academies Press, Washington, DC, 2011.

4. World Health Organization. Laboratory Quality Management System: Handbook. WHO Press, Geneva, Switzerland, 2011.

5. International Organization for Standardization. General Requirements for the Competence of Testing and Calibration Laboratories. ISO/IEC 17025:2017, Geneva, Switzerland, 2017.

6. U.S. Occupational Safety and Health Administration. Laboratory Safety Guidance. OSHA 3404-11R, Washington, DC, 2011.
