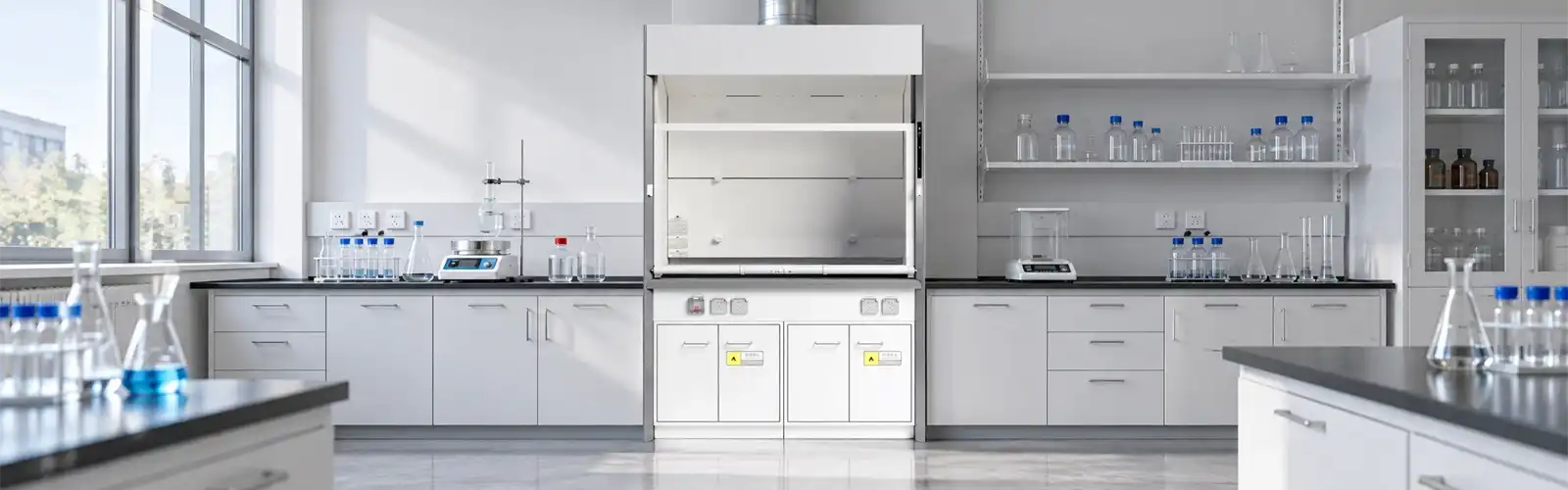

What Is a Fume Hood in a Chemistry Lab?

A chemistry laboratory fume hood is a local exhaust ventilation device that provides a negative pressure barrier between the scientist and hazardous vapors, dusts, and aerosols created during research. It is the first line of protection against poisonous, caustic, and combustible chemicals, continually pulling air in via the sash opening and pushing pollutants away from the breathing zone. Engineering controls such as Fume Hoods are considered by OSHA to be higher on the hierarchy of hazard controls than personal protective equipment; therefore, correct hood selection is a non-negotiable requirement for any serious QC or R&D laboratory.

Understanding Chemistry Laboratory Fume Hoods

Before investing in new equipment, it helps to understand exactly how these devices work and what separates one design from another.

Core Components and How They Work Together

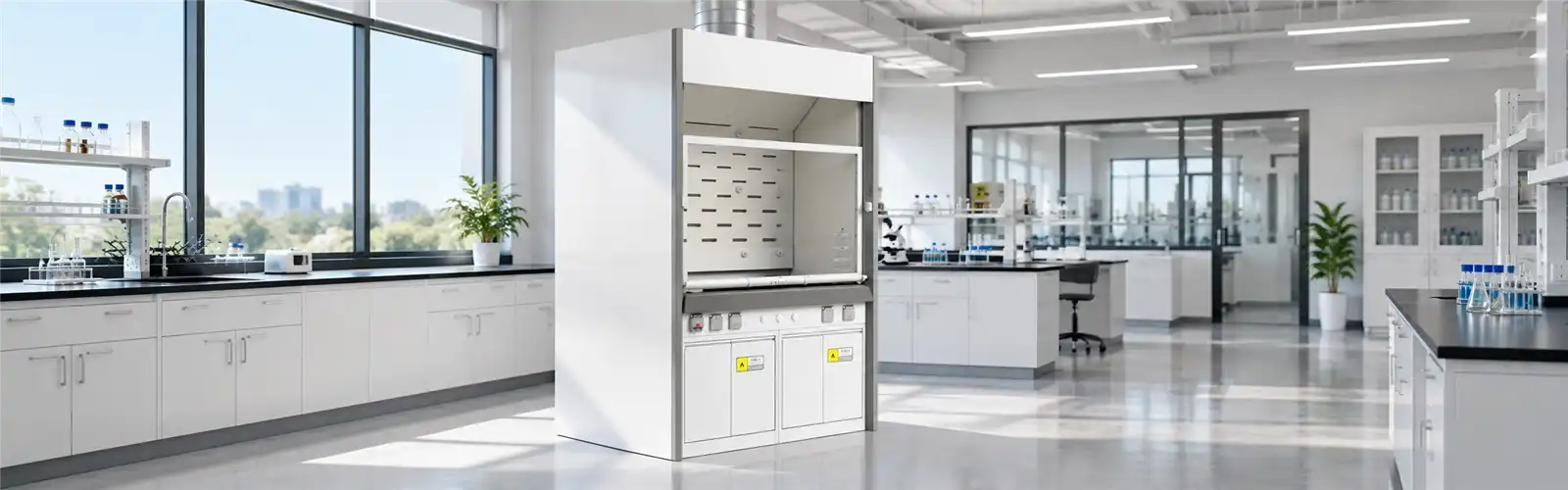

A fume hood consists of three main components: the sash (the movable front panel), the interior baffles (which control the flow of air), and the exhaust duct. The sash governs the height of the aperture, which has a direct effect on face velocity. Baffles provide a consistent pressure over the work surface, avoiding the dead zones where vapor might build up. The exhaust system constantly pulls polluted air away from the operator.

Ducted vs. Ductless Models

Ducted hoods are vented directly to the outside environment via a building HVAC connection, and handle practically all classes of chemicals. Ductless hoods trap vapors in activated carbon filters within the hood. However, ductless versions have severe chemical compatibility limitations and are not ideal for high-volume reactions or low-molecular-weight gases. Ducted systems are typical for pharmaceutical QC facilities under GMP.

CAV, VAV, and Venturi System Differences

Constant Air Volume (CAV) systems maintain a constant exhaust rate regardless of sash position, wasting energy. Variable Air Volume (VAV) systems adjust airflow depending on sash height and have been shown to save energy expenses by as much as 50% according to Lawrence Berkeley National Laboratory tests. There are no moving parts in the chemistry laboratory fume hood of Venturi systems; therefore, the rates of mechanical failures are lower, and this could be a point to consider while making the purchase choice.

Key Features and Safety Guidelines for Chemistry Fume Hoods

Knowing the technical features matters, but daily operating discipline is what keeps personnel safe over time.

Essential Safety Features to Prioritize

The important safety aspects that make a professional laboratory fume hood different from a simple enclosure are as follows:

• Face velocity monitoring: According to ASHRAE 110 recommendations, the airflow should be 0.4-0.5 m/s at sash opening. Youken’s devices include a real-time alert system that sounds when parameters are outside of safe limits.
• Spark-proof outlet: Electrical outlets in the work chamber provide a spark hazard in the presence of combustible gases. Youken’s protective socket covers remove that exposure point without hampering productivity.
• Integrated LED Lighting: Sufficient lighting is a GMP audit point. Youken’s integrated illumination provides vision when needed for essential analytical operations, without the need for external lights that disturb airflow.

Operational Safety Guidelines

Never use the unit with the sash higher than the specified “safe operating height” on the device. Do not keep chemicals within the hood while not in active use. This inhibits airflow via the baffles. Conduct monthly face velocity spot inspections and record results in your GMP compliance file. If the alarm sounds, cease work immediately. Check for clogged exhaust ducts or an open window over its rated height before starting work.

Troubleshooting Common Airflow Problems

A low face velocity usually indicates that the exhaust duct is clogged, the roof fan motor is bad, or the sash is over the safe height level. Nearby supply vents from the HVAC system that blow across the hood opening typically generate turbulent airflow at the face of the sash. By placing the supply diffusers at least 1.5 m away from the hood, most of the concerns about turbulence are eliminated.

​

How to Choose the Right Chemistry Lab Fume Hood for Your Facility

Selecting the right unit is a structured decision, not a quick catalog browse.

Match the Hood to Your Chemical Class

Working with perchloric acid requires a stainless-steel wash-down chemistry laboratory fume hood with an integrated water spray system to avoid the development of explosive perchlorate salts. Trace metal analysis should be performed on polypropylene (non-metallic) construction to prevent metal contamination. The work load is managed by a unit made of cold-rolled steel, lined with acid-resistant epoxy resin, for generic pharmaceutical synthesis.

Width and Workspace Configuration

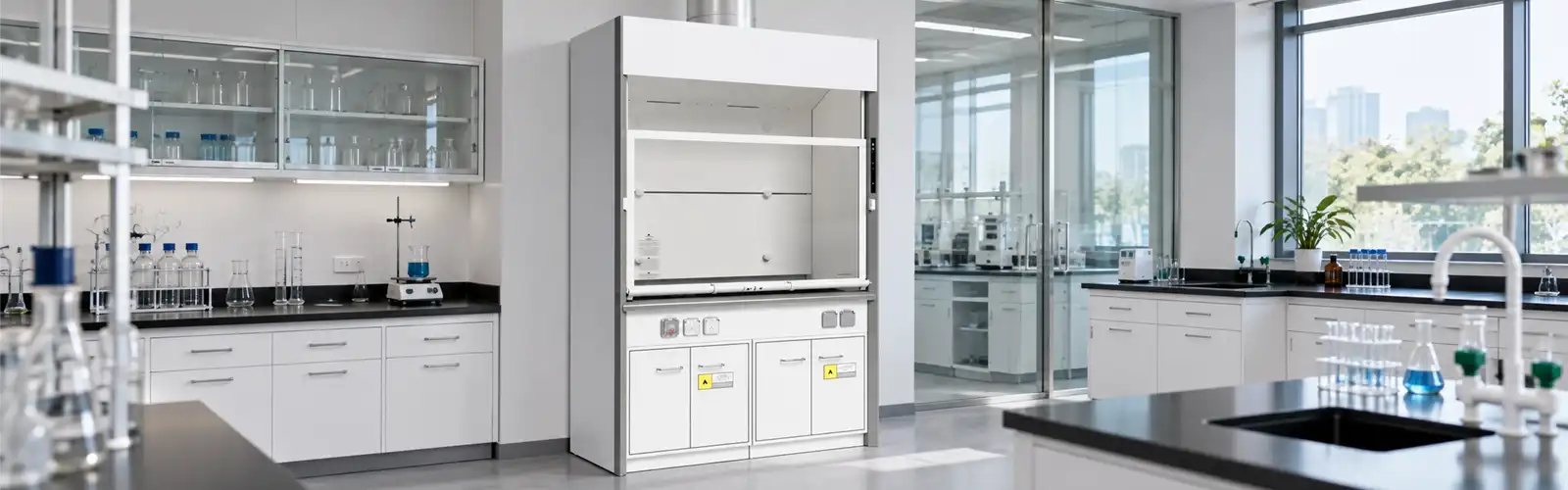

The Youken chemistry laboratory fume hood is available in three widths of 1200 mm, 1500 mm and 1800 mm with matching internal widths of 955 mm, 1255 mm and 1555 mm. The worktop height of 850mm is designed to follow typical laboratory bench ergonomics, to reduce operator fatigue during long hours of work. The 1500 mm format allows for numerous units to be placed side by side for new laboratory buildings, balancing space economy with workflow capacity.

Evaluate Total Cost of Ownership

What you pay per unit upfront is only part of the equation. VAV hoods may save considerable HVAC running expenditures over a five-year period. Made with 1.0 mm cold-rolled steel for durability, it won’t deform due to everyday chemical exposure, which helps keep replacement costs down. Ensure the supplier can provide certified replacement parts with a guaranteed lead time. Unplanned downtime in a QC laboratory impacts batch release directly.

Maintenance, Installation, and After-Sales Support

If you don't install and take care of your hood properly, it won't work as well as the best hood on paper.

Routine Inspection Checklist

It must be authorized annually. ASHRAE 110 or EN 14175 states so. Official licenses help you detect issues early, but so do face velocity checks once a month and smoke visualization testing every three months. Check the sash, bell, and dividers every three months to make sure they all operate. Keep a maintenance journal that conforms to GMP documentation requirements.

Installation and Lead Time Planning

You need a dedicated exhaust duct connection, a good HVAC make-up air system, and make sure the static pressure will function to get the location ready. Youken units have all the technical information you need, making it simple to hook them up to an HVAC system. For large or unique orders, you may tack on two to five months for the logistics of receiving the products. That is the normal lead time to get an item for a QC lab, from deciding they need it to confirming they can install it and accepting it.

Service Contracts and Spare Parts Access

Before you purchase, attempt to secure a written service contract guaranteeing response time. If you are buying from someone, make sure they have authentic replacement parts like sash mechanisms, alarm sensors, and baffle kits available in the US or nearby. Technical help is available to Youken buyers after the transaction. That way, an issue doesn’t become a compliance gap that lasts weeks.”

Leading Chemistry Laboratory Fume Hood Brands and Suppliers

There are a lot of well-known names on the world market. A lot of industries that have to follow rules can find what they need at Thermo Fisher Scientific. North American schools of engineering like Labconco's VAV designs since they don't use a lot of power. AirClean Systems makes ductless filtration hoods that work well in places with low traffic. They can both serve the pharmaceutical market in Asia and the Pacific thanks to their local service networks.

Luoyang Youken Laboratory Equipment Co., Ltd. is a chemistry laboratory fume hood manufacturer with ISO, CE, SEFA, and SGS standards. Buying teams can work with them to construct a new QC lab or update outdated equipment. Youken has 100 engineers and a factory that is 50,000 square meters. Before every shipment, they test their goods to make sure they meet all the rules. They make sure the quality is the same for both standard and custom designs.

​

Conclusion

A chemistry laboratory fume hood is not a generic piece of furniture — it is a precision safety device that protects people, preserves sample integrity, and keeps your laboratory in compliance. Getting the selection right means matching materials to your chemical inventory, verifying airflow performance data, confirming certification documents, and choosing a supplier with responsive after-sales support. Whether you are building a new pharmaceutical QC lab or replacing an aging unit that keeps triggering audit findings, the principles outlined here give you a solid framework for making a defensible procurement decision.

FAQ

1. What face velocity should a chemistry fume hood maintain?

ASHRAE 110 recommends 0.4–0.5 m/s at the sash opening. Velocities below 0.3 m/s risk containment failure, while velocities above 0.6 m/s create turbulence that can pull vapors back toward the operator.

2. How often does a fume hood require certification?

Annual certification is the standard under both OSHA guidelines and EN 14175. Re-testing is also required after any change to the building HVAC system or physical relocation of the unit.

3. Can a ductless fume hood replace a ducted model in a GMP lab?

Generally, no. Ductless models rely on carbon filters with finite saturation capacity and are not validated for all reagent classes used in pharmaceutical manufacturing. Most GMP inspections require ducted exhaust systems.

4. Why is my fume hood alarm activating?

The most common causes are a sash opened beyond its safe operating height, a blocked exhaust duct, or a failing exhaust fan motor. Check each of these before resuming work.

5. What material is best for acid-heavy applications?

For concentrated mineral acid work, phenolic resin liners and epoxy-coated steel exteriors handle most reagents. Perchloric acid requires 316 stainless steel construction with an integrated wash-down system.

​

Get a Certified Fume Hood Quote from Uken Today

ASHRAE 110 says that 0.4 to 0.5 m/s is best at the sash opening. If the speed is less than 0.3 m/s, control might not work. Turbulence can happen when speeds are more than 0.6 m/s. This can pull smoke back toward the user.

Every year, approval is needed for a chemistry laboratory fume hood according to both OSHA rules and EN 14175. Also, you need to test again after moving the unit or making changes to the building's HVAC system. Send an email to service@ukenlab.com or text message +86 15102909133 and answer.

References

1. American Society of Heating, Refrigerating and Air-Conditioning Engineers. ASHRAE 110: Method of Testing Performance of Laboratory Fume Hoods. ASHRAE, 2016.

2. Scientific Equipment and Furniture Association. SEFA 1: Recommended Practices for Laboratory Fume Hoods. SEFA, 2019.

3. European Committee for Standardization. EN 14175: Fume Cupboards — Laboratory Furniture and Fume Cupboards. CEN, 2003.

4. Occupational Safety and Health Administration. Laboratory Safety: Chemical Hygiene Plan. U.S. Department of Labor, 2011.

5. Lawrence Berkeley National Laboratory. Energy Efficiency Improvements in Laboratory Fume Hood Systems. U.S. Department of Energy, 2003.

6. National Research Council. Prudent Practices in the Laboratory: Handling and Management of Chemical Hazards. National Academies Press, 2011.
