Walk-in Fume Hood for Laboratories | Uken

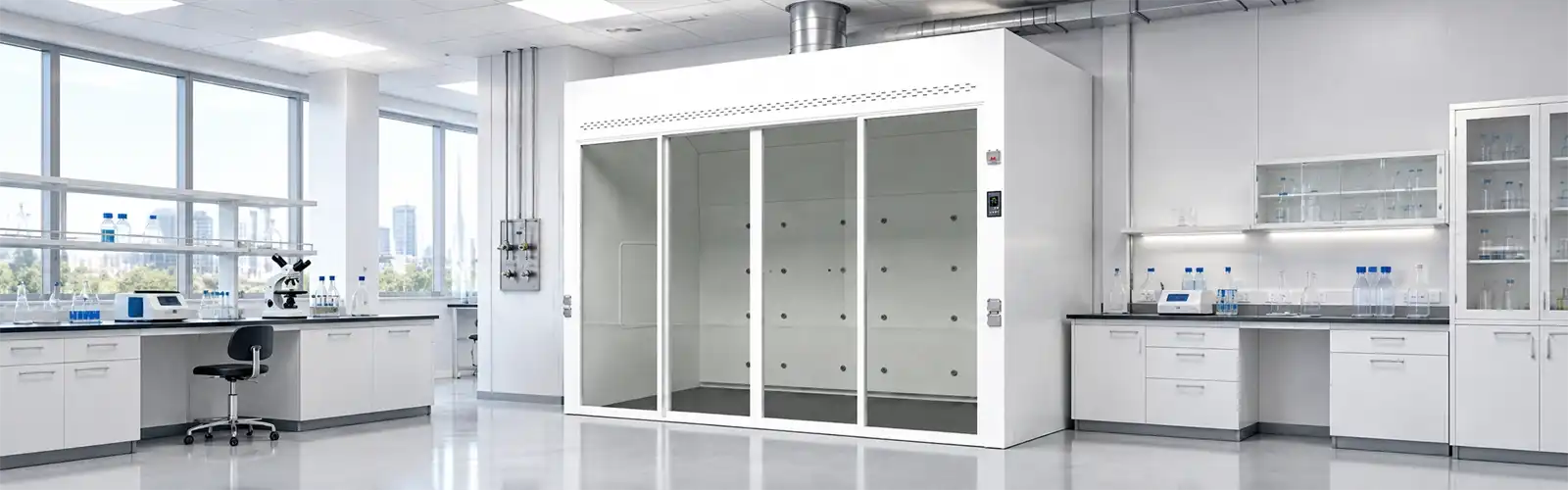

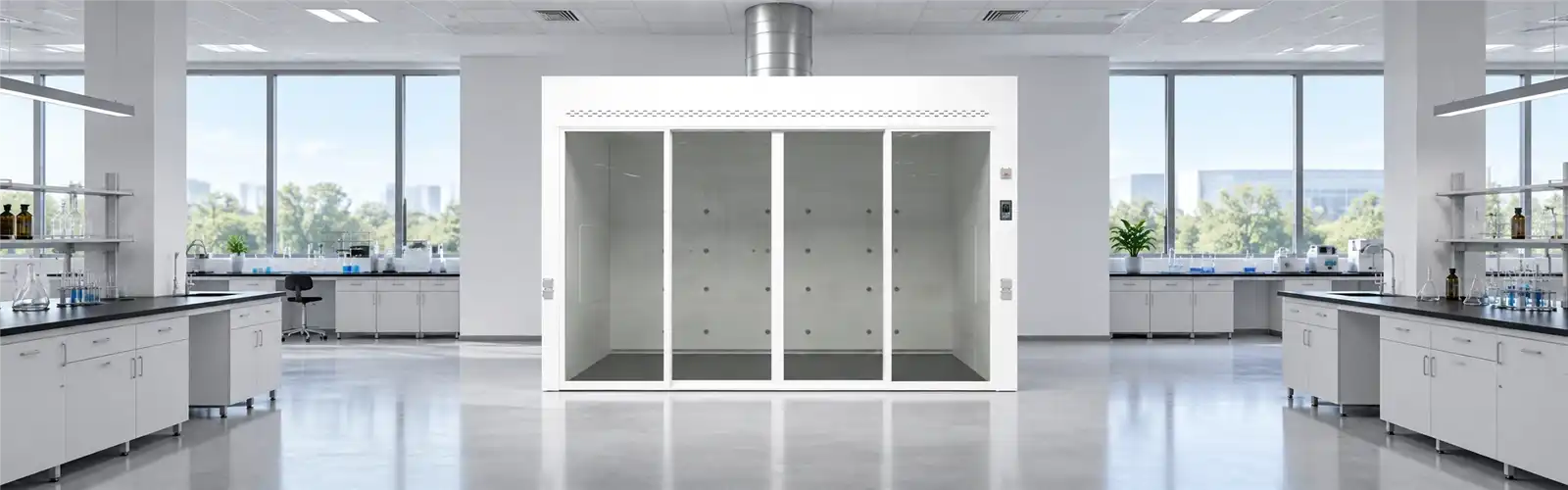

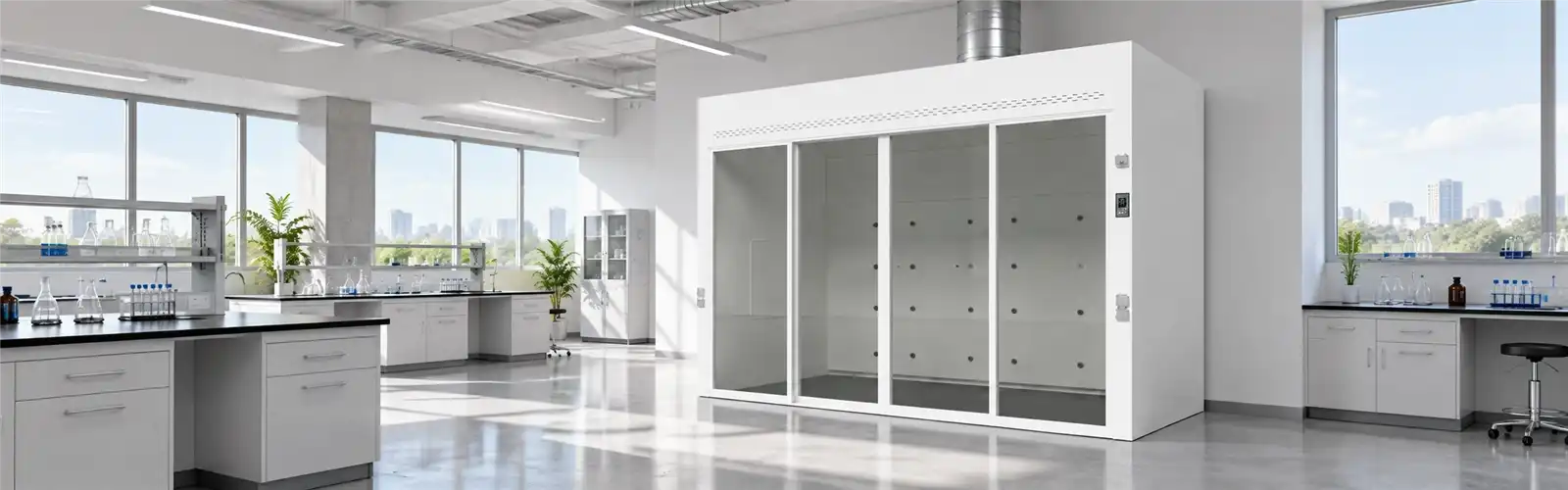

A walk-in fume hood is a floor-mounted laboratory ventilation enclosure built to contain large-scale equipment, tall distillation columns, pilot plant reactors, and 55-gallon chemical drums that standard benchtop units simply cannot accommodate. Unlike conventional hoods, this floor-to-ceiling containment system delivers exhaust airflow of 220–360 m³/h with a 60% make-up air ratio, meeting international safety standards while keeping energy costs in check. At Uken, we engineer these systems for research institutions, aerospace facilities, pharmaceutical GMP workshops, and materials science laboratories that demand precision ventilation at scale.

Understanding Walk-in Fume Hoods: Functionality and Benefits

How the Airflow System Works

To provide air to Uken's floor-mounted fume hood, multiple ducts with laminar flow are used. Together, a three-stage deflector and a cylindrical airflow collection structure make sure that the extraction of gas is smooth and even across the whole work area. These plans get rid of volatile organic compounds in the whole enclosure. It also keeps the negative air inside, even when big machines are running.

Key Safety and Performance Benefits

The sealed separation system keeps dangerous gases from getting into the rest of the building. The ratio of 60% make-up air reduces the total amount of energy that is used without changing how stable the cage is. A certain amount of air loss keeps the unit in line with OSHA exposure limits and SEFA ventilation performance standards. This shows the people in charge of buying things that the rules were followed before the site was audited.

Maintenance and Compliance Requirements

You should check the vent pipes and sash links and seals every six months. The exhaust system for the building is directly linked to both the upper and lower storage cabinets. This means that there is negative pressure everywhere, which keeps vapor from building up. Uken units are all certified by ISO, CE, SEFA, and SGS. This makes it easy to show compliance for GMP settings and national research platforms.

Comparing Walk-in Fume Hoods with Other Laboratory Containment Solutions

Floor-Mounted vs. Benchtop Fume Hoods

Many desk walk-in fume hoods have a height limit of 900–1000 mm, so they can only be used for small amounts of chemical work. A floor-mounted cage that extends out to 2,350 mm can hold tall glass reactors, distillation racks, and robots that move liquids automatically. There is no other safe way to keep these things inside. When builders want to scale up from a test plant, they have to pick one of the two. There is no choice on your part.

Walk-in Hoods vs. Ductless Models and Glove Boxes

These Fume Hoods don't have ducts and filter the air with activated carbon. They can only handle small amounts of chemicals. Glove boxes keep people apart, but they make it hard to get to tools. Both issues can be fixed by a walk-in floor hood, which has pumped air with a high volume and open space inside for setting up equipment. A ductless unit or a glove box can't take the place of this system's ability to extract for testing aerospace parts or processing large amounts of drugs.

Variable Air Volume vs. Constant Air Volume Systems

Systems with variable air volume (VAV) change the flow of exhaust based on where the window is placed. Less energy is used when the sash is higher. This type of airflow control keeps the flow steady no matter where the screen is placed. Uken's unit is in the middle of these two types. It has an exhaust range of 220–360 m³/h and a make-up air ratio of 60%. It gives facilities a good balance of saving energy and keeping things inside without having to pay extra for full VAV controls.

​

How to Choose the Right Walk-in Fume Hood for Your Laboratory

Size and Spatial Assessment

Inside Uken, the usual sizes are L1200 × D850 × H2350 mm, L1500 × D850 × H2350 mm, and L1800 × D850 × H2350 mm. To pick the right width, measure the space taken up by the biggest piece of gear you plan to use. People with roll-in equipment carts can get in without having to lift the door. This makes it less likely that someone will get hurt and saves time when setting up in high-throughput centers.

Material and Structural Specifications

The structure of the cabinet is made up of thickened cold-rolled steel plates that have been acid-washed, phosphated, and electrostatically sprayed. Because it has more than one layer of corrosion protection, the unit can handle acids, alkalis, and humidity. Chemicals wouldn't be able to soak into the wood parts. A frame-type structure upgrade can hold large chromatography racks and groups of analytical equipment in places that need to be able to hold more weight.

Total Cost of Ownership Considerations

The main things that affect the long-term cost of a floor-mounted air box are these:

• Energy efficiency: The 60% make-up air ratio measurably lowers HVAC operating costs compared to 100% exhaust systems, a significant budget consideration for facilities running units continuously across multiple shifts.
• Modular accessories: Optional fireproof chemical cabinets, waste liquid cabinets, and waste bin systems integrate directly into the base structure. Procuring these as part of the original order reduces retrofit costs later.
• Custom fabrication lead time: Uken's 50,000 m² production base and 100-engineer team support non-standard dimension requests, specialized duct outlet positions, and seismic anchor provisions without requiring third-party contractors.

Procurement and After-Sales Support: Ensuring a Smooth Walk-in Fume Hood Investment

Custom Design and Pre-Delivery Support

During the planning phase, Uken's engineering team works directly with project leads and lab PIs to make sure that all the measurements, arrangements for accessories, and details of how the ducts connect are right. Having these talks before delivery cuts down on the time needed for adjustments on-site and keeps expensive repairs from having to be done after installation. When Uken gives a price, it comes with thorough technical models and certification paperwork to help internal review boards at large research institutions that have to approve budgets quickly.

Installation and Commissioning Services

Professional installation includes balancing airflow, checking for negative pressure, and connecting HVAC ducts. This makes sure the unit meets the 220–360 m³/h exhaust performance needs of your building. During operational testing on-site, a performance report is made that can be used as proof by buying teams that the system meets safety standards for the institution.

Warranty and After-Sales Response

Uken has an organized guarantee program and a set way to deal with customers after the sale. Uken sends account engineers to national research centers and defense-related sites where equipment breakdowns cause projects to be late. These engineers know how your installation is set up, which makes it faster to figure out what's wrong and fix it when service is needed.

​

Why Uken is Your Trusted Partner for Walk-in Fume Hoods

Certifications and Manufacturing Capacity

The goods made by Luoyang Youken Laboratory Equipment Co., Ltd. are all made in a 50,000-square-meter plant with 100 professional engineers. The company has ISO, CE, SEFA, and SGS approvals, which mean that both the quality of the products and the safety of the lab are met. People who work as procurement officers at national labs and regulated manufacturing sites can use these qualifications to show that they are following the rules, as confirmed by a third party.

Proven Performance Across Industry Sectors

Uken floor-mounted units are used in GMP facilities for pharmaceuticals, aerospace research centers, materials science institutes, food production workshops, and academic national laboratories. This history across different fields gives procurement managers similar examples to use when they need to explain the need for tools to budget approval boards or institutional review groups.

One-Stop Laboratory Supply Capability

Uken sells more than just ventilation. They also sell storage boxes, sinks made of stainless steel, eye washers, faucets, Nurse Stations, and other unique items. It is cheaper and easier to keep track of logistics when you buy from a single source. This also makes sure that all of the labs at a large school use the same high-quality goods.

Conclusion

It's not everyday that you buy a floor-mounted fume fan; it's a technical investment that will protect your employees, your business, and your budget for a long time. The Uken walk-in fume hood has an approved structure that can be changed to fit your needs. It works well in GMP and big research settings. It can exhaust between 220 and 360 m³/h, has multi-duct laminar airflow, and has a make-up air ratio of 60%. Uken offers full support, professional installation, and a set of recorded certifications after the sale. This gives procurement professionals the technical knowledge and trust from the institution they work for to see a complicated equipment project through to the end.

FAQ

1. What exhaust airflow rate does the Uken walk-in fume hood provide?

The normal unit has a 60% make-up air ratio and gives off 220–360 m³/h of exhaust air at regular height. This range has the right amount of airflow for GMP pharmaceutical environments, pilot plant operations, and large-scale chemical processing.

2. Can the unit be customized for non-standard apparatus dimensions?

Yes, Uken's 50,000 m² factory can handle duct outlet, width, and height arrangements that aren't standard. Before they can start making things, the engineering team has to get approval from the school on the technical models they make during the quote step.

3. Which international standards does the product comply with?

ISO, CE, SEFA, and SGS have all approved the walk-in fume hood. Some of these include product quality, airflow performance, and following lab safety rules. Most of the time, national study bases and controlled output sites need these types of licenses.

4. What optional accessories are available?

The chemical cabinets, waste liquid cabinets, and waste bin systems can all be added as built-in extras. All the extra units are connected to the building's air system, which makes sure that the storage areas always have low pressure.

5. What is the typical project timeline from inquiry to installation?

How long it takes for custom design, production, and installation depends on how specific the needs are. The quote stage is when Uken's team gives a project schedule. The stages are usually design confirmation, production, delivery, and on-site commissioning, in that order.

​

Request a Custom Quote from Uken — Walk-in Fume Hood Manufacturer

For your lab project, you need a seller of walk-in fume hoods that can make certified goods and give you direct engineering help. Uken makes things to order, sets them up by experts, and shows proof of compliance for study centers and GMP sites all over the world. You can talk to Our Team about your project in detail and get a full quote.
