Should I use a ducted or ductless fume cupboard?

If you are sourcing laboratory ventilation equipment for OEM projects or brand distribution, the choice between a ducted and a ductless fume cupboard directly affects compliance, cost, and long-term usability. The short answer: a ducted fume hood is the gold standard for laboratories handling volatile organic compounds, concentrated acids, unknown chemical mixtures, or high-volume solvent work. Ductless units suit low-risk, low-volume tasks with predictable chemistry. Understanding the difference before procurement saves significant rework cost downstream.

Understanding Ducted and Ductless Fume Cupboards

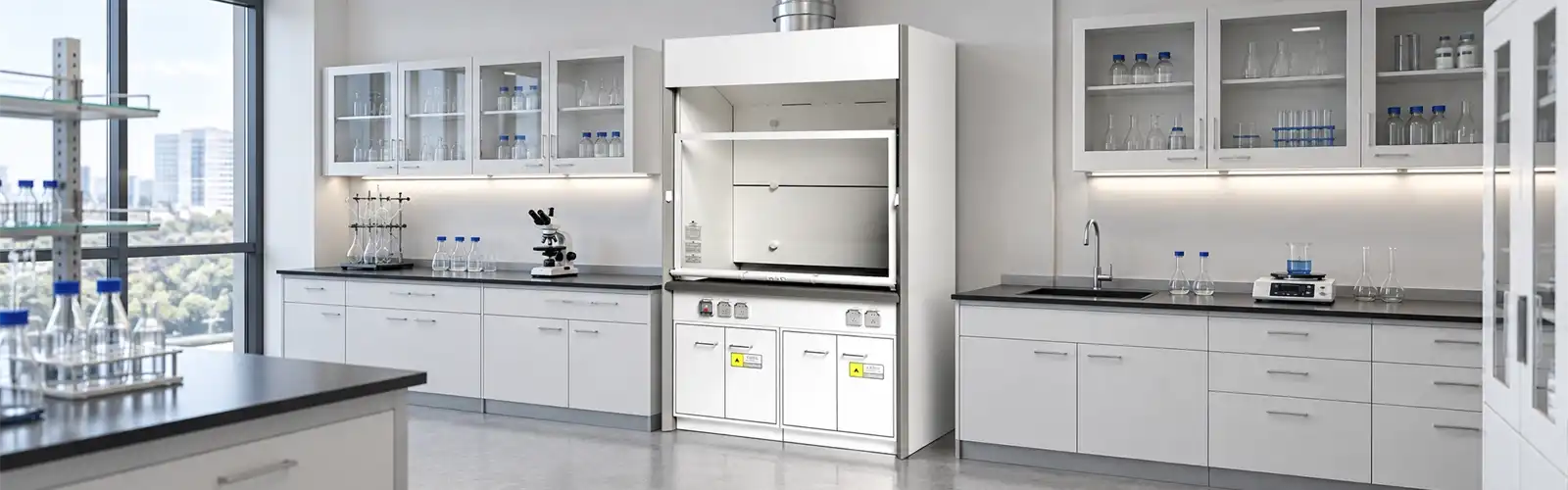

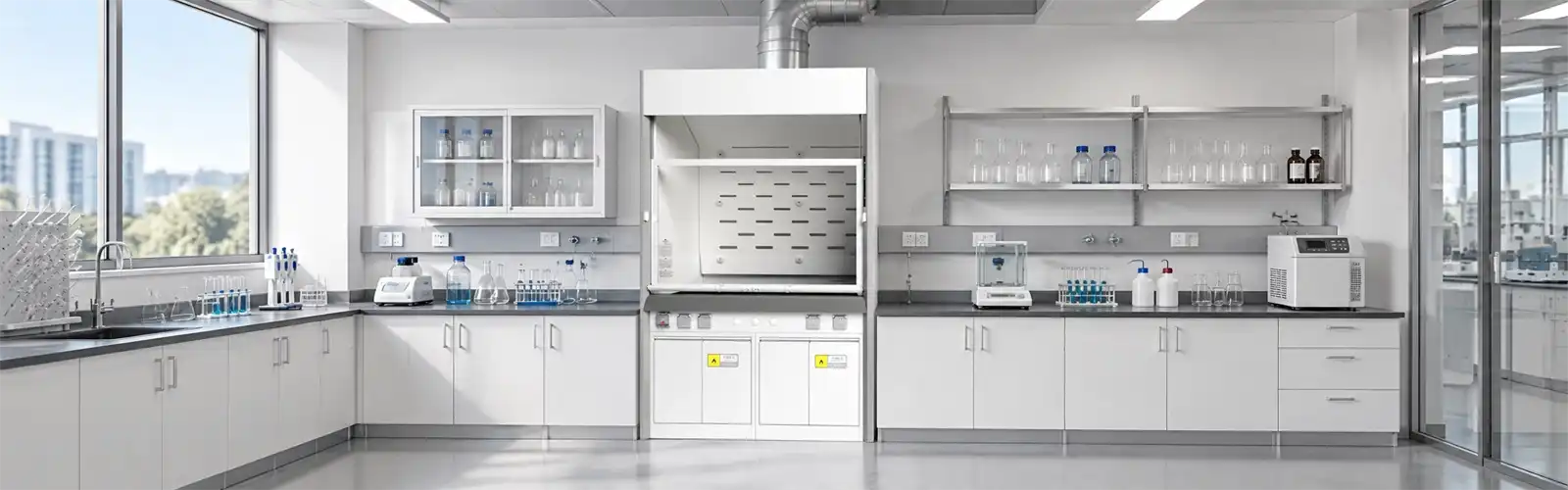

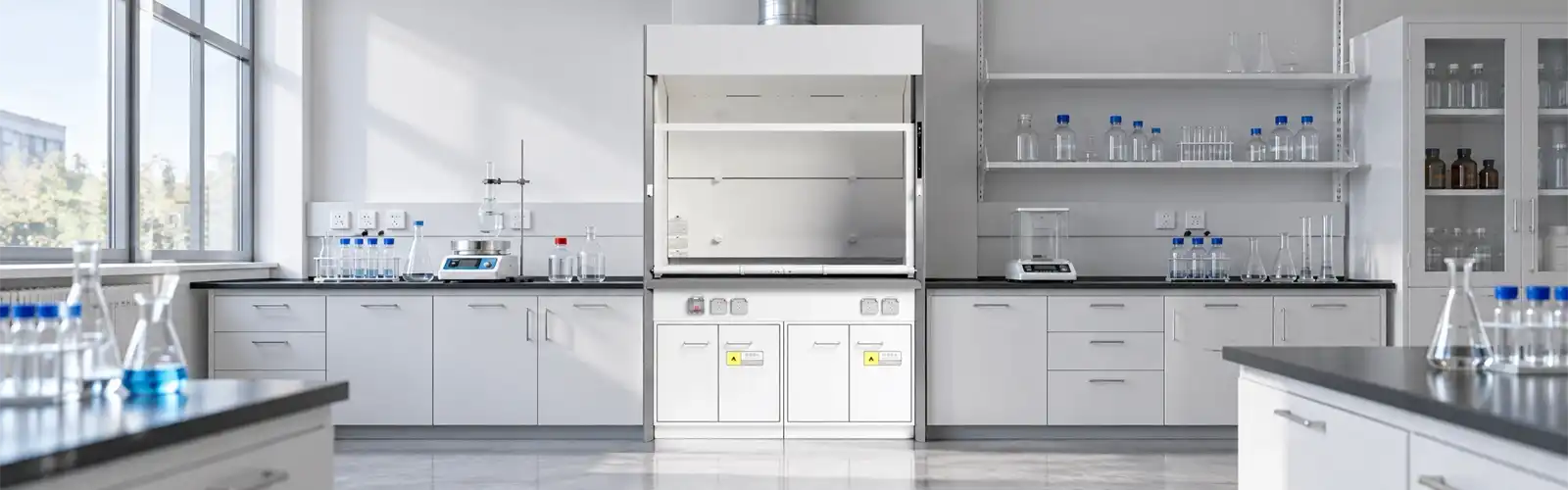

How a Ducted System Works

A piped fume cupboard is linked to the mechanical vent system of a building. Air that is contaminated is physically sucked out of the enclosure and sent outside the building through special ductwork. Because of this process, there is always negative pressure inside the hood compared to the rest of the lab, so airflow always goes away from the user. There is no chance of filtering saturation and no limit on the type of chemical.

How a Ductless System Works

A ductless fume cupboard filters air again by running it through activated carbon or HEPA media and then bringing it back into the room. Because there is no need for ducts, installation is faster. But this design makes it very hard for chemicals to work together. Some low-molecular-weight fumes and hydrofluoric acid can't go through carbon filters at all, so split units of any brand can't be used in those situations.

Key Safety Certifications to Check

Both types of systems need to be certified, but the standards are different. These are the two standards that most procurement teams use for ducted ventilated enclosures: ASHRAE 110 tracer gas testing and SEFA 8 chemical protection approval. Ductless units follow the performance guidelines for filters set out in EN 14175. CE and ISO standards cover a lot of ground. When choosing products for the US market, regulated facilities need to show proof of compliance with NFPA 45 and ANSI Z9.5.

Evaluating Performance and Safety: Which System Fits Your Needs?

Airflow Rate and Containment Efficiency

The ASHRAE 110 test measures containment loss at set face speeds. High-performance ducted fume hood can keep the amount of pollution below 0.05 ppm even at face speeds as low as 60 fpm. The OSHA Laboratory Standard (29 CFR 1910.1450) doesn't say what the face velocity should be, but it does say that workers must be properly protected, which most industrial hygienists think means 80–120 fpm for most chemical work. The same tracer gas protocol can't be used to validate ductless units, which leaves a documentation gap in regulated environments.

Energy Consumption and Noise Levels

It takes more work for the HVAC system because ducted systems constantly pull conditioned room air out of the building. By lowering the exhaust volume when the window is closed, variable air volume (VAV) settings cut this cost by a large amount. On paper, ductless units use less energy, but they have ongoing costs for things like replacing filters that are often not taken into account when the units are bought. At normal face speeds, noise levels for ducted hoods that are well-designed usually stay below 65 dB(A).

Maintenance and Upkeep Requirements

The two types have different preventative maintenance schedules. According to NFPA 45, ducted systems need to have their face velocity certified every year, and the exhaust ducts, dampers, and fan efficiency must be inspected. Ductless units need to have their filters changed on a regular basis, usually every 6 to 18 months depending on the chemical load. They also need to have sensors calibrated to see when the filters are saturated. Written repair logs are helpful for both types of systems and are often asked for during site audits and regulatory reviews.

Comparative Analysis: Choosing Between Ducted and Ductless Fume Cupboards

Strengths and Limitations of Each Type

Both types of systems have real benefits that depend on the job. Here are the main things that set one company apart from another that procurement teams always look at:

• Ducted fume hoods physically remove all contaminant classes from the work zone without filtration constraints. They pass ASHRAE 110 tracer gas validation, satisfy OSHA and NFPA 45 requirements for high-hazard applications, and do not accumulate saturated filter media. The trade-off is a higher installation cost due to ductwork and HVAC integration.
• Ductless fume cupboards offer fast deployment in temporary or rented spaces and lower upfront capital expenditure. They are appropriate for low-concentration aqueous chemistry and educational demonstrations. The constraint is real: carbon filter breakthrough occurs with compounds such as formaldehyde at elevated concentrations, presenting undetected exposure risk.

These differences have a direct effect on the total cost of ownership. It might cost more to install a vented unit with VAV controls, but over five years, it will pose less of a risk to compliance.

Real-World Application Profiles

For example, ducted systems are always required in laboratories that make pharmaceuticals, test petrochemicals, and do acid processing. According to a survey released by the American Industrial Hygiene Association in 2023, over 78% of regulated US laboratories that spent more than $50,000 a year on chemicals used ducted ventilated enclosures as their main containment device. When renovating, educational and field-testing spaces with small budgets tend to choose ductless options. Knowing the chemical profile of the end user before finishing a procurement plan keeps you from having to make expensive changes after the installation is done.

Procurement and Installation Guide for Ducted and Ductless Fume Cupboards

Selecting the Right Supplier

For buying fume cupboards from a supplier, you should check that they have ISO manufacturing certification, CE marking paperwork, SEFA membership or compliance records, and ASHRAE 110 test reports for certain models. When planning for the long term, the supply chain, warranty terms and the availability of extra parts are important. As long as the NDA is in place, factories with their own engineering teams can help OEMs set up their products, including making custom utility hookups and marking them with their own logo.

Installation Considerations

To connect the exhaust collar to the building's ventilation system, a qualified HVAC worker must be involved in the installation of a ducted fume cupboard. Before the unit gets to the job site, the ductwork needs to be measured, fans need to be chosen, and room makeup air needs to be calculated. Ductless units only need to be plugged into a power outlet, but they need enough air flow in the room to work as designed. OEM wholesalers that ship standard sizes (1200, 1500, and 1800 mm widths) should check the local electrical and water interface standards ahead of time to avoid having to make expensive changes in the field.

Scalability and Bulk Order Planning

Sticking to a single product line cuts down on the cost of training and the amount of spare parts that dealers need to keep on hand for various projects. Most bench configurations in the pharmaceutical, educational, and industrial markets can be made with one of three standard widths. When suppliers can handle small sample orders before mass production, purchasing managers can check the quality of fit, finish, and paperwork without spending all of their money at once.

Helping You Make the Right Choice: Decision-Making Framework for B2B Clients

Define Your Chemical and Safety Requirements First

Write down the chemical classes that your end users work with before you compare products. A vented exhaust box is not a choice if the list includes flammable liquids, carcinogens, or radioactive isotopes. It is needed. If the work only involves water-based buffers and low-vapor-pressure reagents, a ductless unit might be safe and within your budget. Most mistakes in the buying process are avoided at the proposal stage by this one step.

Evaluate Total Cost, Not Just Unit Price

When you add up the cost of replacing filters, calibrating sensors, and keeping records for compliance, a ductless cabinet's lower unit price is often not what it really costs over five years. For US facilities, getting a third party to certify the face velocity every year costs an extra $200 to $600 per ducted fume hood per year for ducted units. However, this cost is already included in most controlled lab running budgets. When procurement managers show internal stakeholders total cost of ownership data, they make decisions more quickly and with more support.

Match Product Specifications to Operational Profiles

For pharmaceutical or chemical labs with a lot of risks, you need vented systems that are approved by ASHRAE 110, baffle systems that can be adjusted, and steel frames that won't rust. Schools that are trying to stay within their budgets or temporary testing grounds may find that ductless units work well for their chemistry needs. When OEM buyers are looking for goods for more than one market group, they need a provider that can offer both configurations and keep the certification paperwork the same across the whole product line.

Conclusion

The decision between a ducted and a ductless fume room is not just based on price, but also on the type of chemical, the rules in the area, and the total cost of ownership. Ducted ventilated spaces are still the right choice for any lab that works with flammable, unknown, or highly concentrated chemicals. Ductless units are used in low-risk situations where installation options are more important than containment limits. Teams that base their specification process on chemical danger assessment and compliance paperwork always make better long-term buying choices than teams that base their decisions on unit cost.

FAQ

1. Can a ductless fume cupboard handle all chemical types?

No. Ductless units rely on carbon filtration, which does not capture all chemical classes. Low-molecular-weight compounds, hydrofluoric acid, and high-concentration VOCs can pass through filter media. For unknown or mixed chemistry, a ducted exhaust enclosure is the only specification that provides unconditional containment.

2. What is a realistic lead time for a ducted fume cupboard?

Standard production lead times for ducted Fume Hoods typically run 15–30 days after order confirmation for stock configurations. Custom OEM orders with branded labeling or modified utility connections may require 30–45 days. Sea freight to US or European ports adds 20–35 days depending on origin port and destination.

3. How often does a ducted fume hood require certification?

NFPA 45 and ANSI Z9.5 both require annual face velocity testing and certification. Additional testing is required after any HVAC modification, relocation of the unit, or significant change in chemical usage. Maintaining certification records is mandatory for regulatory inspections in pharmaceutical and clinical laboratory environments.

4. What sizes are available for standard project specifications?

The three most common widths for B2B projects are 1200 mm, 1500 mm, and 1800 mm, all at a standard depth of 850 mm and height of 2350 mm. These dimensions cover the majority of bench configurations across pharmaceutical, industrial, and educational laboratory layouts.

Partner with Uken for Your Next Fume Hood Project

Uken (Luoyang Youken Laboratory Equipment Co., Ltd.) makes ducted fume hoods that are CE, ISO, SEFA, and SGS-certified. They come in three standard sizes, and OEM/ODM versions can be made to fit your needs under an NDA. Our 50,000 m² production base and 100 in-house engineers can handle everything from small sample orders to large sales. As a professional company that makes ducted fume hoods, we answer in English within 24 hours. You can get a price or download our product list by emailing service@ukenlab.com or going to WhatsApp: +8615102909133​​​​​​​.

References

1. American Industrial Hygiene Association (AIHA). Laboratory Ventilation, 2022.

2. National Fire Protection Association. NFPA 45: Standard on Fire Protection for Laboratories Using Chemicals, 2021.

3. American National Standards Institute / AIHA. ANSI/AIHA Z9.5: Laboratory Ventilation, 2022.

4. Scientific Equipment and Furniture Association (SEFA). SEFA 8: Laboratory Fume Hoods — Recommended Practices, 2020.

5. American Society of Heating, Refrigerating and Air-Conditioning Engineers. ASHRAE 110: Method of Testing Performance of Laboratory Fume Hoods, 2016.

6. Occupational Safety and Health Administration (OSHA). 29 CFR 1910.1450: Occupational Exposure to Hazardous Chemicals in Laboratories, U.S. Department of Labor, 2011.
