How Does a Fume Extraction Hood Improve Laboratory Safety?

A fume extraction hood improves laboratory safety by capturing hazardous airborne contaminants—chemical vapors, toxic gases, and fine particulates—directly at the source before they reach any operator's breathing zone. Unlike general room ventilation, a dedicated fume extraction hood maintains a precise capture velocity (typically 0.3–0.5 m/s) to prevent eddy currents from pushing pollutants back into the workspace. According to OSHA, inhalation of chemical vapors accounts for a significant share of occupational illness cases each year. By containing and filtering these substances continuously, a well-engineered extraction system protects personnel, preserves sample integrity, and keeps facilities compliant with workplace exposure limits.

Understanding Fume Extraction Hoods and Their Role in Laboratory Safety

What Is a Localized Exhaust Ventilation System?

A localized exhaust ventilation (LEV) system is what a fume extraction hood is. Instead of spreading contaminants around a room, it stops them as soon as they start to form. This targeted method lowers the concentration of dangerous substances much better than HVAC systems that are mounted on the ceiling, and it does so while using less energy.

Core Functional Components

Controlled airflow, multistage filtration, and physical containment are the three main functions of a good extraction enclosure. High-performance units have a strong fan motor and small air ducts that work together to make steady, even airflow. In the filtration steps, there may be H13/H14 HEPA media (which is estimated at 99.97% effective at 0.3 microns) and activated carbon beds that are designed to soak up certain volatile organic compounds (VOCs).

Safety Features That Matter

It is the differential pressure sensors and automatic airflow control that tell professional-grade units apart from basic cages. An alarm lets the person know right away if the airflow goes below the safe level. Youken's extraction cages work at less than 60 dB, which means that the warning signal can always be heard and workers don't have to deal with noise that makes them tired during long shifts.

Common Laboratory Hazards Addressed by Fume Extraction Hoods

Chemical Vapors and VOC Exposure

Some of the VOCs that are most often found in autopsy and analysis labs are acetone, formaldehyde, xylene, and toluene. Long-term, low-level exposure to these chemicals is linked to lung diseases, liver damage, and the growth of cancer. Formaldehyde is considered a possible occupational carcinogen by the National Institute for Occupational Safety and Health (NIOSH) in the United States. This alone is reason enough for any histology department to have a fume extraction hood for source-capture ventilation.

Particulate Matter and Biological Aerosols

Besides vapors, fine dust made when weighing, grinding, or coating tablets can get into the lower airways. In microbiology labs, biological particles pose a completely different set of risks. These particles can't get into nearby desks or shared air sources because they are contained by a structurally rigid steel container with a face hole big enough to keep the face velocity right.

Regulatory Compliance: OSHA and Beyond

OSHA's Laboratory Standard (29 CFR 1910.1450) calls for chemical hygiene plans that list engineering controls, such as enough exhaust ventilation in the area. European facilities have to follow the rules set by EN 14175 and EU REACH. Using approved tools, like ISO, CE, SEFA, and SGS-certified items, shows that your engineering control meets the required performance levels. This keeps the company from getting fined by the government.

Types of Fume Extraction Hoods and Their Suitability for Different Applications

Ducted vs. Ductless Units

All contaminants are sent outside the building by ducted systems, which makes them good for places with a lot of air flow or a lot of different chemicals where one carbon filter can't safely remove all of them. Ductless units recycle filtered air back into the room, which makes them useful in places where installing ducts would not be practical. The downside is that split systems need to have exact matches between filters and chemicals and replacements on a regular basis in order to work.

Portable vs. Fixed Installations

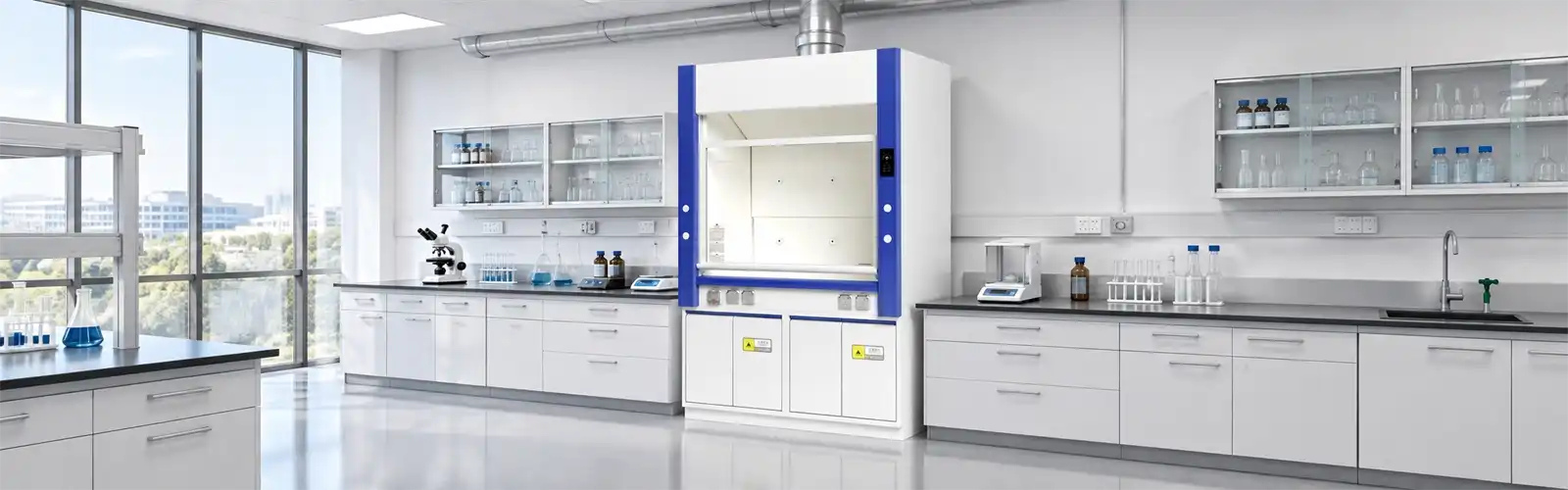

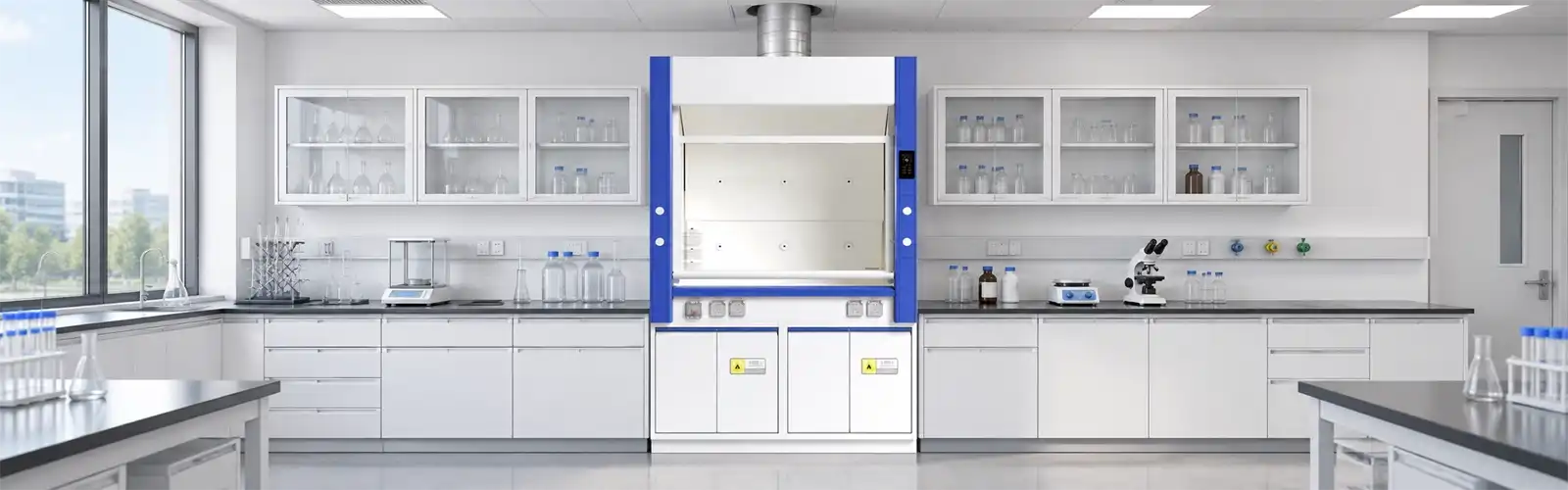

Technicians can move capture points to wherever work is being done with portable extraction arms and tabletop cages. This makes them perfect for electronics assembly lines or research stations that are spread out. Fixed floor models, like the Youken extraction enclosure, which comes in L1200×D850×H2350 mm, L1500×D850×H2350 mm, and L1800×D850×H2350 mm sizes, offer consistent, high-volume extraction that works well for chemical analysis, pharmaceutical synthesis, and medical lab workflows.

Energy Efficiency and Noise Reduction

Variable Air Volume (VAV) fan controls on the fume extraction hood lower the amount of energy used when the sash is closed or the lab is empty. This makes a real difference in the annual running costs. Noise levels below 60 dB, which is what Youken engineers design for, keep the noise level within NIOSH guidelines for an eight-hour workday, which keeps lab staff from getting mentally tired.

Best Practices for Installation, Operation, and Maintenance

Site Assessment and Airflow Planning

Before installation, a trained engineer should make a map of the room's current air supply points and mark any cross-draft sources, like doors, air conditioning outlets, and hallways with a lot of foot traffic. Cross-drafts as slow as 0.1 m/s can slow down the catch speed and let contaminants escape. Most containment failures can be avoided by placing the enclosure away from areas with a lot of foot traffic and supply air registers.

Here are three upkeep tasks that must be done every time to keep extraction performance at a high level:

• Filter replacement on schedule: HEPA and carbon media should be replaced every 12–24 months, or earlier if the pressure drop sensor indicates saturation. Overloaded filters reduce airflow and allow breakthrough of adsorbed chemicals.
• Face velocity verification: Test with a calibrated thermal anemometer at least once per year. ASHRAE 110 recommends verifying that face velocity across the sash opening remains within the designed range.
• Smoke pattern visualization: Pass a smoke generator across the face opening to confirm that all airflow moves inward. Any backward plume indicates a seal gap, duct obstruction, or fan underperformance requiring immediate attention.

Recognizing and Resolving Common Issues

All of these maintenance steps stop the slow loss of performance that most people don't notice until there is an exposure incident.

Making an Informed Procurement Decision: Choosing the Right Fume Extraction Hood

Evaluating Performance Standards and Certifications

Always ask for test reports along with certification papers when comparing fume extraction hood providers. For European markets, a CE mark shows that the product meets safety and radiation standards. SEFA 1 and SEFA 8 cover the performance of lab chairs and Fume Hoods. The manufacturer's quality management system is checked by ISO 9001 approval, and SGS third-party verification gives an extra level of security. All of these credentials are on Youken units, which makes it easier for foreign buyers to clear customs and pass regulatory checks.

Total Cost of Ownership

The price you pay is only one part of the total cost. Think about how much energy it uses, how often it needs to be replaced, and the chance of shipping damage. Youken solves the last point by using stronger export packaging made for long-distance ocean freight. This immediately lowers the landed cost for buyers across borders. The 1.0 mm cold-rolled steel shell doesn't bend during transport, and the anti-fading, aging-resistant surface treatment means that the equipment won't need to be painted again for as long as it's used.

Flexible Procurement for Small-Batch Buyers

Not every customer needs to order a whole container. Youken allows mixed-batch buying, which lets small to medium-sized distributors try out a number of SKUs before committing to big orders. This method cuts down on the time it takes to decide to reorder—usually between one and four weeks—and lets resellers test the market before going big.

Conclusion

A well-designed and well-kept fume extraction hood is one of the best investments a lab can make in the health of its employees and in following the rules. The physics behind a good extraction enclosure protects against the most common risks a modern lab meets, from biological aerosols to stopping VOC inhalation. Youken's cold-rolled steel units meet ISO, CE, SEFA, SGS, and CQC standards. They are strong, quiet, and come in export-ready packaging, which makes them easier for buyers all over the world to buy.

FAQ

How often should filters in a fume extraction hood be replaced?

When used normally, HEPA and activated carbon filters should be changed every 12 to 24 months. Replace right away if your pressure drop indicator shows saturation earlier. Chemical processes that do a lot of work may need to be changed more often. To make sure the filter is still working well between replacements, it should be tested once a year using either DOP or SF6 tracer gas methods.

How do I verify that my extraction enclosure is actually containing fumes?

Use a small smoke maker to do a test of visualizing smoke patterns. Hold it up to the opening in the face and look at the direction of the airflow. The smoke should only come from inside and not back toward the operator. For official proof of compliance, an ASHRAE 110 tracer gas test gives measurable control data that is accepted by regulatory bodies.

Is a portable extraction unit equivalent to a fixed installation?

Portable units let you choose where to put them, but they usually can't handle as much wind. A movable arm is good for jobs that need to be done on the fly, like spot soldering or preparing small samples. When high levels of formaldehyde or xylene are used continuously in pharmaceutical synthesis or histology processes, a fixed floor-standing model with a bigger extraction capacity is the best choice.

Does the Youken fume extraction hood comply with SEFA standards?

Yes. Along with ISO, CE, SGS, and CQC certificates, each unit is made and tested to meet SEFA 1 and SEFA 8 standards for laboratory furniture and fume hood performance.
