For Your Lab: Ducted or Ductless Fume Hoods?

If you're sourcing ventilation equipment for a laboratory, the choice between a ducted fume hood and a ductless model is one of the most consequential decisions you'll make. A ducted fume hood connects to an external exhaust system and physically removes hazardous vapors, gases, and fumes from the workspace — making it the standard choice for pharmaceutical synthesis, acid digestion, and high-volume solvent work. Ductless models use activated carbon filters to capture contaminants internally. Each approach has a place in the right context, and this guide walks you through everything you need to decide with confidence.

Understanding Ducted and Ductless Fume Hoods

It's helpful to know what each machine does in the lab before comparing prices or certificates.

How Ducted Systems Work

A ducted fume hood is directly connected to a building's HVAC system and sends dirty air outside the building. The system always has negative pressure compared to the lab space around it. This means that air always flows away from the operator and toward the exhaust duct. This design isn't bound by filter capacity or chemical specificity, so it can be used to handle unknown compounds, volatile organic compounds (VOCs), and the removal of thermal load from processes that release heat.

How Ductless Systems Work

Before sending air back into the lab, ductless hoods use activated carbon or HEPA filters to get rid of any contaminants. They don't need any outside ductwork, which speeds up installation and gives you more options for where to put them. But filter saturation is a real risk when the chemicals are mixed in a complicated way or when there are a lot of solvents. Most of the time, ductless units work well in low-risk situations with clear chemical profiles and strict filter replacement schedules.

Types of Ducted Fume Hoods

Constant-volume (CV) hoods keep the same amount of exhaust no matter where the sash is placed. Variable air volume (VAV) hoods change the airflow based on the height of the sash. This uses a lot less energy—studies from the Lawrence Berkeley National Laboratory show that VAV systems can save up to 60% of the energy used by exhaust systems compared to CV models. There are special types for working with perchloric acid (with built-in wash-down systems), radiochemistry (with stainless steel liners), and high-performance low-flow versions that meet ASHRAE 110 standards.

Key Factors to Consider When Choosing Between Ducted and Ductless Fume Hoods

In the end, the choice is based on safety standards, the limitations of the infrastructure, and the total cost of running the business.

Safety Compliance and Chemical Scope

As per OSHA 29 CFR 1910.1450, labs must use technical controls to keep workers from being exposed to dangerous chemicals. Fume Hoods are the main way that this is done. The tracer gas containment test method used to certify hood performance is laid out in ANSI/ASHRAE 110-2016. When set up for high performance, a ducted fume hood can pass ASHRAE 110 testing with face speeds as low as 60 fpm. There are gaps in compliance in facilities that are audited under OSHA or NFPA 45 because ductless hoods can't pass the same test for all chemical classes.

Maintenance and Filter Lifecycle

Filters in ductless hoods need to be checked and replaced on a regular basis, usually every 6 to 12 months based on the chemical load. Contaminants can get back into the lab if a filter gets full without being detected. Ducted fume hoods don't have this risk, but they do need to have their face velocity and duct stability checked every so often. NFPA 45 and ANSI Z9.5 both say that approval should be done once a year. Quality ducted units have internal parts that can be taken off, which makes regular cleaning easy without the need for special tools.

Infrastructure and Installation Constraints

For ducted fume hoods to work, they need a special exhaust link to the building's mechanical system. This makes the work more expensive up front and limits where the hood can go to make room for the ducts. Ductless units can be put almost anywhere with a power plug, making them ideal for temporary labs, field sets that can be moved, or places where changing the ducts would be too difficult. For permanent lab builds or upgrades that use HVAC systems that are already in place, a ducted fume hood provides long-term safety with lower practical risk.

​

Comparing Performance and Costs: Ducted vs Ductless Fume Hoods

Both types of systems have real costs that go beyond the price they cost to buy. Here's an honest look at them side by side.

Performance Metrics

Ducted fume hoods work with all chemicals and keep getting rid of contaminants all the time. Ductless units work well for uses with a single fluid, but they have problems when chemical streams are mixed or unknown. Most of the time, ductless models are quieter because they don't have an exhaust fan built in. Good ducted hoods, on the other hand, keep noise levels in normal labs within acceptable ranges thanks to their aerodynamic baffle design.

Total Cost of Ownership

The costs of each method change over time in different ways, and buying teams should look at both one-time and ongoing costs:

• Ducted fume hood: More expensive to install because of the ducts; cheaper to run because the filters don't need to be replaced often; VAV control systems can help save energy.
• Ductless hood: A ductless hood has a lower installation cost, but the filters need to be replaced every year, which can cost anywhere from $200 to $600 per unit, based on how much it is used. No matter how much it costs, it is not good for high-hazard areas.
• Long-term perspective: A ducted fume hood in a pharmaceutical or chemical lab usually has lower total operating costs than a ductless system over five years, when the cost of replacing filters and the risk of a compliance audit are taken into account.

These numbers are estimates from the industry as a whole. Actual costs depend on the size of the building, how it is used, and the energy rates in the area. The right choice isn't just the cheapest one; it's also the one that fits your lab's chemicals and cash.

Optimal Application Scenarios

Most of the time, ducted fume hoods are used in drug research and development, petrochemical testing, acid digestion labs, and other places where chemicals change over time. Ductless models are still a good choice for schools with clear, low-risk procedures or for extra workstations that already have primary protection in place.

Trusted Brands, Suppliers, and Customization Solutions for Your Lab

When looking at ducted fume hood providers, procurement teams should not just look at the price listed in the catalog.

What to Verify Before Committing?

If a supplier relationship delivers value at scale, it depends on their certifications, their factory's ability, and how responsive they are during the sampling phase. For most end markets, certifications are a must. For European distribution, the product must be marked with the CE mark. The SEFA 8 chemical resistance test checks how long the work area will last, and the ASHRAE 110 tracer gas test proves that the containment works. If a supplier can't give test reports when asked, they shouldn't move forward in the evaluation process. Before sampling starts for OEM and ODM clients, NDA agreements and IP ownership clauses should be made sure of.

Customization and Bulk Order Advantages

Standard sizes of 1200, 1500, and 1800 mm cover most project needs, but factory-level customization can help with application-specific needs like choosing the inner material, where to put the utility connections, and how the control panel is set up. Manufacturers with good reputations and in-house engineering teams can make changes without having to wait for longer lead times. This lowers the project risk for big contract orders.

What Uken Brings to the Table

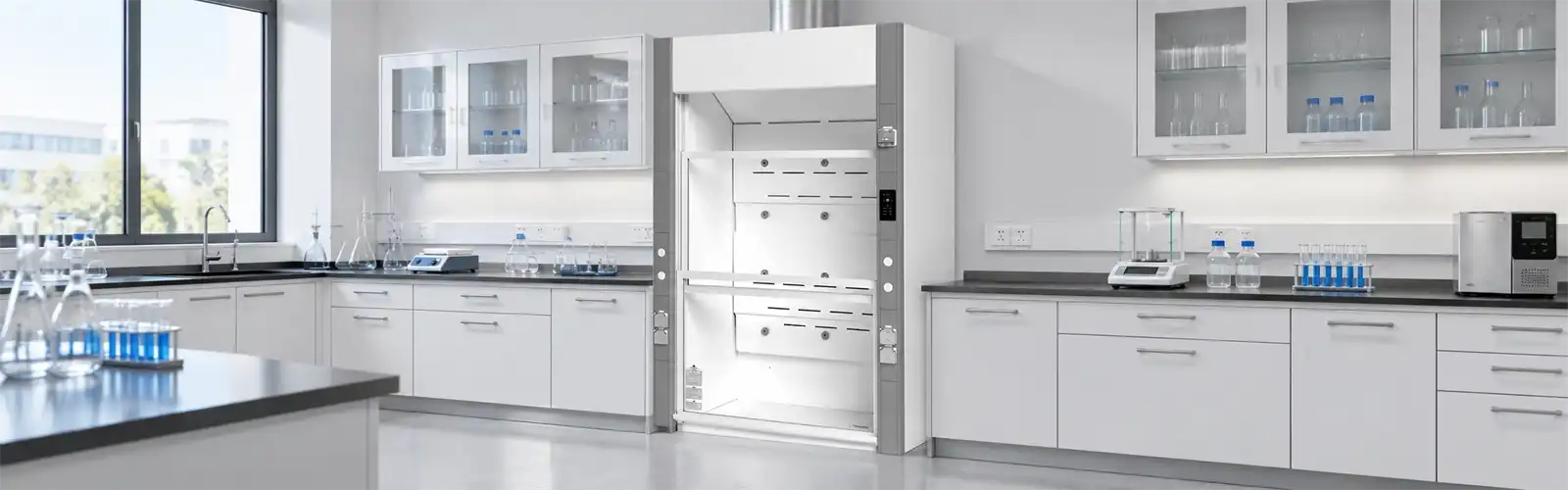

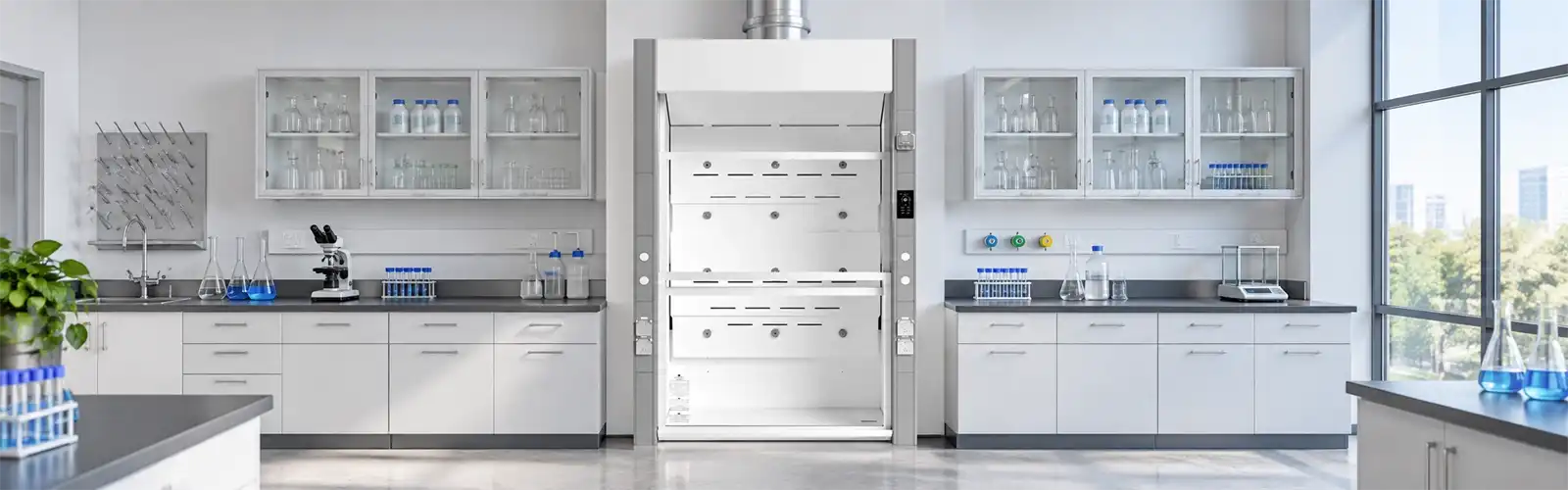

Luoyang Youken Laboratory Equipment Co., Ltd. (Uken) makes ducted fume hoods in three standard sizes. Their products are made of corrosion-resistant steel and have touch-control screens, changeable rear baffle systems, and synchronous belt lifting mechanisms. Each unit comes with quick-connects for water, power, and gas. The factory is spread out over 50,000 square meters and has 100 professional engineers working there. Products have been approved by ISO, CE, SEFA, and SGS. Uken works with OEM and ODM programs and protects them with NDAs and lets factory audits happen.

Conclusion

Whether you choose a ducted or ductless fume hood depends on the type of chemicals you use, the rules that apply, and the layout of your facility. A ducted fume hood is better at keeping air contained than external filter systems in most professional labs, especially those that work with acids, solvents, or substances that don't have clear absorption profiles. The vented method is clearly better when you look at certifications, long-term costs, and safety checks. Before you make a purchase, you should carefully consider your chemical inventory, the accessibility of your ductwork, and your legal obligations.

​

FAQ

What certifications should a ducted fume hood carry for US laboratory use?

Check that the ASHRAE 110 tracer gas test was passed and that the SEFA 8 chemical protection paperwork is present. The more general rule for technical controls in labs is set by OSHA 29 CFR 1910.1450. For European delivery, CE approval is needed. Always ask the manufacturer for test reports.

How often does a ducted fume hood require certification?

Both NFPA 45 and ANSI Z9.5 say that certification should be done every year. It's also necessary to get recertified after making changes to the building's HVAC system or moving the hood.

Can a ductless hood be used for perchloric acid work?

No, perchloric acid needs a special ducted fume hood with stainless steel liners that are seamless and a built-in wash-down system to keep the exhaust stream from building up with explosive perchlorate salt. This risk can't be fixed by a carbon filter.

What face velocity is standard for a ducted ventilation hood?

The most common standard is 100 fpm (feet per minute) at the sash opening. However, high-performance low-flow models certified to ASHRAE 110 can contain the air well at 60 fpm, which uses less energy.

What is the typical lead time for OEM ducted fume hood orders?

Depending on how complicated the specifications are, first sample orders are usually finished within 15 to 25 business days. Most of the time, it takes 30 to 60 days to make a large order. Make sure of the dates in writing before you place an order.

Ready to Source a Ducted Fume Hood That Meets Your Specs? Contact Uken

Uken is a maker of ducted fume hoods that can do OEM, ODM, and private-label projects. They are certified by ISO, CE, and SEFA. Our hoods are made for professional labs around the world and come in 1200, 1500, and 1800 mm sizes. They are made of steel and have touch-control panels. Get a quote today for a sample or a lot of them. To begin, go to ukenlab.com or send an email to service@ukenlab.com or  WhatsApp: +8615102909133.

WhatsApp: +8615102909133

References

1. American Society of Heating, Refrigerating and Air-Conditioning Engineers. ANSI/ASHRAE Standard 110-2016: Method of Testing Performance of Laboratory Fume Hoods. ASHRAE, 2016.

2. National Fire Protection Association. NFPA 45: Standard on Fire Protection for Laboratories Using Chemicals. NFPA, 2019.

3. American National Standards Institute / American Industrial Hygiene Association. ANSI Z9.5: Laboratory Ventilation. AIHA, 2022.

4. Occupational Safety and Health Administration. 29 CFR 1910.1450: Occupational Exposure to Hazardous Chemicals in Laboratories. U.S. Department of Labor, 2023.

5. Scientific Equipment and Furniture Association. SEFA 8: Recommended Practices for Fume Hood Design and Installation. SEFA, 2020.

6. Lawrence Berkeley National Laboratory. Laboratories for the 21st Century: Best Practices — Fume Hood Performance and Energy Efficiency. U.S. Department of Energy, 2011.
