Complete Chemistry Lab Island Guide for Modern Testing and Research Facilities

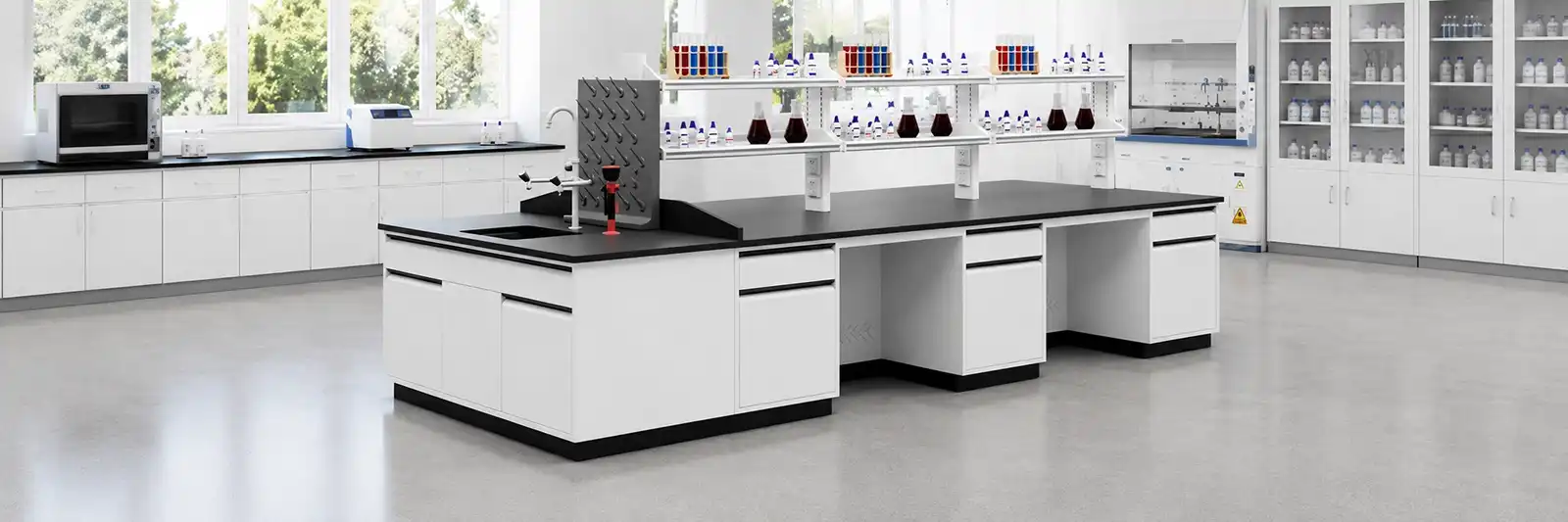

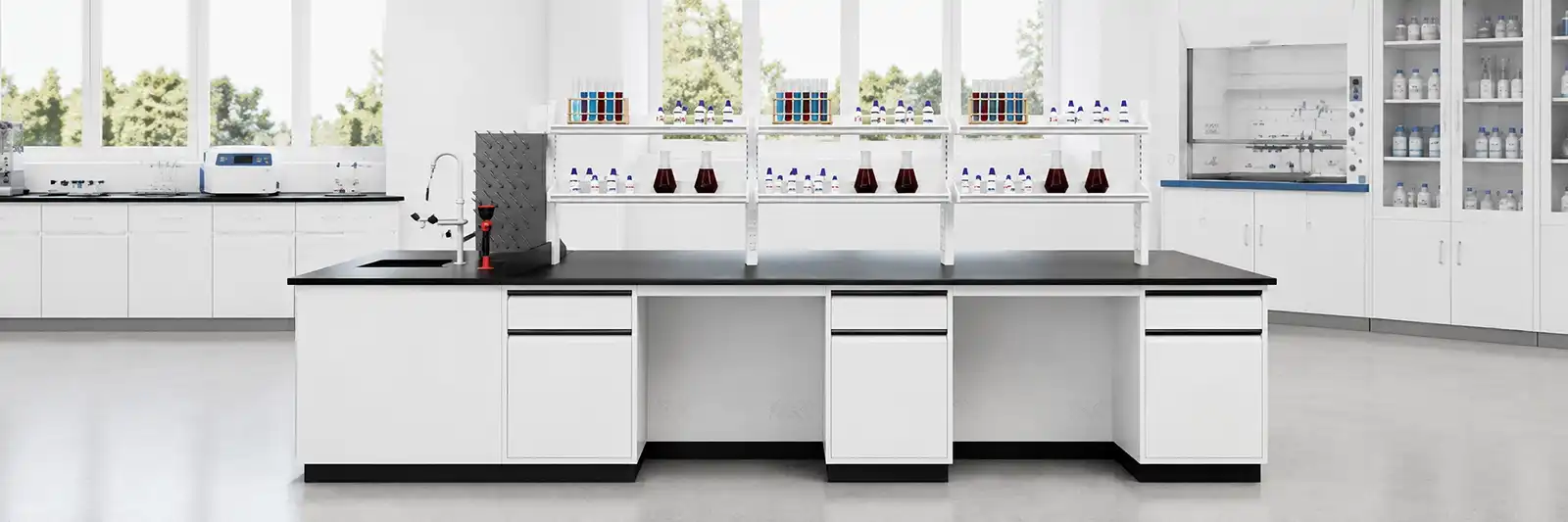

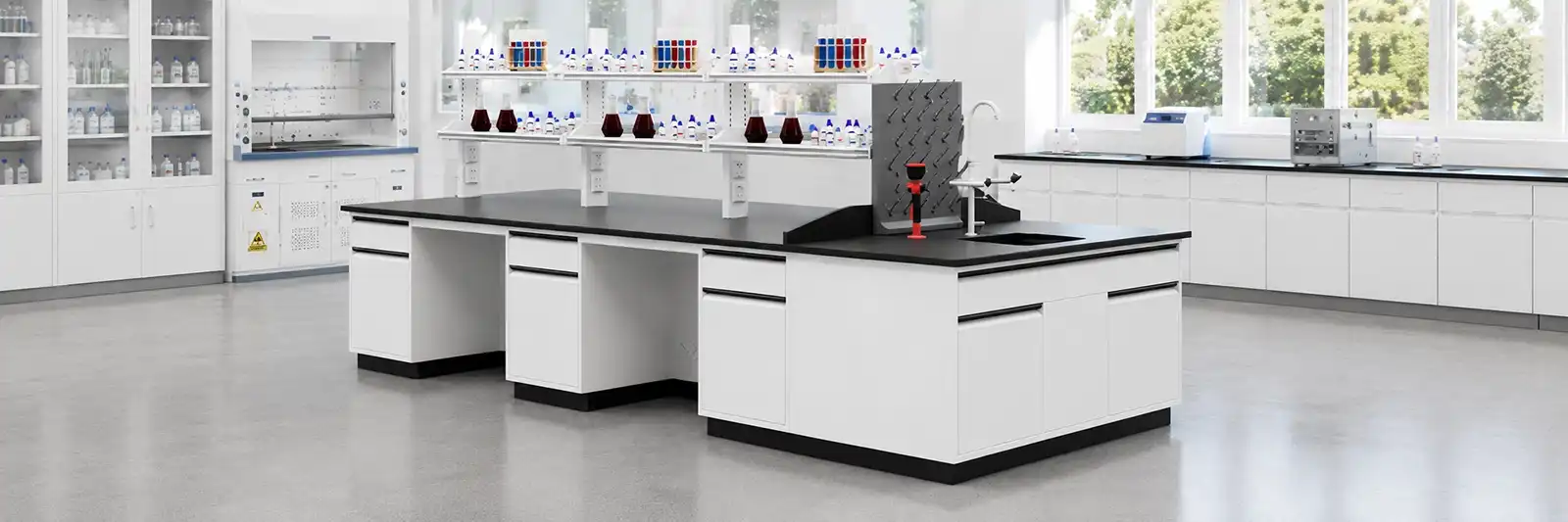

A chemistry lab island serves as the operational backbone of contemporary research environments, functioning as a freestanding central workstation that facilitates multi-directional access and collaborative workflows. Unlike wall-mounted benches, these islands optimize laboratory space utilization while integrating essential utilities—water, gas, electrical connections, and specialized ventilation systems—into a unified platform. The design addresses persistent challenges faced by procurement managers and facility planners: inefficient spatial layouts, inadequate service distribution, and inflexible infrastructure that cannot adapt to evolving research demands. By consolidating storage, work surfaces, and service access points, these workstations enhance productivity while maintaining rigorous safety protocols essential for pharmaceutical, biotechnology, and chemical testing laboratories.

Understanding Chemistry Lab Islands: Design, Dimensions, and Materials

Defining Core Design Characteristics

Modern chemistry lab islands are well-thought-out solutions that strike a balance between the need for safety and the efficiency of the workspace. Multiple researchers can work at the same time without messing up each other's work thanks to the 360-degree accessibility. This surround-style operation is especially useful in high-throughput testing settings where multiple teams are working on experiments at the same time and need to share access to equipment. The central location makes the best use of floor space in big buildings by making natural flow paths that lower the risk of cross-contamination.

Standard and Customizable Dimensions

Dimensional requirements have a direct effect on how the lab works and must be in line with available space and equipment needs. Usually, standard setups have the following:

• Single cabinet modules: 470 mm wide, 520 mm deep, and 830 mm high.
• Double cabinet units: 900 mm x 520 mm x 830 mm
• Integrated water tank sections: 1,440 mm x 720 mm x 830 mm
• Three-drawer storage: 470 mm x 520 mm x 830 mm

With these modular parts, facility managers can set up island workstations that fit the footprint of each lab. Customizing the size allows for specific analysis instruments to fit, makes sure that different employees can work at comfortable heights, and finds the best hallway widths for moving equipment safely. When planning your purchases, keep in mind that installation gaps usually need 1,200 to 1,500 mm around the outside for servicing and emergency exits.

Material Selection and Performance

The choice of worktop material has a big impact on how long it lasts and how well it reacts with chemicals. Epoxy resin surfaces are very resistant to strong acids, bases, and organic solvents. They can also handle sudden temperature changes of up to 350°F. The solid core physicochemical board construction keeps the structure strong even when heavy equipment loads it with more than 400 kg per square metre of weight for long periods of time.

Ceramic countertop options are better at withstanding heat in situations where they will be directly exposed to flames or autoclaving. The smooth surface shape doesn't have any cracks where germs can hide, which makes decontamination procedures easier, which is very important for GMP-compliant facilities. The framework is made of cold-rolled steel that is 1.00 mm thick, which makes it stable. The epoxy resin electrostatic spray coating stops corrosion better than regular paint finishes in harsh chemical environments.

Essential Safety and Functional Features in Chemistry Lab Island Design

Built-In Safety Systems

Professional-grade chemistry lab islands are different from basic workbenches because they have full safety integration. Surfaces that are resistant to chemicals stop reagents from penetrating and breaking down the substrate. Rounded edge profiles lower the risk of getting hurt during normal operations, and spill containment lips stop liquid from moving between work zones. Integrated emergency controls, such as easily available shut-off valves and eye-wash station links, make it possible to respond quickly to accidents, which shortens the time workers are exposed.

Ventilation and Electrical Infrastructure

Proper air integration keeps workers from breathing in dangerous fumes when dealing with explosive chemicals. In island layouts, overhead service carriers or ceiling-fed utility columns bring in Hoover systems, laboratory gases (nitrogen, argon, and compressed air), and electricity without making it dangerous to trip. NFPA 70 standards say that electrical installations must include GFCI protection and isolated grounding for sensitive analytical instruments that need stable power delivery.

Maintenance and Cleaning Protocols

Quality island building doesn't catch fire, absorb water, or grow mildew, so it requires less upkeep over time. Standard laboratory disinfectants can be used to clean smooth, seamless surfaces quickly, which helps with the contamination control procedures needed in food and drug testing labs. Anti-corrosion treatments, such as acid washing, phos-phating, and electrostatic spraying, make products last much longer than alternatives that haven't been treated. This means that budget-conscious procurement teams can get better total cost of ownership.

Equipment and Accessories: What to Include in a Chemistry Lab Island?

Essential Utility Components

Functional chemistry lab islands have full-service access that gets rid of the need for utilities around the edges. Important parts include sinks made of stainless steel with chemical-resistant faucets, gas valve manifolds with multiple connection points, and electrical outlet strips placed so that equipment can be easily accessed. Storage units, such as reagent boxes and specialised chemical storage with ventilation, make the best use of vertical space and keep material handling processes organized. ANSI Z358.1 standards say that people must be able to get to hazard points in 10 seconds, and emergency eyewash stations mounted directly on islands make sure that this is done.

Modular Versus Fixed Configurations

The modular design philosophy changes how lab equipment is planned by letting it be rearranged as research needs change. When compared to pre-assembled units, knocked-down structures ship in small boxes that make shipping much cheaper. This eases buyers' worries about delivery costs for projects that span multiple sites. Adding cabinet parts or specialised work areas without replacing whole islands is one way that modular systems let you gradually increase their capacity. This gives you budget freedom for a phased laboratory buildout.

Fixed configurations provide unwavering structural rigidity, which is ideal for places with a lot of vibration where analytical balances and other precise instruments need stable platforms. The fully assembled design with integrated welding stops the mechanical fasteners from coming loose over time that happens in modular parts. When making purchases, people should think about how to balance operational flexibility with structural performance, taking into account the needs of the application and the available budget.

These configuration options address the diverse needs of laboratory construction contractors managing turnkey projects and facility managers planning long-term infrastructure investments. The adaptability proves particularly valuable for educational institutions where laboratory functions change with curriculum evolution and research institutes pivoting between funding cycles.

Comparing Leading Chemistry Lab Island Solutions for Procurement

Market Analysis and Supplier Evaluation

Established companies with large product lines and local service networks, such as Labconco, Fisher Scientific, VWR, and Kewaunee Scientific, control the North American laboratory equipment market. But buying professionals are becoming more and more aware that specialized sellers with engineered solutions can offer better value. You should look at a supplier's manufacturing skills, quality certifications (CE, ISO9001, ISO14001, ISO45001), how quickly they respond to technical support requests, and how much experience they have managing large-scale lab installations as part of their evaluation.

Pricing Considerations and Custom Solutions

Standard chemistry lab island layouts usually have prices that range from average to high-end, based on the materials used and the extras that are built in. Custom solutions can be made to fit specific space limitations, specific utility needs, or aesthetic preferences that are in line with institutional design standards. When procurement teams use OEM and ODM services, they can define exact designs that don't make any compromises between standard offerings and practical needs. Lead times of 20 to 40 days for manufactured units mean that planning needs to be done ahead of time to make sure that construction schedules are met. However, modular designs often allow for faster partial deployments that speed up laboratory activation.

Installation and Logistics Support

Professional suppliers are different from commodity vendors because they offer integrated shipping and installation support. The small size of modular systems' packing makes freight costs much lower, which is an important thing to think about when furnishing multiple buildings or handling foreign buying. Before handing over operations, professional construction teams make sure that all utilities are properly connected, that the structure is stable, and that the safety system works. This all-around service method lowers the chances of downtime and makes sure that safety standards are met, which building managers have to sign off on before letting people move in.

How to Choose the Right Chemistry Lab Island: A Decision Support Framework

Assessing Core Requirements

A thorough needs assessment that looks at things like lab size, expected working patterns, and equipment integration needs is the first step to a successful chemistry lab island purchase. Pharmaceutical labs that put GMP compliance first need surfaces that can stand up to harsh cleaners and building materials that won't shed particles into controlled areas. Research institutes that support a wide range of fields need flexible layouts that can adapt to changing experimental protocols without having to replace infrastructure.

Prioritizing Performance Factors

Lifecycle costs must be weighed against the initial investment when figuring out how durable something is. The structure is made of thickened cold-rolled steel plates that meet national standards. This gives it load-bearing strength and corrosion resistance that makes it worth the higher price by allowing for longer replacement cycles. Acid-alkali resistance is a must for chemical labs where materials that are exposed to corrosive substances every day quickly break down. The strong, non-deformable structure keeps its dimensions over decades of use, which is important for placing precise instruments.

Long-Term Ownership Considerations

Maintenance needs have a big effect on the total costs of ownership, which go beyond the purchase price. The dust-proof, easy-to-clean surfaces cut down on the time needed for routine cleaning while still meeting the high standards of cleanliness in hospital labs and cosmetics testing facilities. Upgradability features, such as the ability to add more modules and change the layout of service columns, keep infrastructure investments from becoming useless as research capabilities change. When parts need to be serviced or replaced, operational continuity depends on the warranty coverage and how responsive the supplier is. This is why post-sale support evaluation is an important part of choosing a vendor.

Conclusion

Selecting appropriate chemistry lab island workstations requires balancing immediate budget constraints against long-term operational efficiency and safety performance. The detailed specs in this guide, which cover everything from material properties and dimensional standards to safety integration and seller evaluation criteria, give procurement workers the tools they need to make decisions that help the institution reach its goals. Quality building with cold-rolled steel frames, epoxy resin coatings, and modular designs creates flexible infrastructure that can support a wide range of research tasks in pharmaceutical, biotechnology, chemical, and educational labs while also meeting strict safety and compliance standards.

FAQ

What Makes a Chemistry Laboratory Island Different from Standard Benches?

Compared to wall-mounted benches, central islands make it easier for people to work together and get things done because they can be accessed from all sides. They combine centralized utilities like water, gas, electricity, and Hoover services, so workers don't have to walk around the lab to get to resources during procedures.

Can Dimensions Be Customized for Specific Laboratory Layouts?

Absolutely. Standard module sizes are a good place to start because they are cost-effective, but custom sizes can be made to fit specific space limitations, equipment layouts, and practical needs. Modular design lets you mix standard and unique parts to get the best value for your money and the best usefulness.

How Important Is Ventilation Integration in Island Design?

Ventilation is still very important for keeping people safe when they are handling chemicals. Properly integrating a fume hood or allowing local exit air keeps dangerous vapours from building up in breathing areas. Ventilation and electrical systems must work together to make sure there are enough air changes and safe working conditions.

Partner with Uken for Your Laboratory Infrastructure Needs

Luoyang Youken Laboratory Equipment Co., Ltd. has been making chemistry lab islands for over ten years and serves research, biotechnology, and pharmaceutical companies all over North America. Our 100-person engineering team and 30,000-square-meter production center create unique solutions with modular designs that cut down on shipping costs while keeping the structure's integrity through full anti-corrosion treatments. We make sure that every island desk meets strict international quality standards by getting them certified with names like CE, ISO9001, ISO14001, and ISO45001. Email our procurement experts at ceo@ukenlab.com to talk about your project needs and get detailed technical specifications that are made to fit the workflow needs of your facility.

References

1. Scientific Equipment and Furniture Association. (2018). SEFA 8-M Laboratory and Hospital Casework Recommended Practices. Hilton Head, SC: SEFA.

2. American National Standards Institute. (2014). ANSI Z358.1 Emergency Eyewash and Shower Equipment Standard. Washington, DC: ANSI.

3. National Fire Protection Association. (2020). NFPA 70: National Electrical Code. Quincy, MA: NFPA.

4. ASTM International. (2017). ASTM D1308 Standard Test Method for Effect of Household Chemicals on Clear and Pigmented Organic Finishes. West Conshohocken, PA: ASTM.

5. Laboratory Design Coalition. (2019). Best Practices for Modern Laboratory Furniture Selection and Specification. Journal of Laboratory Design, 12(3), 45-62.

6. U.S. General Services Administration. (2021). Laboratory Furniture Design Guidelines for Federal Research Facilities. Washington, DC: GSA Public Buildings Service.
