Ducted Chemical Fume Hood: Industrial-Grade Laboratory Safety Solution

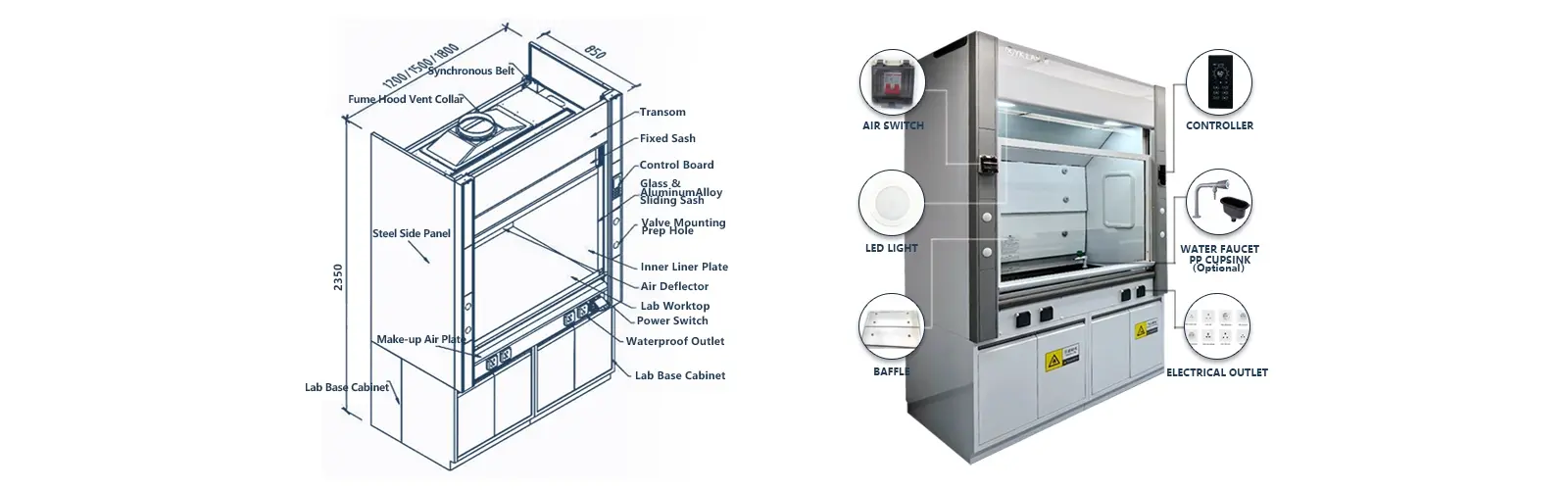

Luoyang Youken Laboratory Equipment Co., Ltd. brings you a professional Ducted Chemical Fume Hood engineered within our 30,000 m² production facility by a team of 100 specialized engineers. This industrial-grade containment system features a robust 1.0 mm cold-rolled steel construction paired with an ISO 13050 certified steel-core PU synchronous belt driving mechanism. Your laboratory benefits from a stable face velocity of 0.3–0.5 m/s, ensuring hazardous vapors are safely expelled through external exhaust ductwork.

Our product incorporates Teflon-coated anti-corrosion deflectors and adjustable functional side panels, providing superior chemical resistance. The sash anti-fall device prevents operational failures during high-frequency testing cycles. With full-width ergonomic handles and impact-resistant materials, this unit meets the demanding requirements of pharmaceutical R&D, petrochemical analysis, and toxicology laboratories worldwide.

Why Choose Our Ducted Chemical Fume Hood

Uncompromising Safety Performance

Your laboratory personnel deserve absolute protection. Our product maintains negative pressure relative to the workspace, directing all hazardous fumes away from breathing zones through high-performance ventilation networks.

Unlike filtration-based alternatives, this system handles substances that carbon media cannot capture. You gain complete peace of mind when working with high-toxicity compounds, intense heat-generating reactions, or volatile organic solvents.

Proven Engineering Excellence

Every unit undergoes rigorous containment testing aligned with ASHRAE 110-2016 standards. We utilize SF6 tracer gas validation and smoke visualization to confirm zero leakage at sash openings.

The aerodynamic foil entry design minimizes turbulence. Bypass air slots eliminate dead zones within the work chamber, ensuring consistent air circulation across all operational modes.

Industrial-Strength Construction

We build each Ducted Chemical Fume Hood with durability in mind. The 1.0 mm cold-rolled steel framework withstands impacts and crushing forces common in high-intensity testing environments.

Chemical-resistant interior liners protect against concentrated acids. The synchronized belt drive system operates reliably through thousands of sash movement cycles. Your investment delivers years of dependable service.

Technical Specifications

Intelligent Design Features

Advanced Drive Mechanism

The imported steel-core PU synchronous belt provides whisper-quiet operation. YOur Team experiences smooth sash movement without jarring stops or unexpected drops.

The integrated anti-fall safety device activates automatically during system failures. This fail-safe mechanism prevents the sash from descending unexpectedly, protecting both personnel and ongoing experiments.

Corrosion-Resistant Components

Teflon-coated lower deflectors resist aggressive chemical attack. Whether you're working with concentrated sulfuric acid or organic solvents, the surface maintains integrity over extended exposure periods.

Adjustable side panels accommodate various equipment configurations. You can customize the internal workspace layout to match specific experimental protocols or analytical instrumentation requirements.

Ergonomic User Interface

Full-width sash handles distribute gripping force evenly across your hand. This thoughtful design reduces fatigue during repeated opening and closing cycles throughout long workdays.

The low-profile handle placement doesn't interfere with equipment positioning. You maintain maximum usable depth within the work chamber while retaining easy sash access.

Wide-Ranging Applications

Pharmaceutical Research & Development

Your drug discovery teams handle volatile intermediates and reactive compounds daily. Our system provides the constant air turnover necessary for multi-shift operations in organic synthesis labs.

Prevent cross-contamination between experimental runs. The external exhaust ensures no chemical accumulation within your facility, maintaining clean baseline conditions for sensitive analytical work.

Petrochemical & Industrial Testing

High-temperature distillation processes generate fume volumes that exceed filtration system pacities. Our Ducted Chemical Fume Hood design removes heavy hydrocarbon vapors continuously, regardless of concentration levels.

Process safety engineers specify these units for pilot plant operations. You gain reliable containment during scale-up experiments where reaction behavior may be unpredictable.

Forensic & Toxicology Laboratories

Pathology departments require constant formaldehyde removal to meet occupational exposure limits. Our system maintains legal safety thresholds even during peak specimen processing periods.

Evidence analysis involving unknown substances demands fail-safe protection. The negative pressure environment prevents potentially hazardous vapors from reaching investigative personnel.

Quality Assurance Process

Manufacturing Standards

Our 30,000 m² production facility operates under strict ISO quality management systems. Each component undergoes dimensional verification before assembly begins.

Welded joints receive dye penetrant inspection. We verify structural integrity across all load-bearing elements to ensure long-term stability under continuous operation.

Performance Validation

Every completed unit undergoes face velocity mapping at multiple sash positions. We document airflow uniformity across the entire work opening, ensuring consistent protection.

Chemical resistance testing exposes interior surfaces to concentrated acids for extended periods. Only materials demonstrating zero degradation proceed to final assembly.

Installation Support

Our engineering team provides ductwork integration guidance. We calculate static pressure requirements and match exhaust fan specifications to your facility's HVAC infrastructure.

Post-installation certification includes tracer gas containment testing. You receive complete documentation proving compliance with international laboratory safety standards.

Frequently Asked Questions

Q:What makes a ducted system superior to ductless alternatives?

A:Ducted systems provide absolute removal of all chemical types, including those that carbon filters cannot adsorb. They're essential for high-volume chemical usage and heat-generating reactions.

Q:How frequently should I schedule performance certification?

A:Industry standards like OSHA and SEFA require professional certification at least annually. This ensures face velocity and containment performance meet safety specifications throughout the unit's service life.

Q:Can I use this hood for perchloric acid work?

A:Perchloric acid requires specialized washdown hoods with stainless steel liners and dedicated water spray systems. Standard units aren't suitable due to explosive salt buildup risks.

Q:What happens if face velocity becomes too high?

A:Velocities exceeding 0.6 m/s create turbulence and eddy currents. These airflow disturbances can actually pull fumes out of the hood toward the operator's face, reducing protection effectiveness.

Q:Are these systems energy-efficient?

A:While ducted hoods consume more energy than ductless units due to HVAC loads, integrating Variable Air Volume (VAV) controls reduces exhaust volume by up to 70% when the sash is closed.

Q:What customization options are available?

A:We offer multiple dimension configurations, interior liner material selections, and optional monitoring systems. Our engineering team designs solutions matching your specific laboratory workflow requirements.

Partner With Laboratory Safety Experts

Contact Us at ceo@ukenlab.com to discuss your project requirements for Ducted Chemical Fume Hood. Let's build a safer scientific environment together.
