All Steel Fume Hood
1.0 mm cold-rolled steel sheet
Floor-standing models fit various laboratory settings.
Desktop models are compact and space-saving.
Free professional laboratory layout recommendations.
Custom shock-absorbing packaging for safe long-distance transport.
Professional logistics ensures safe and timely delivery.
CE, ISO and CQC certified, meeting quality standards.
- Product Description

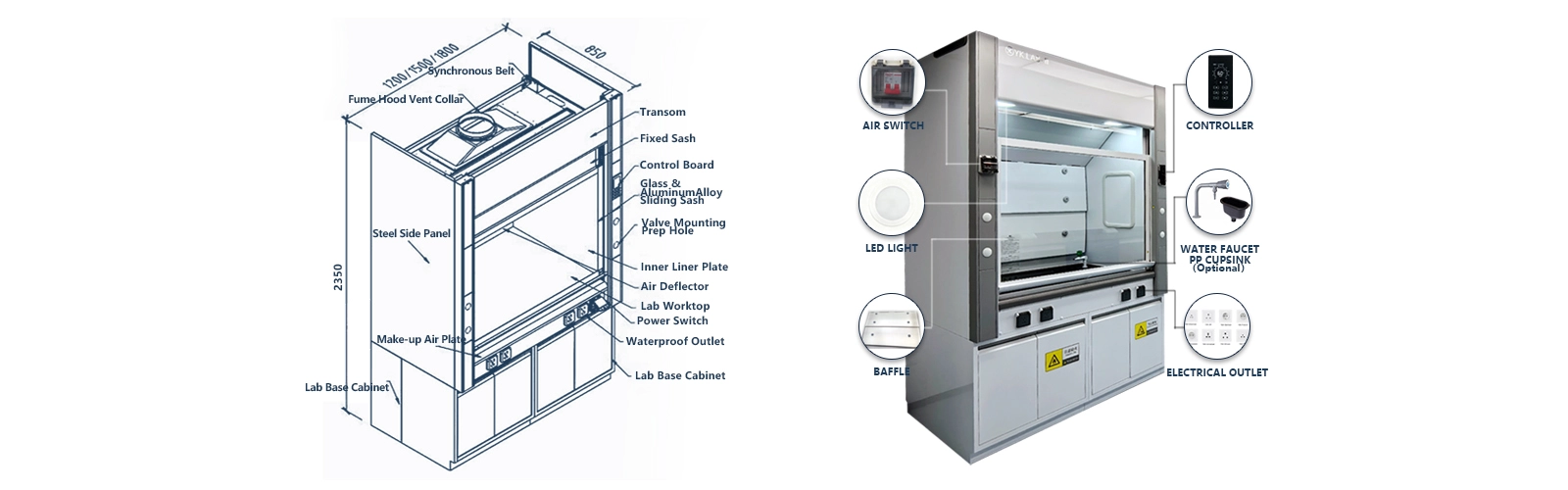

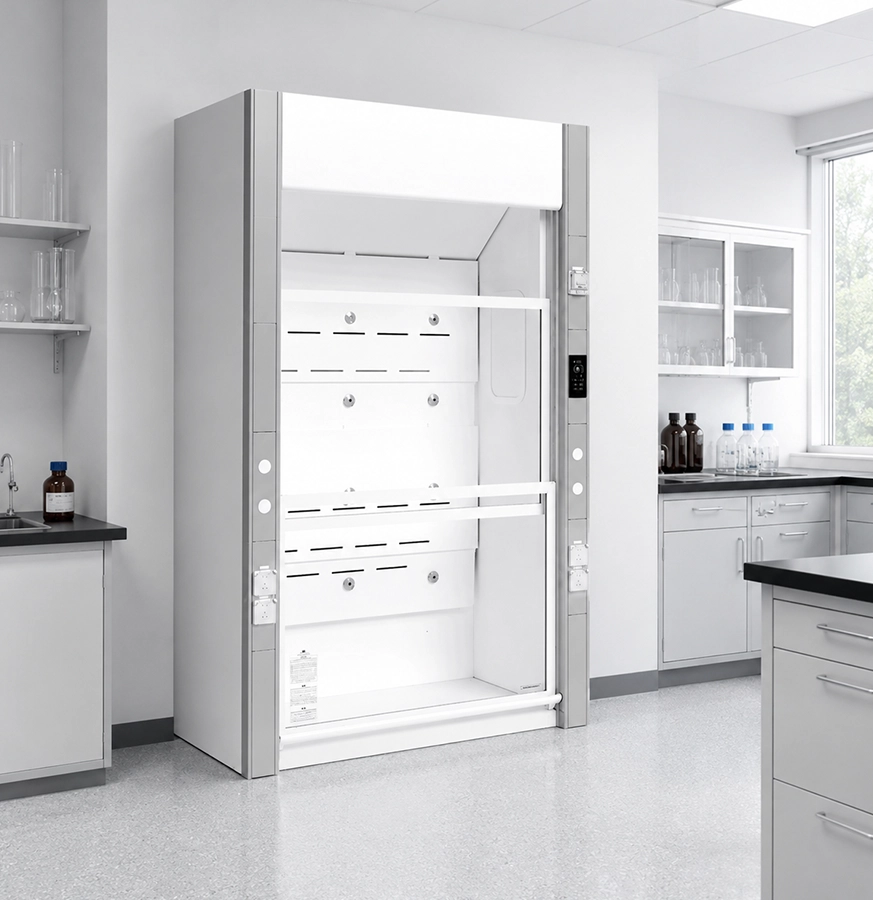

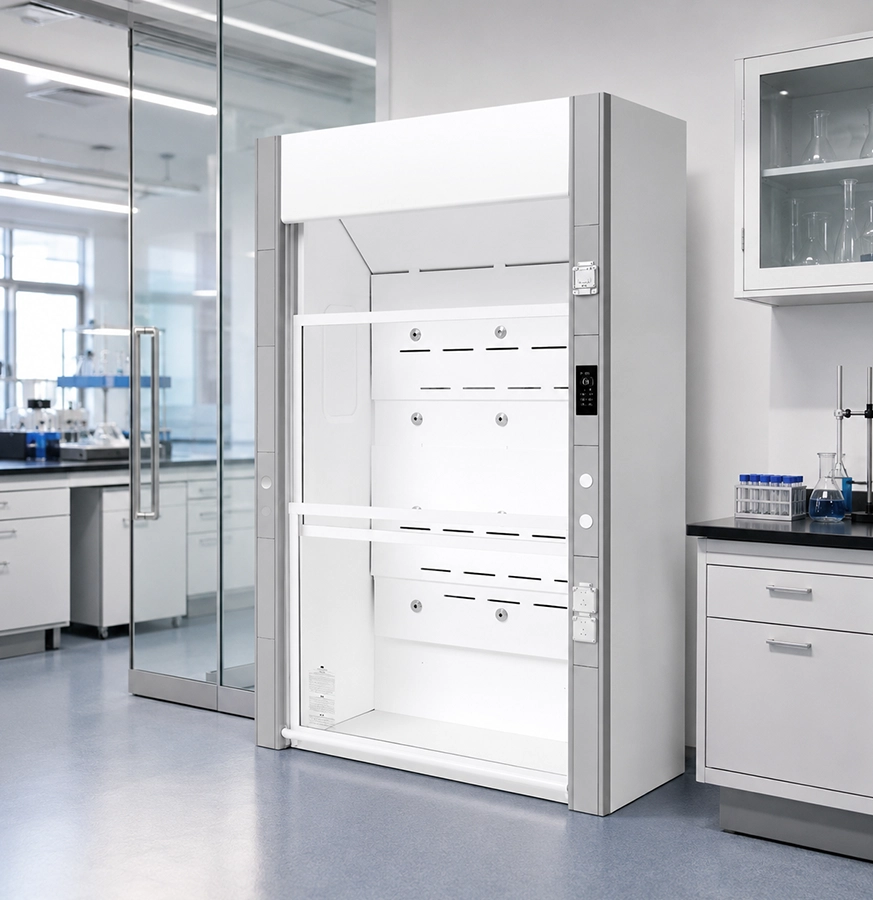

All Steel Fume Hood: Industrial-Grade Laboratory Ventilation Solution
Luoyang Youken Laboratory Equipment Co., Ltd. brings you a premium All Steel Fume Hood manufactured in our 30,000 m² generation office by 100 proficient engineers. Our item highlights 1.0mm cold-rolled steel development with progressed epoxy powder coating, conveying extraordinary strength and chemical resistance. With cleverly detecting innovation that naturally alters discuss volume based on glass window situating, our units accomplish up to 30% vitality reserve funds compared to routine models. Accessible in three standard sizes (L1200/1500/1800×D850×H2350mm), each hood is CE, ISO, and CQC certified, guaranteeing compliance with worldwide security benchmarks whereas giving dependable security in pharmaceutical, chemical, and investigate laboratories.
What Makes Our All Steel Fume Hood Different?
Our All Steel Fume Hood stands out as a essential control gadget designed for heavy-duty research facility situations. Not at all like wooden or polypropylene choices, it's built from high-grade cold-rolled steel with electrostatic epoxy powder coating.
This development gives predominant fire resistance and auxiliary soundness. Your lab benefits from a arrangement that won't twist beneath tall temperatures or retain chemicals through permeable materials.
The hood serves as your cutting edge defense. It captures and debilitates dangerous vapors, gasses, and particulates with tall productivity, ensuring your investigate group each single day.
Technical Specifications
| Parameter | Specification |
|---|---|
| Material | 1.0mm Cold-Rolled Steel Sheet |
| Coating | Electrostatic Epoxy Powder (75-80μm thickness) |
| Standard Sizes | L1200×D850×H2350mm L1500×D850×H2350mm L1800×D850×H2350mm |
| Safety Glass | 5-6mm Explosion-Proof Tempered Glass |
| Face Velocity | 0.4-0.6 m/s |
| Load Capacity | >200kg per square meter |
| Noise Level | <60dB (with proper fan integration) |
| Operating Temperature | -10°C to +70°C |
| Certifications | CE, ISO, CQC, SEFA Compliant |
Advanced Features for Modern Laboratories
Intelligent Sensing System
Your Fume Hood naturally alters discuss volume based on the glass window opening. This brilliantly detecting accomplishes exact ventilation whereas lessening vitality utilization by up to 30%.
The framework persistently screens band position. It conveys precisely the wind current you need—nothing more, nothing less.
Remote Monitoring & Control
Check your rage hood status from anyplace utilizing your smartphone or computer. You can alter parameters remotely, sparing time and upgrading operational flexibility.
This highlight is especially important when overseeing different research facility spaces. Your office supervisor picks up total oversight without strolling floor to floor.
Memory-Enabled Control Panel
The advanced control board records your test working parameters naturally. This memory work encourages information traceability and disentangles compliance documentation.
Your group can audit past settings immediately. This diminishes setup time for repeating tests and minimizes human error.
Integrated LED Lighting
Built-in Led lighting gives clear, shadow-free brightening for exact exploratory work. The energy-efficient plan decreases operational costs whereas keeping up adequate brightness.
The lighting framework is fixed inside the All Steel Fume Hood structure. It withstands chemical introduction superior than conventional bulb fixtures.
Why Industries Choose Steel Over Alternatives
Petrochemical investigate labs require non-combustible materials when taking care of unstable hydrocarbons. Our steel development meets this basic security prerequisite without compromise.
Pharmaceutical amalgamation offices advantage from easy-to-decontaminate surfaces. The smooth epoxy wrap up bolsters sterile situations whereas bearing overwhelming expository hardware on fortified worktops.
Academic and mechanical testing centers require solidness. Our strong development handles high-frequency utilization by different specialists, advertising 15-20 a long time of benefit life indeed beneath ceaseless operation.
Chemical research facilities appreciate the basic solidness. Steel's moo coefficient of warm development anticipates distorting amid temperature variances that would compromise other materials.
Our Manufacturing Excellence
Operating from a 30,000-square-meter generation base, we utilize 100 experienced engineers who get it research facility security necessities. Each unit experiences thorough quality control some time recently shipment.
Our group gives free proficient research facility format proposals. We consider your workflow, security conventions, and space imperatives to optimize hood placement.
Custom shock-absorbing bundling secures your venture amid long-distance transport. Proficient coordinations guarantees secure and opportune conveyance to your office anyplace globally.
Quality Assurance Process
We conduct comprehensive testing on each unit:
Face Speed Testing measures wind stream at the scarf opening to keep up the steady 0.4-0.6 m/s speed required for containment.
Flow Visualization employments smoke tests to affirm zero turbulent whirlpools or spillage focuses in the wind current pattern.
Coating Grip Testing takes after ASTM D3359 benchmarks, guaranteeing the epoxy wrap up withstands chemical stretch without peeling.
Load-Bearing Examination confirms the base cabinet bolsters over 200kg per square meter for your overwhelming equipment.
Containment Testing performs ASHRAE 110 tracer gas tests with SF6 to confirm spillage rates underneath 0.05 ppm.
Frequently Asked Questions
Q: Why choose a product over a PP model?
A: While PP excels in high-acid environments, steel offers superior fire resistance and structural stability for heavy equipment. Steel also has a lower coefficient of thermal expansion, preventing warping.
Q: How do you maintain the surface finish?
A: Regular cleaning with mild detergents keeps the surface pristine. The epoxy coating resists most acids and alkalis, but wiping dry prevents prolonged chemical exposure.
Q: Can your hoods integrate with VAV systems?
A: Yes, they're fully compatible with Variable Air Volume controllers. This optimizes energy efficiency by adjusting airflow based on sash height automatically.
Q: What is the noise level during operation?
A: High-quality models operate at less than 60dB when integrated with a properly sized centrifugal fan. This maintains a comfortable working environment.
Q: Does installation require professionals?
A: Yes, professional installation ensures bypass mechanisms and exhaust ducting meet ISO 14175 or local safety standards. Proper commissioning is mandatory for safety compliance.
Ready to Upgrade Your Laboratory Safety?
Contact Our Team at ceo@ukenlab.com today to discuss your specific requirements for All Steel Fume Hood and receive a customized quote.
