When Used Properly, Chemical Fume Hoods Protect You From What?

When used properly, a chemistry laboratory fume hood protects you from inhalation of toxic vapors, exposure to corrosive chemical aerosols, fire and explosion risks from flammable solvents, and cross-contamination between sensitive samples. The hood traps and gets rid of dangerous substances before they reach your breathing zone by keeping a negative-pressure airflow zone compared to the rest of the lab space. For quality control managers in chemical and pharmaceutical plants, this protection directly helps with GMP compliance, meeting health and safety standards at work, and being ready for an audit.

Understanding the Protection Chemical Fume Hoods Offer

How Containment Works

When you open the sash, air from the room comes into the fume hood. This controls the flow of air so that harmful substances don't leave the lab. An important part of performance is the face velocity, which ASHRAE 110 says should be kept between 0.3 and 0.5 m/s (60 and 100 fpm). If you set it too low, the vapors will escape. If the fumes are too high, vibrations bring them back to the person who is using it.

Ducted vs. Ductless Designs

This duct hood sends dirty air right outside the building, which makes it good for work with solvents and HPAPI synthesis that needs to work with a lot of material. There are no vents on these types, and they use activated carbon filters. When the content is low, they work well, but not when the acid has a high boiling point or when the gas has a low molecular weight. It is not only bad for performance to choose the wrong type, but it is also against the rules.

Real-Time Monitoring and Alarm Systems

In modern labs, ventilation systems check the flow of air and have both loud and visible alarms that go off when face velocity drops below safe levels. When there are audits, this is very important because the alarm system and airflow numbers are both checked to make sure they work. In any place where GMP rules apply, a hood that doesn't have a tracking device that can work is an unacceptable risk.

Core Benefits of Properly Used Chemical Fume Hoods in Chemistry Labs

When it's set up and used right, a chemistry laboratory fume hood does more than just keep the person standing in front of it safe. It keeps the lab safe, makes sure the results are correct, and keeps your center in good standing with the government. As a procurement manager or QC lead, you should think about these main perks for your business:

• Personnel protection: The primary function is preventing inhalation and skin exposure to toxic, flammable, or carcinogenic substances. OSHA's Laboratory Standard (29 CFR 1910.1450) identifies engineering controls — including fume hoods — as the first line of defense against chemical hazards.
• Infrastructure preservation: Corrosive vapors from acids and organic solvents degrade lab surfaces, instruments, and electrical components over time. A well-sealed hood with corrosion-resistant interior surfaces contains that damage within the working chamber.
• Sample integrity: In trace metal analysis and pharmaceutical QC testing, even minor cross-contamination invalidates results. A hood with stable, turbulence-free airflow maintains a clean working zone, protecting sample accuracy.
• Energy efficiency: Variable Air Volume (VAV) systems adjust exhaust rates based on sash height, reducing HVAC energy consumption by up to 50% compared to constant-volume designs — a measurable operational cost benefit over a 10-year equipment lifecycle.

These perks deal with the issues that keep coming up head-on. Not enough airflow paperwork, contaminated equipment, and rising energy costs are some of the problems that QC managers face during regulatory reviews. This is because the lab's ventilation runs 24 hours a day, seven days a week.

Best Practices for Using and Maintaining Chemical Fume Hoods

Correct Sash Positioning

Don't forget to keep the sash at or below the height given. One rule from ANSI/ASHRAE 110 says that you can only measure face motion at a certain sash level. Moving the sash above that point quickly makes control less effective. Before they start cooking, you should teach this one rule to everyone who works in the lab, even the new scientists and top quality control people.

Routine Inspection Protocols

Certification has to be done every year and again after any changes are made to the building's HVAC system. This is required by both OSHA rules and ISO 14175. As part of the check, there should be flow visualization with a smoke generator to find dead zones, face velocity tracking at 12 or more measurement points, and tracer gas containment testing with leak rates below 0.05 ppm at the breathing zone.

Identifying Common Failure Modes

The hood warning usually goes off because the exhaust duct is blocked, the fan belt on the roof unit is worn, or the sash height is too high while the unit is running. During a study, work stops right away when a hood alarm goes off. This is the kind of downtime that QC managers try to avoid when they need to get a lot of work done quickly. Having extra belts on hand and keeping track of when the ducts are checked helps keep the plant from shutting down without warning.

Choosing the Right Chemical Fume Hood for Your Laboratory Needs

Matching Hood Type to Application

When pharmaceutical QC labs work with flammable chemicals and make active pharmaceutical ingredients, they need ductless hoods with electrical connections that won't blow up. Petrochemical testing labs that work with crude oil distillates need buildings that are strong and won't rust. It's important for educational labs to have tools that are simple to use and safe areas that keep less skilled users safe.

Evaluating Construction Quality

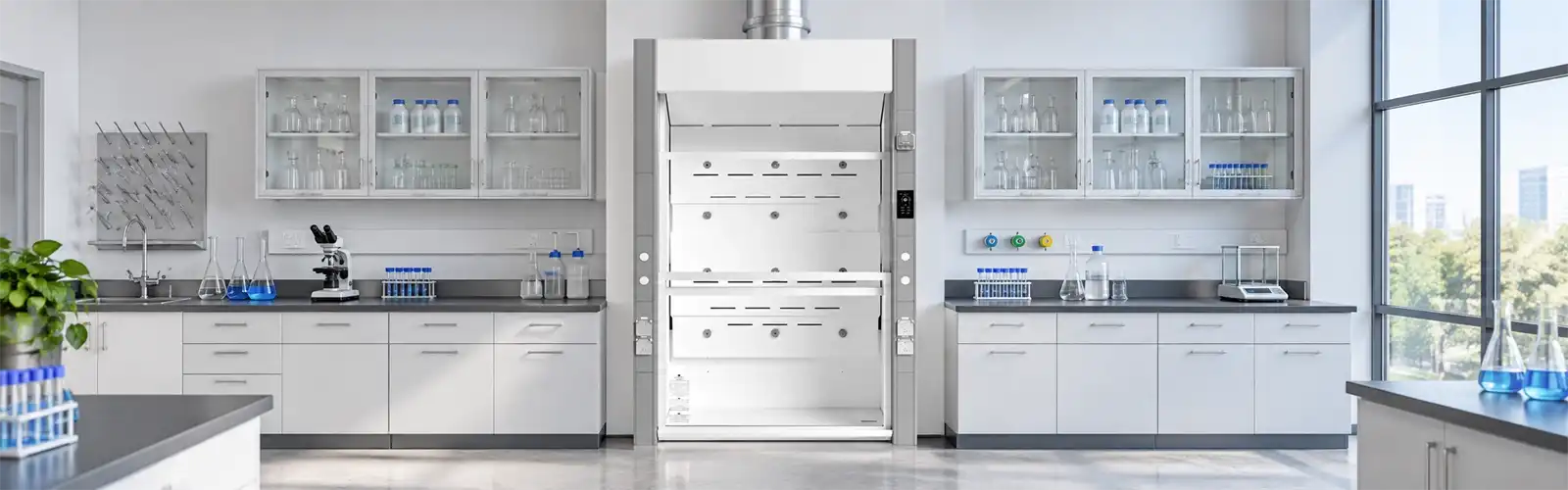

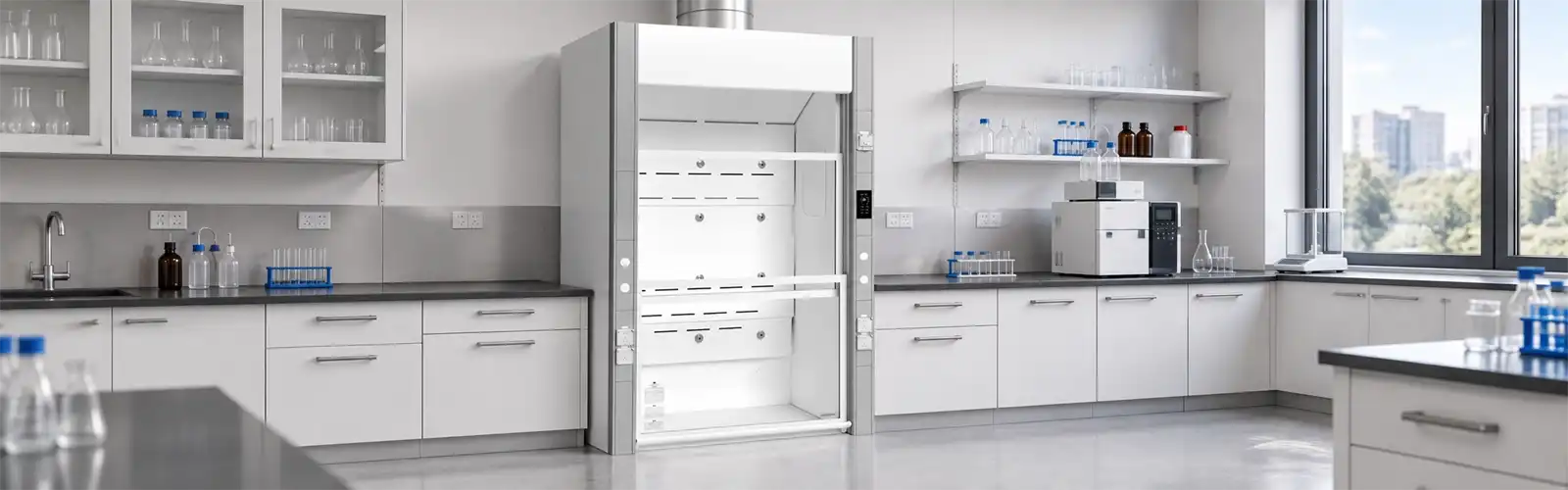

A 1.0 mm cold-rolled steel sheet is used by Luoyang Youken Laboratory Equipment Co., Ltd. to make the Youken chemistry laboratory fume hood. This gives it strength without making it too heavy to install. On the inside, acidic, alkaline, and organic liquids can't do any harm. There are three widths of the unit: 1200 mm, 1500 mm, and 1800 mm. The space inside is 645 mm deep, and the height of the counter is 850 mm, so you can stand and use it easily.

Usability Features That Matter

Not only are ergonomic handles, slide doors that can be tilted, and electrical outlets with covers that protect them nice to have, but they also have a direct effect on how well you can do your everyday work and how safe it is to use electricity. With the simple touch panel control system, you can see how the lights are working and how the air is moving all at once. It is important for visual checks or thorough physical processes that there are no shades over important work areas. This can be done with enough built-in lighting.

Installation and Compliance – Ensuring Long-Term Safety and Performance

Site Preparation and Integration

Make sure that the HVAC system in your building can handle the static pressure needs of that type of hood before you put it in. The plant's quality control checks see if the Youken unit works with regular HVAC systems when it comes to static pressure. What makes the system work well is where the pipes go, how much make-up air they get, and how close they are to the building walls.

Certification and Regulatory Compliance

If you want to get an ISO, CE, SEFA, or SGS approval, any Youken fume hood will do. This proof can be shown by procurement managers to regulatory and quality auditors. ASTM EFA 1 says that the "As-Manufactured," "As-Installed," and "As-Used" testing steps provide a complete proof trail from the factory floor to real lab use.

Modular Design for Long-Term Flexibility

It's easy to move and put back together as lab plans change because it's made of stronger cold-rolled steel and doesn't have any wooden parts. Fire and water protection are already built into the material; they are not added in a different way. When you clean with acid, phosphate, or electrostatic spray, they all work together to protect against corrosion in many layers that last for years of daily chemical contact.

Conclusion

Any fume hood will only fully protect you if you choose the right one, set it up correctly, and always use it the way it was designed to be used. When QC managers are building new labs or getting rid of old ones, they should think about how stable the airflow is, how long the materials last, how easy it is to get licensing paperwork, and how reliable the customer service is after the sale. Youken's chemistry laboratory fume hood solves all of these problems. It is made by a 100-engineer production team in a 50,000-square-meter building. It's not necessary to set two different goals to keep your workers safe and pass your next audit. Both are done by the right hood at the same time.

Frequently Asked Questions

1. What face velocity should a fume hood maintain?

0.4 to 0.5 m/s (80 to 100 fpm) is what the industry says is best. It's not possible to contain below this range. Vibrations faster than 0.6 m/s can pull vapours back toward the person using it.

2. Can a ductless fume hood replace a ducted model in a pharmaceutical QC lab?

Not at all. Ductless models depend on carbon filter saturation limits and can't handle high-volume liquid boiling or some low-molecular-weight gases that are common in pharmaceutical synthesis safely.

3. How often does a fume hood require certification?

Annual certification is required under OSHA and EN 14175, plus re-testing after any HVAC modification.

4. What material should be used for perchloric acid work?

A wash-down hood made of 316 stainless steel with an integrated water spray system is mandatory to prevent the buildup of explosive perchlorate salt deposits.

5. Why does the hood alarm activate during operation?

The most common causes are a blocked exhaust duct, a broken fan belt, or the sash raised above the validated working height. Address these three points first before assuming sensor failure.
