What Is a Laboratory Island Bench? A Complete Guide to Lab Workstations

When planning or upgrading your laboratory space, you'll likely encounter the term "laboratory island bench." This centrally positioned workstation stands apart from wall-mounted units, offering 360-degree accessibility that transforms how teams collaborate and execute research. Island benches solve critical challenges—inefficient spatial layouts, limited multi-user access, and the complexity of integrating utilities like water, gas, and electrical services at the workspace core. By positioning these benches away from perimeter walls, they enable optimized traffic flow, facilitate overhead service installation, and create flexible environments that scale with your research demands.

Understanding Laboratory Island Benches

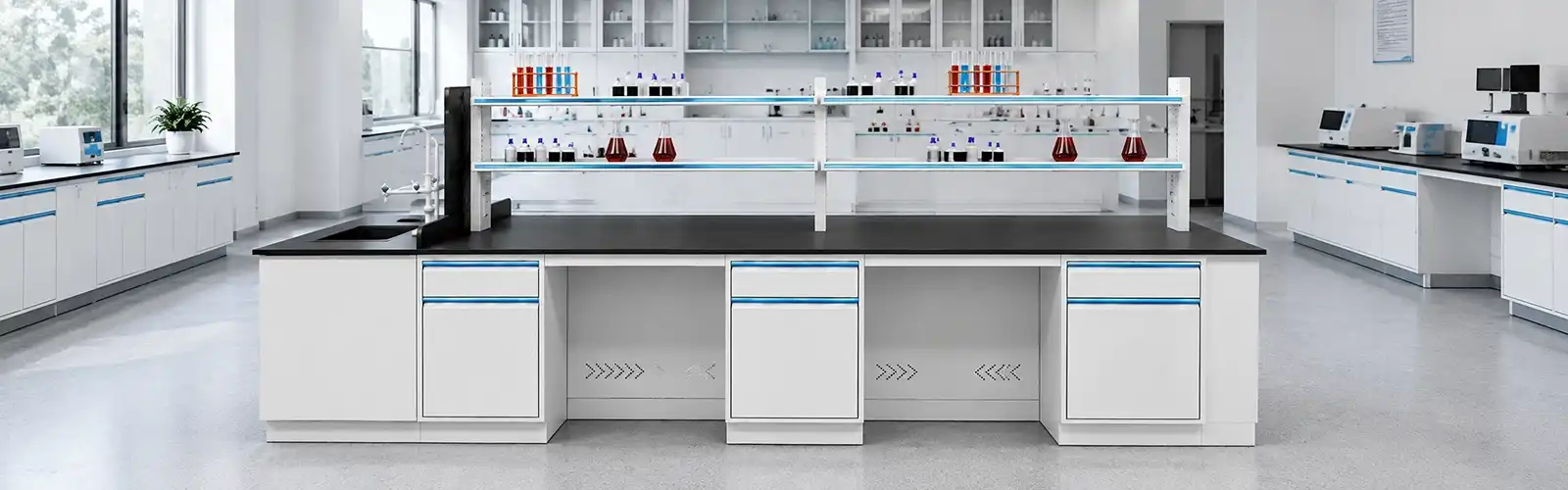

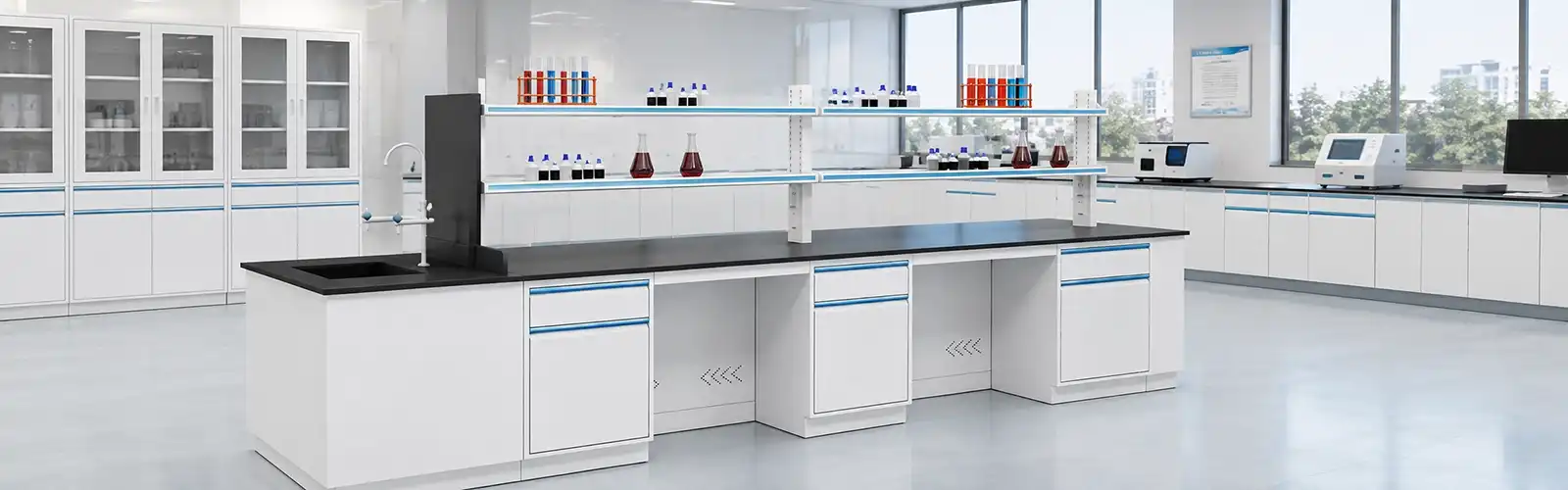

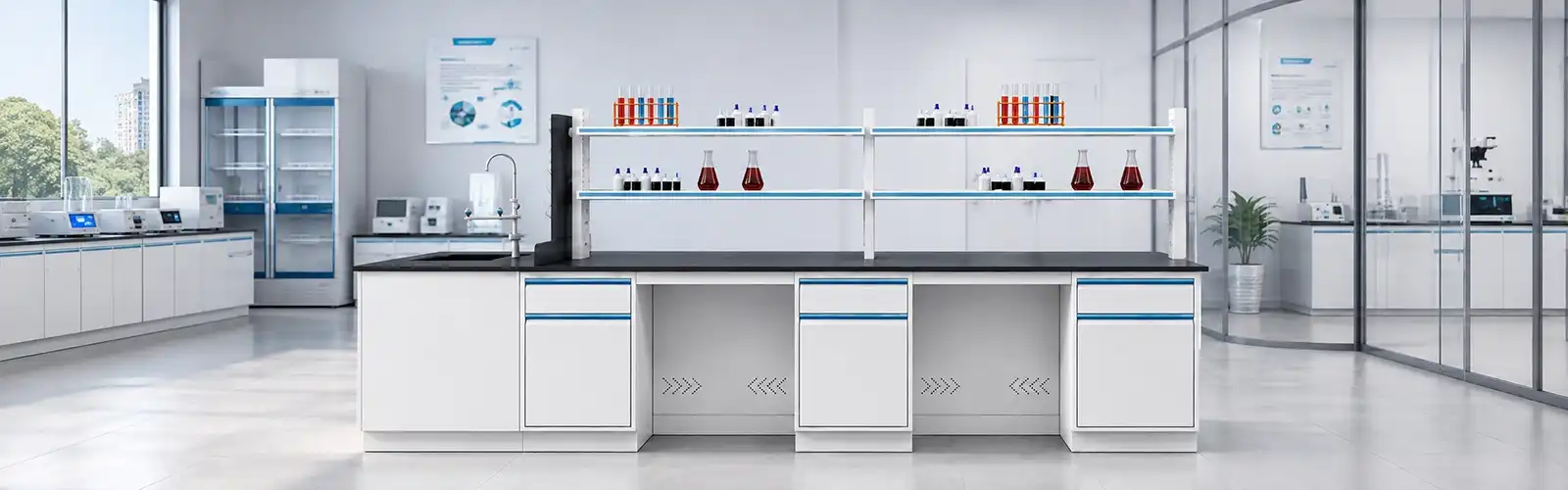

A Laboratory Island Bench is a stand-alone desk that is put in the middle of your lab floor plan and can be reached from all sides. Unlike regular wall benches, which only let you reach one end, island designs let more than one researcher work at the same time around the same experiment or piece of equipment.

Core Features That Drive Efficiency

The thing that makes island chairs unique is that they are not attached to any building walls. With this design, utility links like plumbing for sinks, gas lines for Bunsen burners, and electrical outlets for analytical instruments can go straight to the desk center through floor ducts or overhead service carriers.

On the bottom level of modern units, there are storage options like reagent cabinets and drawers designed just for glassware. The worktop itself has a large surface area, usually between 1,440mm and custom widths over 3,000mm, so it can fit everything from telescopes to centrifuges. In many designs, there are built-in sinks with PP drip cups and multiple levels of shelves above to make getting to the reagents easy.

Applications Across Diverse Laboratory Settings

Pharmaceutical research and development labs use island benches for high-throughput screening, which means that multiple scientists can use the same centralized testing tools at the same time. The setup allows for parallel processes that don't interfere with each other, which directly boosts output.

Chemical testing labs are safer because of the way the building is set up. When working with volatile chemicals, techs can stand next to each other and still be able to see each other while doing different jobs. This set-up lowers the risk of cross-contamination and lets people respond quickly to chemical spills.

For handling specimens, clinical diagnostic labs use island benches. The smooth surfaces make it easier to follow the strict decontamination procedures needed in medical settings. The built-in plumbing supports automated sample preparation systems that need a constant flow of water.

How to Design an Effective Laboratory Island Bench?

A good island bench design strikes a mix between planning for dimensions, engineering materials, and incorporating safety. Instead of using generic catalog specs to make your procurement choice, you should look at how work actually gets done.

Dimensional Planning and Layout Optimization

Standard area depths are between 750 mm and 900 mm on each side, which lets you reach your goals without going too far. For working on both sides, the total width of the bench is usually between 1,500mm and 1,800mm, with a service chase in the middle for running wires.

The recommended height for general-purpose work is 830 mm, which is in line with ergonomic standards for Laboratory Island Bench. However, frames that can be adjusted to different heights can be used for sitting microscopes or standing procedures. Allow at least 1,200 mm of space on all sides when figuring out the general size to meet safety egress and wheelchair mobility standards.

The modular approach to designing layouts has a lot of benefits. Instead of set structures, modular systems are made up of separate cabinet parts. Single cabinets are 470mm x 520mm x 830mm, double cabinets are 900mm x 520mm x 830mm, and water tank modules are 1,440mm x 720mm x 830mm. As study goals change, you can rearrange these parts, protecting your capital investment from becoming useless.

Material Selection for Chemical Resistance

The material of the worktop has a direct effect on how long it will last in acidic settings. Solid core physical and chemical boards made from phenolic or epoxy resin can handle being exposed to strong acids, bases, and organic solvents for 24 hours. Heavy machine loads of more than 400 kg per linear meter can be supported by thicknesses between 12.7 mm and 25 mm.

The structural framework needs the same amount of care. Our island benches are made from 1.00mm cold-rolled steel plates that have been treated with acid washing, phosphating, and electrostatic epoxy resin powder coating to keep them from rusting. This combination is very resistant to chemical splashes and keeps the structure's integrity under changing loads.

Full steel construction doesn't have to worry about swelling, warping, or microbes taking over like wood-composite alternatives do when they are exposed to water or biological agents. The material doesn't catch fire and keeps its shape even when the temperature changes, which is usual in climate-controlled labs.

Safety Features and Ergonomic Considerations

Chemical splash guards that are attached to the sides of the benches keep liquids from spilling over onto people or the floor. When set up at a height of 100 mm, these barriers keep spills in while not getting in the way of equipment or sightlines.

For island benches that handle volatile compounds, ventilation becomes very important. Overhead canopy hoods or snorkel extractors are connected to central exhaust systems and collect fumes where they come from before they spread to the rest of the lab.

Ergonomic design goes beyond the height of the surface. There should be at least 650 mm of room between your knees and the worktop, both in width and depth, so you can sit comfortably. Rounded corners on the sides of cabinets lower the risk of getting hurt when things are moved quickly, which is common in time-sensitive situations.

Comparing Laboratory Island Benches for Procurement Decisions

When purchasing island benches, procurement professionals have a number of configuration options. By knowing these differences, you can make sure that the skills of your tools match the needs of your operations.

Island Versus Wall Bench Configurations

Wall benches make the most of limited space around buildings by maximizing perimeter use. They also offer lower installation costs because utilities can be easily connected through existing building infrastructure. With this layout, however, access is limited to a single side, which means that fewer people can use it at the same time.

Island chairs take up a lot of floor room but make you more productive in the same way. The central location makes it possible to watch over multiple studies at the same time, cuts down on the distance between connected workstations, and works with team-based methods that depend on being able to see each other to coordinate.

Modular Versus Fixed Construction

Fixed island benches come as welded pieces, which cuts down on the time needed to put them on-site but makes them harder to get through normal doors and lifts. Because they are fixed, they make it harder to change how the lab is set up in the future.

When you ship modular designs as knocked-down parts in small boxes, you save a lot on freight costs, which is something to think about when buying things from other countries. Assembly only needs simple tools and can be done by building maintenance staff by following the instructions given. This saves money on the cost of hiring a specialist contractor.

After the initial setup, flexible Laboratory Island Bench bases can be changed to meet new needs. Instead of replacing whole bench systems, you can add more storage space by buying compatible cabinet modules. This ability to grow protects the value of assets over time, especially for research institutions that have to keep buying new equipment because of changes in funding.

Material Performance Comparison

In pharmacy and laboratory cleanrooms that need to follow GMP, stainless steel benches work very well. The surface doesn't have pores, so germs can't stick to it. It can also handle strong disinfectants like bleach and quaternary ammonium chemicals. But stainless steel can rust in coastal areas or when it comes in contact with some halogenated solvents because of chloride-induced pitting corrosion.

Epoxy resin powder-coated steel is more resistant to chemicals than other types of steel, even strong sulfuric acid and sodium hydroxide. The coating makes a constant, smooth shield that keeps the metal below from being exposed. While this finish isn't used as much in aseptic processing areas, it's the most common in quality control labs in schools, research centers, and businesses that deal with a wide range of chemicals every day.

Ceramic worktops are the most heat-resistant surfaces, so you can put things right on them after taking them out of an autoclave or hot plate. Because it breaks easily when hit and costs a lot, the material is usually only used in specialized thermal analysis machines and not on general-purpose desks.

Procurement Guide: Buying and Installing Laboratory Island Benches

For strategic procurement to work, you need to know what your suppliers can do, how much they charge, and how to set up their products. This part talks about practical factors that affect the total costs of ownership.

Identifying Qualified Suppliers

Manufacturers of good laboratory furniture keep quality management system standards like ISO 9001 for production processes, ISO 14001 for environmental management, and ISO 45001 for health and safety at work. With these credentials, you can be sure that the production process is consistent and that mistakes are avoided.

Product-specific certifications, such as the CE mark, show that a product meets European safety, health, and environmental standards, which are becoming more and more important for international projects. The Scientific Equipment and Furniture Association (SEFA) sets performance guidelines for things like chemical protection, structural loads, and drawer cycle life.

When looking at different providers, make sure they have proof of chemical spot tests that show how well their worktops match up with your specific list of reagents. For high-exposure situations, custom validation is necessary because standard test panels might not include chemicals that are specific to your needs.

Cost Drivers and Pricing Strategies

The base price goes up or down depending on the size, complexity, and type of materials used. Depending on how much customization you want, a standard 3,000mm two-sided island bench with an epoxy resin worktop and modular steel cabinets costs between $3,800 and $6,500.

Customization has a big effect on quotes for Laboratory Island Bench. Engineering and manufacturing take longer when the measurements aren't standard and the framework needs to be changed. Integrated utilities, like pipe rough-ins, gas valves, and electrical outlets, cost an extra $800 to $1,500 per station, based on the local building code and the number of connections.

Buying in bulk can save you a lot of money. As makers spread out the prices of their tools and make the best use of their production schedules, orders of ten or more units often get discounts of fifteen to twenty percent. If the project schedule allows it, spreading out purchases over several lab phases makes the most of this advantage.

When negotiating bulk orders, these are the most important things to keep in mind: clear delivery schedules that work with construction milestones to avoid expensive storage fees; detailed technical specifications that keep the project on track; and clear payment terms that are tied to inspection milestones to avoid disputes over defects. All of these things lower the overall risk of the project and make sure that prices are competitive.

Installation Best Practices and Maintenance

Preparing the spot for installation speeds up distribution. Make sure the floor is level within a 2mm range all over the installation area. If there is too much variation, the cabinets won't line up properly, and the joints will wear out over time. Utility rough-ins should end within 300 mm of where they are supposed to join, so there isn't a lot of visible pipe that is hard to clean.

In modular assembly, things are put together in a way that makes sense: base cabinets are placed and leveled, neighboring units are held together with connector bolts, worktop sections are installed with the right sealant at the seams, and utility connections are finished according to local water and electrical codes. A normal 3,000mm island bench fitting can be done by a two-person crew in four to six hours.

Regular repair keeps things looking good and working properly. Cleaning surfaces every day with pH-neutral, non-abrasive soaps gets rid of chemical leftovers before they etch them. Every three months, the hardware on cabinets is checked for loose hinges or drawer slides that need to be adjusted. By checking utility connections once a year, early-stage breaks or gas line degradation can be found, saving money on repairs and safety issues.

Typical Lead Times and Logistics

Standard setups with popular sizes and finishes are sent out 20 to 30 days after the order is confirmed. When custom specs call for parts that aren't in stock, production times are pushed back to 35 to 45 days while engineering finishes up manufacturing plans and procurement gets the necessary materials.

International operations add 15 to 25 days for ocean freight from factories in China to ports in the US, plus time for transporting the goods by land to their end destinations. When you figure out the total landed costs, you should take into account the fact that modular designs ship in smaller cartons than fully assembled units, which lowers the container volume and freight class.

Managing big institutional projects has helped us get better at coordinating completion. We schedule shipments to coincide with the end of the construction phase. This way, goods don't arrive early and need to be stored off-site. This method lowers the risk of damage from handling and makes sure that the furniture arrives when the installation crews are ready to start working.

Conclusion

Laboratory Island Benches are long-term investments in infrastructure that have a direct effect on the output of research, the safety of workers, and the freedom of operations. The central location makes it possible for collaborative work that wouldn't be possible with wall benches that are close together, and the modular design keeps the workstations from becoming useless as your research portfolio changes. By choosing materials based on their chemical resistance, structural sturdiness, and ease of maintenance, you can be sure that they will keep working well in a wide range of demanding situations, from drug creation to petrochemical analysis. Procurement pros find desk solutions that offer measured value over long operating lifecycles by understanding dimensional requirements, comparing setup options, and working with approved makers. Your choices about specifications today lay the groundwork for future science progress.

FAQ

Which materials offer the best chemical resistance for island bench worktops?

Solid core phenolic and epoxy resin boards are very resistant to powerful acids, bases, and organic solvents; they can be exposed to them for 24 hours without breaking down. These materials meet SEFA guidelines for chemical protection at the lab level and can hold more than 400 kg per meter of static load.

Can island bench configurations be customized for specific laboratory requirements?

You can make a lot of changes to modular island bench systems, like changing the sizes, storage options, utility places, and finish colors. You can ask for custom widths, add specific sinks or gas outlets, and choose from different cabinet arrangements, such as single units that are 470 mm wide, double cabinets that are 900 mm wide, or water tank modules that are 1,440 mm long.

What are typical lead times for custom laboratory island benches?

Depending on how complicated the design is, standard production times run from 20 to 40 days. Orders with common sizes and finishes are finished more quickly, but orders with specific requirements that need non-catalog parts take longer because engineering has to finish up the unique fabrication needs.

How does modular construction benefit long-term laboratory operations?

As study needs change, modular designs let the field be rearranged by adding or removing storage sections without having to replace whole bench systems. It's also cheaper to ship because the structure can be taken apart, and it's easier to move when lab areas need to be renovated in the future.

Partner with a Trusted Laboratory Island Bench Manufacturer

Uken specializes in providing complete laboratory furniture solutions. They have 50,000 square meters of manufacturing space and 100 professional engineers whose sole job is to improve scientific workspaces. Our Laboratory Island Benches are made of all steel and electrostatically sprayed with epoxy resin. They are very chemically resistant and will last for a long time in pharmaceutical, biotechnology, educational, and industrial settings. We make sure that every desk meets the highest quality and safety standards around the world by obtaining certifications such as ISO 9001, ISO 14001, ISO 45001, and CE marking.

Our flexible design philosophy cuts down on shipping costs and lets you make changes to the field that fit your changing study needs. No matter if you need a single prototype installed or full furnishing for a research complex with multiple buildings, Our Team can help with technical advice, layout planning, and installation throughout the entire project lifecycle. We welcome inquiries from purchasing managers, facility planners, and lab distributors who are looking for dependable island bench suppliers who can handle tight deadlines and complicated specifications. Email our team at ceo@ukenlab.com to talk about your unique needs, get full technical drawings, or get bulk pricing for projects that are coming up. You can look at our full range of products at ukenlab.com to find more laboratory furniture options.

References

1. Scientific Equipment and Furniture Association (2019). SEFA 8 Laboratory Furniture Standard: Recommended Practices for Laboratory Furniture. Hilton Head Island: SEFA Publications.

2. DiBerardinis, L.J., Baum, J.S., First, M.W., Gatwood, G.T., Groden, E., & Seth, A.K. (2013). Guidelines for Laboratory Design: Health, Safety, and Environmental Considerations (4th ed.). Hoboken: John Wiley & Sons.

3. National Research Council (2011). Prudent Practices in the Laboratory: Handling and Management of Chemical Hazards. Washington, D.C.: National Academies Press.

4. Edginton, A.N. & Williams, K.R. (2008). Strategic Planning in Laboratory Design. Laboratory Medicine, 39(6), 361-364.

5. American National Standards Institute (2018). ANSI/AIHA Z9.5 Laboratory Ventilation Standard. Falls Church: American Industrial Hygiene Association.

6. International Organization for Standardization (2015). ISO 14644-1: Cleanrooms and Associated Controlled Environments – Part 1: Classification of Air Cleanliness. Geneva: ISO Publications.
