Walk-In Fume Hood: Features And Benefits Explained

A walk-in fume hood is a floor-mounted laboratory ventilation enclosure designed to contain large-scale equipment, tall apparatus, and hazardous chemical processes that standard benchtop units simply cannot accommodate. Unlike conventional hoods, this floor-to-ceiling containment system allows researchers to position pilot plant reactors, distillation columns, and 55-gallon chemical drums safely inside the enclosure. With exhaust airflow rates of 220–360 m³/h and a 60% make-up air ratio, it delivers both high containment performance and energy efficiency. This article explains the core features, safety benefits, customization options, and procurement considerations that matter most to research institutions and industrial laboratories.

What Is a Walk-In Fume Hood and How Does It Work?

When procurement teams know how a floor-mounted fume hood works, they can make better decisions about what to specify. This part talks about building, breathing, and choosing the right materials.

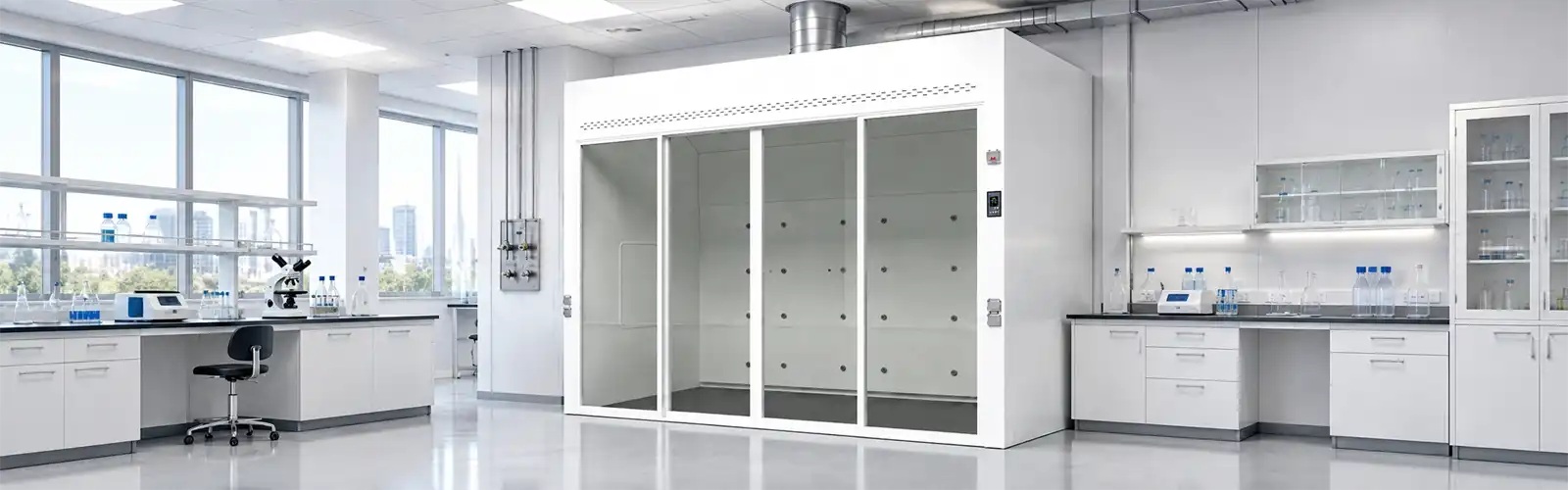

Construction and Interior Access

A walk-in fume hood is right on the floor of the building, giving the inside a height of about 2,350 mm. This lets people go inside to set up the tools and then work from outside the door while chemicals are being made. Roll-in equipment carts and other pieces of equipment that are too tall for tabletop types can be used with the floor-level access.

Airflow and Exhaust Mechanism

Along with a multi-duct laminar flow air supply system, the unit pulls dirty air away from the operator. A three-stage diverter and a circular airflow collection structure work together to make sure that the whole work area is properly extracted. This design keeps volatile organic compounds from building up in dangerously high concentrations in dead zones.

Material Selection and Durability

Materials that don't rust are required in chemical laboratories. Acid washing, phosphating, and electrostatic spraying are used to make the thickened cold-rolled steel plates that are used in the structural panels. This multi-step anti-corrosion process is resistant to acids, alkalis, and liquids, and it keeps heavy instruments racks' load-bearing integrity.

Key Features and Safety Benefits of Walk-In Fume Hoods

It's easy to see the difference in performance between a normal benchtop unit and a floor-mounted box when you look at certain tech details. Here are the main technical benefits that make this type of tools stand out.

Multi-Duct Laminar Flow Ventilation

The multi-duct laminar flow air supply architecture makes sure that the exhaust air moves through the enclosure in a controlled, consistent way. With an exhaust airflow rate of 220–360 m³/h at normal height and an approved air loss rate, the system can keep negative pressure even when big equipment blocks some of the airflow paths inside. This amount of efficiency helps meet the requirements of ASHRAE 110 for face velocity.

60% Make-Up Air Ratio for Energy Efficiency

The 60% make-up air ratio is one of the most important operational benefits. Instead of letting all the conditioned room air out, the system recirculates some of the supply air, which makes the HVAC system much less busy. The American Industrial Hygiene Association says that up to half of a building's total energy use goes toward ventilation in laboratories. This cost problem can be solved directly by a well-designed make-up air system.

Sealed Isolation and Negative Pressure Containment

The sealed isolation system stops dangerous gasses from getting into the lab space around it. The enclosure keeps a negative pressure compared to the room during large-scale chemical processes or activities that involve scaling up. This keeps people from breathing in too much of the chemical vapor and helps companies follow OSHA's rules for acceptable exposure levels.

Types and Customization Options of Walk-In Fume Hoods

Standard products don't always meet the exact needs of large research institutions and pilot plant owners. Uken's walk-in fume hood comes in a number of different configurations to meet different operational needs.

Standard Size Options

Most projects can start with one of three basic layouts. You can choose from three sizes: L1200 × D850 × H2350 mm, L1500 × D850 × H2350 mm, and L1800 × D850 × H2350 mm. Each size keeps the same 850 mm depth and 2,350 mm height, which makes sure that the containment geometry is always the same while the working width is adjusted to fit the size of the equipment.

Frame-Type Structural Upgrade

The frame-type structure upgrade makes it possible for buildings with heavy analytical instruments or interconnected chromatography systems to hold more weight than a normal cabinet design. This choice can hold the weight of multi-column liquid chromatography systems, robots that handle liquids automatically, and pressure reactor units without weakening the structure.

Optional Safety Accessories

In addition to the main container, there are a number of safety-enhancing add-ons that can be used with the system. To meet the legal needs of your building, you can choose from the following options:

• Fireproof chemical cabinet: Stores flammable solvents inside the ventilated zone, keeping them under negative pressure rather than in open laboratory spaces where vapor accumulation poses ignition risk.
• Waste liquid cabinet: Collects hazardous effluents directly inside the containment zone, eliminating the need to transport waste containers across the laboratory floor.
• Waste bin system: Manages solid waste containing residual chemicals within the same controlled environment, supporting GMP sanitation requirements.

These add-ons work with the upper and lower cabinet exhaust connections, so every storage space inside the enclosure always has air flow. This method stops vapor buildup in closed storage areas, which is a common problem in labs that use standard chemical cabinets that are not in an area with good air flow.

Installation, Maintenance, and Compliance Guide

It is important to follow the right steps for installation and upkeep of a high-specification fume container so that it works as it should.

Site Preparation and HVAC Integration

The building's HVAC system must be checked against the unit's 220–360 m³/h exhaust volume needs before installation. The duct lines have to match the exhaust holes on the top and bottom of the box. The engineering team at Uken looks over facility drawings and gives integration specs to make sure the system that is put works the way it was meant to.

Routine Maintenance Requirements

Regular checks of the airflow system, sash mechanisms, and duct connections help keep the containment working well for as long as the equipment is used. Face velocity readings should be taken with an accurate anemometer at the times suggested by ASHRAE 110. If the face velocity drops below 0.5 m/s at the sash opening, it means that the ducts or fans need to be checked out.

International Standard Compliance

The smoke hood on the floor from Uken is certified by ISO, CE, SEFA, and SGS. These certifications show that the unit meets the requirements set by international standards bodies for material safety, airflow performance, and size tolerances. Certified paperwork cuts down on the time needed for building safety checks for procurement teams that have to go through regulatory approval processes.

Procurement Considerations for B2B Buyers

There is more to choosing a walk-in fume hood for a large research institution than just looking at the specs. Whether the purchase achieves its goal depends on the project schedule, the supplier's manufacturing capacity, and the help provided after installation.

For large or unusual configurations, the whole project cycle, from planning to installation, usually lasts between 6 and 18 months. Early in the design process, procurement teams should ask for engineering drawings to make sure that the new building will fit in with the existing infrastructure. It's also important to look at how well a seller can customize things in-house, since suppliers that only sell items from their catalog might not be able to meet your needs for non-standard duct routes or earthquake anchoring.

The level of help after installation has a direct effect on long-term compliance. A provider with their own engineering team can do on-site setup, airflow verification testing, and make any necessary changes if the fixed performance doesn't meet the requirements. This support structure lowers the chance that regulatory audits will find gaps in compliance.

Conclusion

A fume hood that is mounted on the floor meets a certain type of difficult ventilation needs in a lab. You can use this type of equipment for pilot plant operations, aerospace research, pharmaceutical GMP facilities, and materials science labs because it has a multi-duct laminar flow design, an exhaust capacity of 220–360 m³/h, a make-up air ratio of 60%, and modular cabinet integration. Certification against ISO, CE, SEFA, and SGS standards gives procurement teams the proof they need to get government permission. A properly designed and installed floor-mounted enclosure is an essential engineering control for schools that do large-scale chemical processing or scale-up operations. It is not an extra that can be added.

FAQ

1. What is the difference between a walk-in fume hood and a standard benchtop fume hood?

A walk-in fume hood sits directly on the floor and provides a full-height interior of approximately 2,350 mm, allowing tall distillation columns and pilot plant reactors to fit inside. A standard benchtop unit typically offers 750–900 mm of interior height, which limits the equipment it can contain.

2. What exhaust airflow rate does Uken's floor-mounted fume hood provide?

The unit delivers 220–360 m³/h at standard height with a 60% make-up air ratio, supporting energy-efficient operation without reducing containment performance.

3. Can the unit be customized for non-standard facility configurations?

Yes. Three standard widths are available—1200 mm, 1500 mm, and 1800 mm—and frame-type structural upgrades, specialized duct connections, and optional safety accessories can be configured to match specific project requirements.

4. Which international certifications does this product hold?

Uken's floor-mounted fume hood holds ISO, CE, SEFA, and SGS certifications, confirming compliance with international safety and performance standards.

5. How long does installation typically take?

Project timelines from specification to on-site commissioning generally range from 6 to 18 months, depending on customization complexity and facility readiness.

Get Your Custom Walk-In Fume Hood Quote from Uken

Uken can make walk-in Fume Hoods and handle the whole project, from the initial specification drawings to the commissioning on-site. They have 100 professional engineers and a 50,000 m² production facility to help them. For floor-mounted shelters that are ISO, CE, SEFA, and SGS approved, we build them to fit your exact needs for exhaust volume, structure, and compliance. Visit service@ukenlab.com or WhatsApp: +8615102909133 to get a technical advice and project quote.
