Laboratory Fume Hoods: Design & Control Considerations

If you manage a QC laboratory or oversee equipment procurement for a pharmaceutical or chemical facility, you already know that a fume hood is not optional—it is a regulatory requirement and a daily safety tool. A chemistry laboratory fume hood is a local exhaust ventilation device that creates a negative-pressure enclosure around hazardous reagents, protecting personnel from toxic vapors, flammable gases, and corrosive aerosols. Face velocity, material integrity, sash design, and alarm responsiveness all determine whether a unit passes your GMP audit or fails it. This article walks through every major design and control factor you need to evaluate before purchasing.

Understanding Chemistry Laboratory Fume Hood Fundamentals

How Airflow Containment Works?

The sash hole in a fume hood lets room air flow across it and through the exhaust duct, keeping the negative pressure in the lab area below it. Face speed should stay between 0.3 and 0.5 m/s (60 and 100 fpm), according to ASHRAE 110. When the range is below that, the fumes exit toward the user. When the sash opens, the turbulence above it can push contaminants back out. A well-built unit is different from a cheap one that looks the same on paper because it has consistent airflow across the whole sash width.

Key Safety Features to Specify

Modern Fume Hoods have sash limit sensors, alarms that can be heard and seen, and, on more expensive models, VOC detectors built right in. The alarm system lets the operator know when the airflow drops below the safe level. This feature directly addresses one of the most common GMP audit findings: face velocity failure that wasn't noticed while the machine was in use. Protective socket covers keep liquids from touching the electricity by mistake, and built-in lighting lets the operator see exactly what's going on inside the room.

Regulatory Standards You Must Reference

Three standards govern how fume hoods work around the world. The SF6 leak target is less than 0.05 ppm at the breathing zone, which is what ASHRAE 110 says about the tracer gas containment test. EN 14175 covers the installation and performance standards in Europe. SEFA 1 talks about design standards for structures and ergonomics. Compliance with these standards is not an option for pharmaceutical plants that follow GMP; it is the norm. Check to see if any supplier offers third-party test certificates, not just self-declarations from the manufacturer.

Design Considerations: Types and Performance Optimization

Ducted vs. Ductless: Making the Right Call

Ducted fume hoods send air straight to the outside through an HVAC system that is tied to them. They can handle a lot of chemical work, solvents that boil, and almost any kind of reagent. Activated carbon filters in ductless units clean the air and send it back into the lab. They are easy to install, but they have strict rules: carbon filters get full over time, and they can't handle low-molecular-weight gasses or solvents with a high evaporation rate safely. Since closed systems are still the best way to do pharmaceutical quality control work with strong chemicals, ducted fume hoods remain the standard choice in these environments.

Specialty Configurations for Demanding Applications

In some situations, you need more than a standard chemistry laboratory fume hood enclosure. Because perchlorate salt deposits are explosive, work with perchloric acid needs a special wash-down fume hood made of 316 stainless steel with a built-in water spray system. When working with radioisotopes, buildings need to be lined with lead and have HEPA filters installed before the air. Interior liners made of all-polypropylene keep metals out, which is good for trace metal analysis. If you choose the right model from the start, you can avoid expensive repairs and failed containment tests during launching.

Maintenance Practices That Prevent Downtime

Most choices about what to buy pay off in the long run when it comes to maintenance. OSHA rules and EN 14175 say that face velocity profiling must be done every year at 12 or more sash-opening data places. Using smoke pencils to show flow can find dead spots that measurements of speed alone miss. The best way to avoid audit failures and unplanned shutdowns is to do the following maintenance tasks:

• Annual face velocity testing across a minimum of 12 measurement points to confirm uniform airflow and catch early exhaust fan degradation before it affects containment.
• Bi-annual filter inspection on ductless units, with replacement triggered by saturation indicators rather than fixed time intervals, since chemical load varies between labs.
• Quarterly sash track and seal inspection to identify worn gaskets or misaligned components that create bypass leakage along the sash edges.

Skipping these checks doesn't save time; it leads to the kind of audit finding that stops work and costs three times as much as planned to replace emergency equipment.

​

Procurement Insights: Choosing the Right Fume Hood for Your Facility

Evaluating Chemical Hazards and Lab Layout First

Make a list of all the chemicals you have and how they meet the above hood type requirements before you compare prices. A QC lab that does acid digestion, HPLC solvent preparation, and volatile organic compound screening probably needs at least two different types of hoods. The structure of the lab determines the possible routes for the exhaust ducts, which directly impacts whether a ducted installation is possible or whether a ductless unit is the only choice for a certain workstation.

Comparing Costs Across the Procurement Cycle

The price you pay for a fume hood covers about 15–20% of its total cost over its ten-year life. The rest is made up of parts, upkeep, and energy use. Variable Air Volume (VAV) systems change the exhaust depending on where the sash is located. This lowers the HVAC load by 30–50% compared to designs that use steady volume. If your building has a lot of fans that are always running, VAV integration will pay for itself in three to five years. Avoid focusing only on unit price when making your bid specifications; instead, take this into account.

What to Demand from Your Supplier?

Buying decisions at pharmaceutical facilities usually take between two and five months, from specification to installation confirmation. As important as the equipment itself is how quickly the seller responds to technical questions, how easy it is to get approval paperwork, and how committed they are to providing support after the installation. Need certificates from ISO, CE, SEFA, and SGS as part of the bid package. Before signing the contract, make sure you have written confirmation of lead times and terms for the availability of spare parts. This will help you avoid the slow response after sale situation that throws off testing schedules.

Brand Spotlight & Supplier Guidance

What Sets Youken Lab Apart in the Fume Hood Market

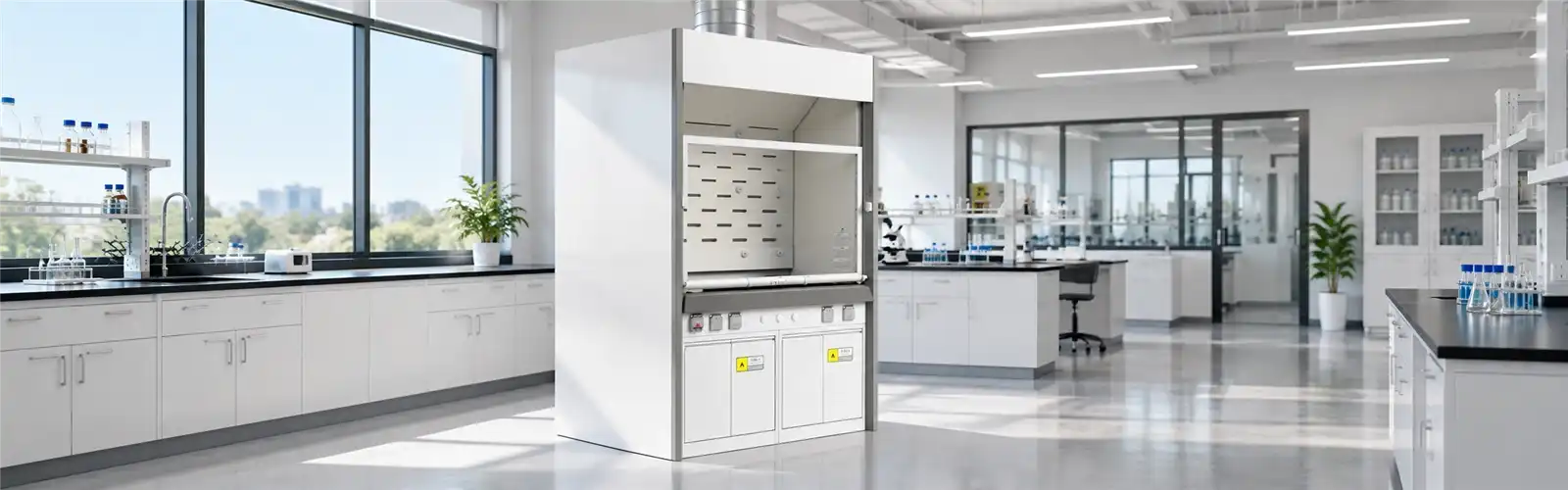

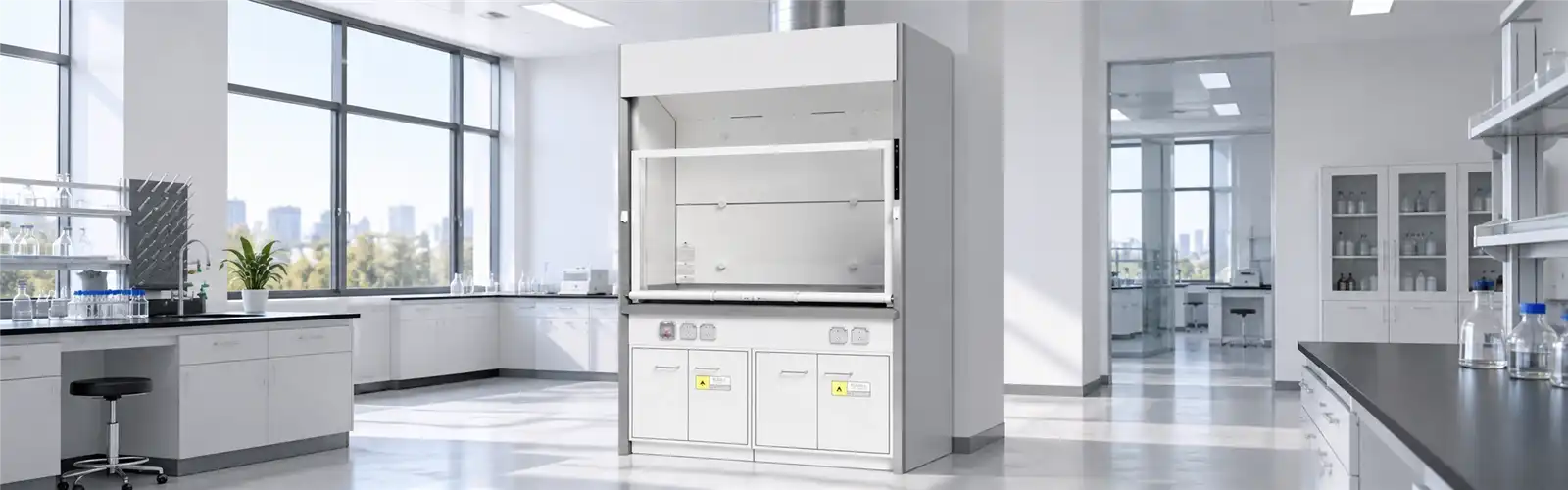

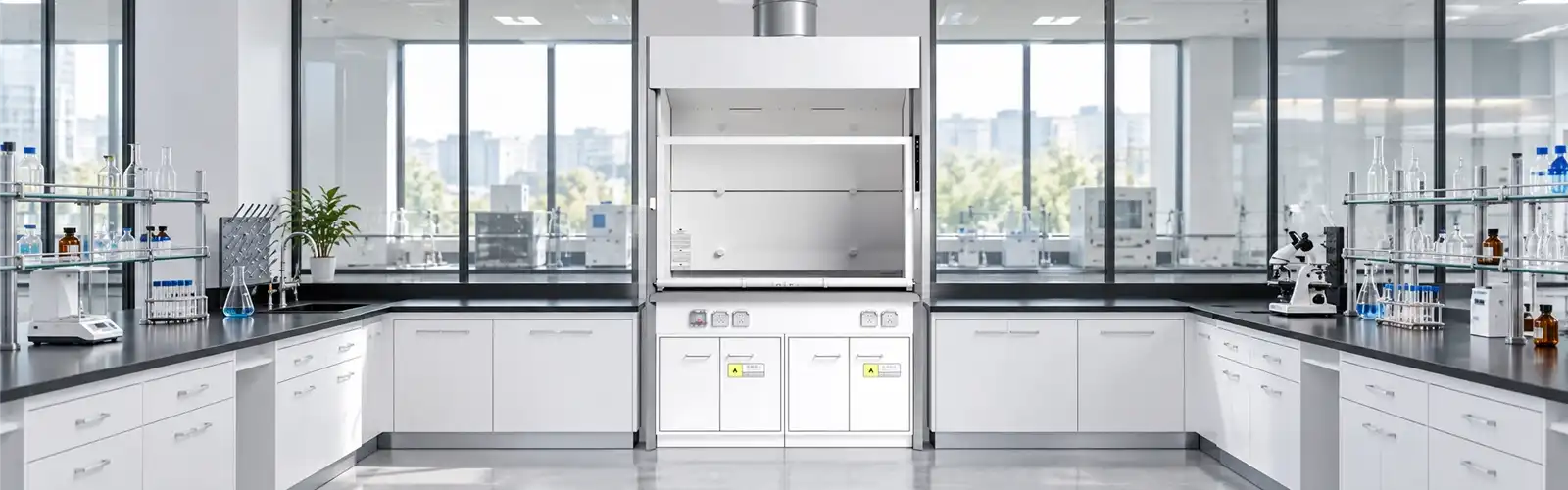

The fume hood line is made by Luoyang Youken Laboratory Equipment Co., Ltd. in a 50,000-square-meter factory with 100 experts who are in charge of planning and quality control. Youken's chemistry laboratory fume hood is made of 1.0 mm cold-rolled steel, which doesn't bend even after being exposed to chemicals all day. With three width options—1200 mm, 1500 mm, and 1800 mm—you can get a desk that fits a variety of workstation sizes without having to wait for custom fabrication. The machine is 2350 mm tall and has a tabletop height of 850 mm. This makes it easier for operators to work for long periods of time.

The touch panel control system shows the state of the airflow, the lights, and the alarms all on one screen. Angle-adjustable sliding doors with comfortable handles make it easier to move the sash, and protective socket covers keep electrical safety in mind when working near liquids. There is consistent lighting inside the chamber thanks to built-in lighting. Each unit comes with paperwork for ISO, CE, SEFA, and SGS certification, so your QA team doesn't have to wait weeks to get the papers they need for an audit.

Verifying Supplier Reliability Before Committing

There are three things you should look at when evaluating a supplier besides the product specifications: the supplier's manufacturing transparency (can you visit the factory or look at inspection reports from a third party?), their after-sales infrastructure (do they have local technical support and spare parts in stock?), and their reference accounts in your industry. Youken sells GMP production settings, medical labs, pharmaceutical labs, and chemistry labs all over the world. Before you start the procurement process, go to ukenlab.com to look at product options and download technical specs.

​

Designing for the Future: Innovations and Trends in Laboratory Fume Hoods

Smart Monitoring and Automated Controls

Fume hood technology is going toward continuous tracking in real time instead of checking by hand every so often. Smart airflow sensors can now automatically record face velocity data, highlight any differences, and make reports that meet audit standards without the need for human data entry. When the user steps away, automated sash controls lower the sash. This lowers the waste volume and energy draw when the machine is not in use. These features lower both the cost of operation and the chance that a person's mistake will cause a containment failure.

Energy Efficiency Without Safety Trade-Offs

As the cost of running a lab goes up, buying things that use less energy has become a top concern. Older designs needed face speeds of at least 0.5 m/s, but newer low-flow fume hoods certified to ASHRAE 110 can keep the air inside safely at speeds as low as 0.3 m/s. The lower volume of exhaust cuts directly down on the cost of HVAC conditioning. Youken units are made of cold-rolled steel, which is used in modular building. This means that they can be reconfigured in the future without having to be completely replaced, which protects your capital investment as lab processes change.

Regulatory Directions Shaping Next Procurement Cycles

OSHA and the EPA are making it harder to record lab air quality, especially in places that handle HPAPIs and methods that produce VOCs. GMP inspectors are asking for historical airflow data more and more instead of just accepting certification from a single point in time. If you choose a hood that can record data today, your building will be ready for compliance tomorrow without having to spend more money.

Conclusion

Selecting a chemistry laboratory fume hood requires more than matching a unit size to a bench space. Face velocity stability, material corrosion resistance, alarm responsiveness, certification documentation, and supplier support all determine whether the equipment protects your personnel and survives your next regulatory audit. The design details that seem minor during procurement—protective socket covers, built-in lighting, ergonomic sash handles, touch panel controls—are the details your operators interact with every single day. Getting them right at the specification stage prevents complaints, reduces downtime, and supports a compliant laboratory environment over the equipment's full service life.

FAQ

What face velocity should a chemistry laboratory fume hood maintain?

ASHRAE 110 recommends 0.3 to 0.5 m/s (60–100 fpm). Values below this range risk vapor escape; values above it create turbulence that can pull contaminants back toward the operator.

Can a ductless fume hood replace a ducted unit in pharmaceutical QC work?

Not in most pharmaceutical QC applications. Ductless units rely on carbon filters with finite saturation capacity. They cannot safely handle high-evaporation solvents or certain low-molecular-weight gases commonly used in synthesis and analysis workflows.

How often does a fume hood need formal recertification?

Annual recertification is required under OSHA guidelines and EN 14175. Recertification is also mandatory after any modification to the connected HVAC system, relocation of the unit, or significant change in chemical use patterns.

Why is my fume hood alarm activating during normal use?

The most common causes are a blocked exhaust duct, a degraded fan belt in the roof fan unit, or the sash being opened beyond its rated safe operating height. Check all three before assuming a sensor fault.

What material is required for perchloric acid fume hood work?

Perchloric acid applications require a dedicated wash-down fume hood constructed from 316 stainless steel with an integrated water spray system to prevent buildup of explosive perchlorate salt deposits.

​

Ready to Upgrade Your Laboratory Fume Hood?

Need a reliable chemistry laboratory fume hood for pharmaceutical, QC, or chemical applications? Luoyang Youken Laboratory Equipment Co., Ltd. combines a 50,000-square-meter factory, 100 technical and quality-control experts, and proven manufacturing experience to support demanding laboratory projects. Our fume hoods offer 1.0 mm cold-rolled steel construction, 1200/1500/1800 mm width options, touch-panel airflow and alarm controls, adjustable sliding doors, protective socket covers, and built-in lighting. Each unit comes with ISO, CE, SEFA, and SGS certification documentation to support your audit and procurement process. Whether you need standard equipment or application-specific guidance, Our Team can help you select the right configuration. Contact Us today at service@ukenlab.com or WhatsApp: +8615102909133 to discuss your requirements, request technical specifications, and start your next laboratory project with confidence.

References

1. American Society of Heating, Refrigerating and Air-Conditioning Engineers (ASHRAE). ASHRAE 110: Method of Testing Performance of Laboratory Fume Hoods. ASHRAE, 2016.

2. Scientific Equipment and Furniture Association (SEFA). SEFA 1: Laboratory Fume Hoods – Recommended Practices. SEFA, 2010.

3. European Committee for Standardization (CEN). EN 14175: Fume Cupboards – Parts 1–6. CEN, 2003–2004.

4. National Institute for Occupational Safety and Health (NIOSH). Engineering Controls for Occupational Exposure to Hazardous Chemicals in Laboratories. U.S. Department of Health and Human Services, 2019.

5. Occupational Safety and Health Administration (OSHA). Laboratory Safety – Chemical Hygiene Plan: Fume Hood Requirements. U.S. Department of Labor, 2021.

6. DiBerardinis, L. J., et al. Guidelines for Laboratory Design: Health, Safety, and Environmental Considerations. 4th ed., Wiley, 2013.
