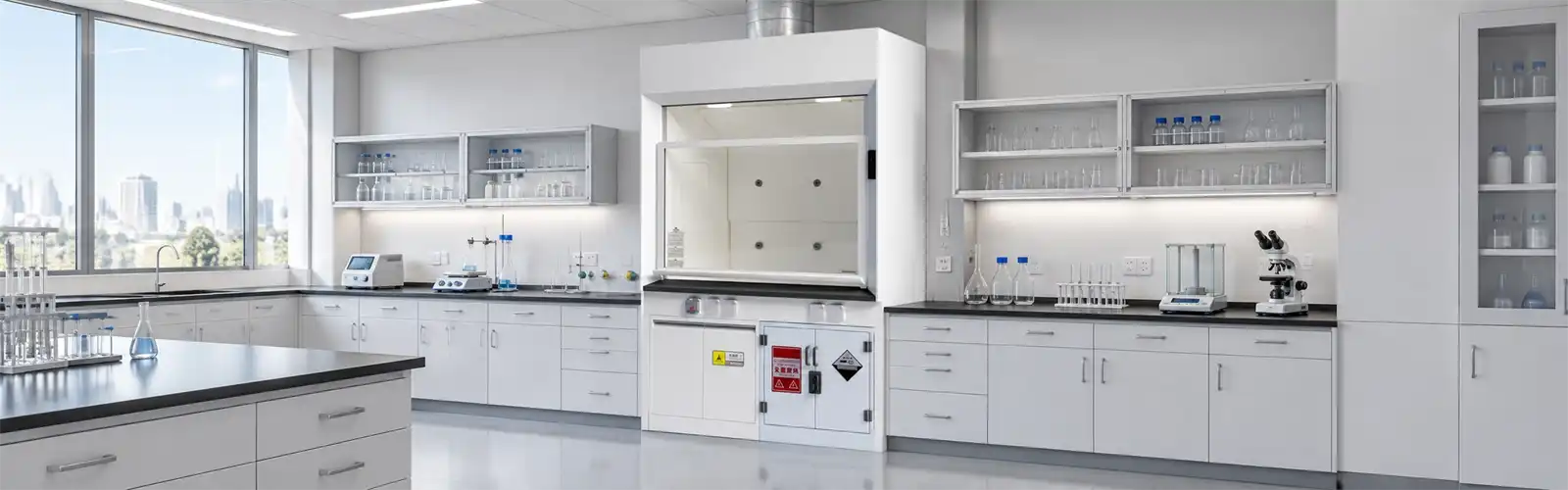

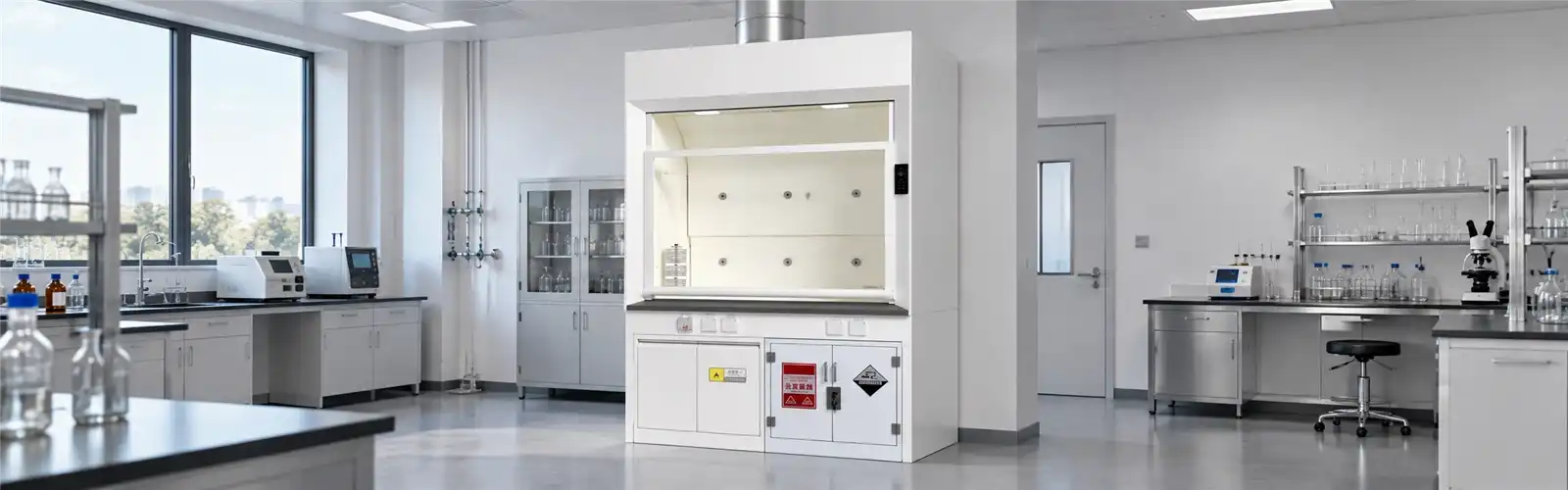

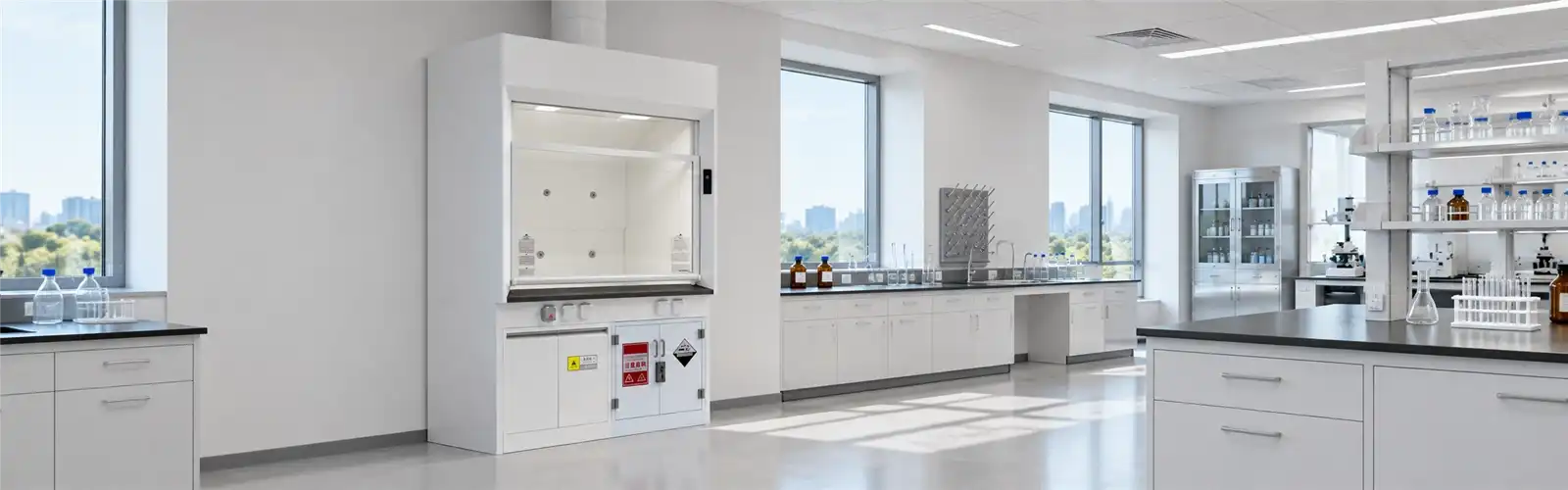

Custom Steel Lab Fume Hood Solutions for Modern Laboratories

A steel lab fume hood is a main containment device that is designed to protect laboratory staff from exposure to dangerous chemical vapors, gases, and particles. Constructed from 1.0 mm stainless steel sheet with chemical-resistant surface treatment, it tackles three main problems frequently encountered in continuous production plants: structural deterioration from repeated chemical exposure, risk of fire from flammable reagents, and instability of airflow in high-traffic research environments. A steel ventilation enclosure has the mechanical strength and fire-resistance capabilities for 24/7 operation in petrochemical, pharmaceutical, and fine chemical facilities, unlike wood or plastic counterparts.

Understanding Steel Lab Fume Hoods and Their Benefits

Steel Lab Fume Hoods: Steel lab fume hoods are ventilation enclosures designed to contain and remove contaminants in the air before they reach the lungs of workers. Procurement specialists who understand how things are made and how well they operate are able to make informed procurement decisions.

What Makes Steel Construction the Right Choice

Uken’s fume hoods are built of 1.0 mm thick stainless steel sheet, so that they cannot be damaged by acids, bases, and organic solvents. These chemicals destroy wood- and fiberglass-based cabinets very fast. Steel does not burn, and hence it naturally limits the spread of harmful substances. A polymer-based hood, however, can't achieve this. According to SEFA 1, lab fume hoods should be able to resist normal lab chemicals without affecting the surface. Steel obviously fills this demand.

Airflow Engineering and Personnel Safety

To get rid of fumes, the face velocity has to be the same throughout the sash opening. ASHRAE 110 and EN 14175 state that the average face velocity for the company should be roughly 0.5 m/s (100 fpm). That's what Uken's hoods are there for. The insides are smooth so that dirt and dust do not migrate back into the work area and impede ventilation.

Certifications That Validate Performance

Every item produced at Uken’s 50,000 m² factory is CE, ISO, and CQC certified and quality verified multiple times. Some include testing for salt spray coatings, inspections for mechanical stress, and checks for spotting smoke. Third-party certification is vital because inspectors and safety managers in most regulated businesses want to be sure that standards are being followed.

Customization Options to Meet Modern Laboratory Needs

No two continuous production labs have the same physical arrangement and chemical profile. That’s why Uken provides customisable solutions, not a one-size-fits-all offering.

Size and Configuration Flexibility

The Uken stainless steel lab fume hood is available in three standard footprints – L1200×D850×H2350 mm, L1500×D850×H2350 mm and L1800×D850×H2350 mm – for varied bench layouts and room sizes. Each dimension is designed to hold maximum airflow qualities and provide more usable inside area for large analytical equipment.

Material Selection Based on Chemical Exposure

In addition to the standard materials, facilities handling strong mineral acids may request other inner liner materials such as 5 mm compact phenolic resin boards for increased chemical resistance. The 1.0 mm stainless steel shell with chemical-resistant surface treatment offers suitable protection and makes long-term maintenance easier in typical petrochemical and pharmaceutical applications.

Modular Design for Lower Lifetime Costs

The laboratory fume hoods from Uken are built on a modular design, and individual components — sashes, baffles, plumbing fittings and electrical services — may be changed separately. This removes the need to replace the whole unit when a single element approaches end-of-life, directly decreasing total cost of ownership during a 10-15 year service cycle. For EHS managers with continuous-production lines, this means reduced unexpected downtime and shorter scheduled maintenance periods.

These design benefits are what make Uken’s fume hood ventilation systems a realistic choice for pharmaceutical synthesis laboratories, petrochemical testing stations, and chemical analysis facilities working with rigorous production schedules.

How to Choose the Right Steel Lab Fume Hood for Your Facility

You should do more than just compare prices to find the best lab air fan. You should take a close look at how your building works.

Assess Chemical and Thermal Load First

Begin by listing all of the chemical groups in your lab. Different surface materials and heat levels are required for strong oxidizers, halogenated solvents, and high-temperature distillation operations. Stainless steel is generally useful with chemicals. But when you order, areas that are continuously exposed to high quantities of acid should ask for better internal liners.

Compare Sash Type and Safety Features

Vertical-sliding sashes function the same way for opening, and they work nicely with sash warning systems. And that is why they are employed extensively in lab buildings. The Uken safety glass sash provides a transparent barrier between the operator and the procedures that produce the gas. And a simpler control panel means an operator is less likely to screw up during essential duties. This is a big problem in laboratories where there is plenty of variation.

Evaluate Supplier Certification and After-Sales Support

In controlled regions, you need more than a low unit price to purchase anything. Before purchasing a steel lab fume hood, make sure the manufacturer has valid CE, ISO, and CQC certifications. Also ensure that replacement parts are easy to get. Uken has a technical staff of 100 engineers and sends its items to all parts of the globe in robust, secure packaging, which means the goods arrive intact and ready to install.

Streamlining Procurement: From Inquiry to Installation

It may take anywhere from 1-4 months to get a lab fume hood system, from the initial determination of what you need to the installation, to testing to make sure it is working effectively. If you know exactly what you're doing at every stage, you won't exceed your budget or be late.

Define Requirements Before Issuing a Tender

Before you speak to vendors, write down how much airflow you need, how much chemical exposure you can tolerate, how much floor space you have available, and where your utilities are located. “So, plan ahead to make the decision faster and for businesses like Uken to make the right technical plans in the first round of communication rather than having to go through several rounds of changes.

Coordinate Installation and Commissioning Early

Professional installation makes a tangible impact on how the system functions. Once the device is installed, it should be checked for face velocity using a thermal anemometer, and for smoke vision, such that it satisfies ASHRAE 110. This phase should be included in the purchase contract, not added at the last minute. This will secure your admission record and make sure you are held accountable.

Plan for Ongoing Maintenance from Day One

If you purchase anything with a maintenance plan built into the sale, it’s less likely to cease operating as well over time. When cleaning stainless steel, you may only use neutral soaps. Abrasive tools will damage the metal below and speed up rusting. You are required to recertify your facial movements on an annual basis under OSHA guidelines. This helps you maintain your safety records up to date and keeps your personnel safe.

Case Studies and Future Trends in Steel Lab Fume Hood Solutions

Facilities that have transitioned from wood-based cabinets to all-steel laboratory ventilation enclosures consistently report lower five-year maintenance costs and fewer unplanned shutdowns. A pharmaceutical API synthesis lab that replaced its aging wooden fume cupboards with stainless steel units documented a 40% reduction in surface reconditioning costs over three years, primarily because steel resists solvent penetration that causes delamination in wood-composite panels.

The Move Toward Smart Monitoring

IoT-enabled airflow sensors are increasingly integrated into modern fume hood systems, allowing facility managers to monitor face velocity data remotely and receive alerts when airflow drops below the safe threshold. This predictive capability is particularly valuable for 24/7 production sites where manual inspection windows are limited.

Sustainability Pressures Are Reshaping Specifications

Energy-efficient variable air volume (VAV) controls, which adjust exhaust fan speed based on sash position, can reduce laboratory HVAC energy consumption by 30–50% compared to constant-volume systems, according to data published by Lawrence Berkeley National Laboratory. As sustainability benchmarks tighten across the chemical and pharmaceutical sectors, specifying VAV-compatible steel hoods becomes a forward-looking investment rather than an optional upgrade.

Conclusion

Steel construction is still the best choice for steel lab fume hoods that need to work in tough industry and research settings. The 1.0 mm stainless steel sheet construction is a good choice for ventilation because it is resistant to chemicals and fire and has a modular component design. It will also keep its value over the course of its full service lifecycle. With three standard size configurations and a technical team of 100 engineers, Uken is a good choice for places that need to make sure that safety performance is always consistent and can be recorded.

FAQ

1. How often should a laboratory fume hood be recertified?

OSHA and ASHRAE guidelines recommend full performance testing every 12 months, or immediately after any repair, modification, or relocation of the unit.

2. Is a steel fume hood better than a polypropylene (PP) hood?

Steel offers superior fire resistance, higher load-bearing capacity, and better heat tolerance for general chemical applications. PP hoods are more appropriate for sustained high-concentration acid digestion scenarios. For most petrochemical and pharmaceutical labs, steel is the stronger choice.

3. What face velocity should my fume hood maintain?

The standard target is 0.5 m/s (100 fpm) across the sash opening. High-efficiency VAV systems can operate safely at 0.3–0.4 m/s, reducing energy consumption without compromising containment.

4. How do I maintain the stainless steel surface?

Clean regularly with neutral laboratory detergents. Avoid abrasive pads or steel wool, which create micro-scratches and can initiate localized oxidation. Proper cleaning preserves both surface appearance and chemical resistance for the product's full service life.

5. Can I order custom sizes outside the three standard configurations?

Yes. Contact Uken's engineering team with your specific spatial requirements and chemical exposure profile. Custom configurations are available, and the modular design means future modifications remain practical without full replacement.

Get a Tailored Quote from Uken — Your Trusted Steel Lab Fume Hood Supplier

Uken's engineering team is ready to help you specify the right laboratory ventilation enclosure for your facility's exact requirements. With CE, ISO, and CQC-certified steel lab fume hoods, a 50,000 m² production base, and 100 professional engineers on staff, we deliver documented safety performance backed by reliable after-sales support. Contact Us today to request a product catalog, technical proposal, or project quote.

• Email: service@ukenlab.com
• WhatsApp: +86 15102909133

References

1. ASHRAE. ASHRAE 110: Method of Testing Performance of Laboratory Fume Hoods. American Society of Heating, Refrigerating and Air-Conditioning Engineers, 2016.

2. Scientific Equipment and Furniture Association (SEFA). SEFA 1: Laboratory Fume Hoods — Recommended Practices. SEFA, 2020.

3. Lawrence Berkeley National Laboratory. Laboratories for the 21st Century: Best Practices — Fume Hood Performance and Energy Efficiency. U.S. Department of Energy, 2015.

4. National Institute for Occupational Safety and Health (NIOSH). Engineering Controls for Occupational Exposures to Hazardous Chemicals in Laboratories. Centers for Disease Control and Prevention, 2019.

5. European Committee for Standardization. EN 14175: Fume Cupboards — Part 1 to Part 6. CEN, 2018.

6. Occupational Safety and Health Administration (OSHA). OSHA Laboratory Standard 29 CFR 1910.1450: Occupational Exposure to Hazardous Chemicals in Laboratories. U.S. Department of Labor, 2021.
