Chemistry Lab Island Design Guide: Creating Safe and Efficient Laboratory Spaces

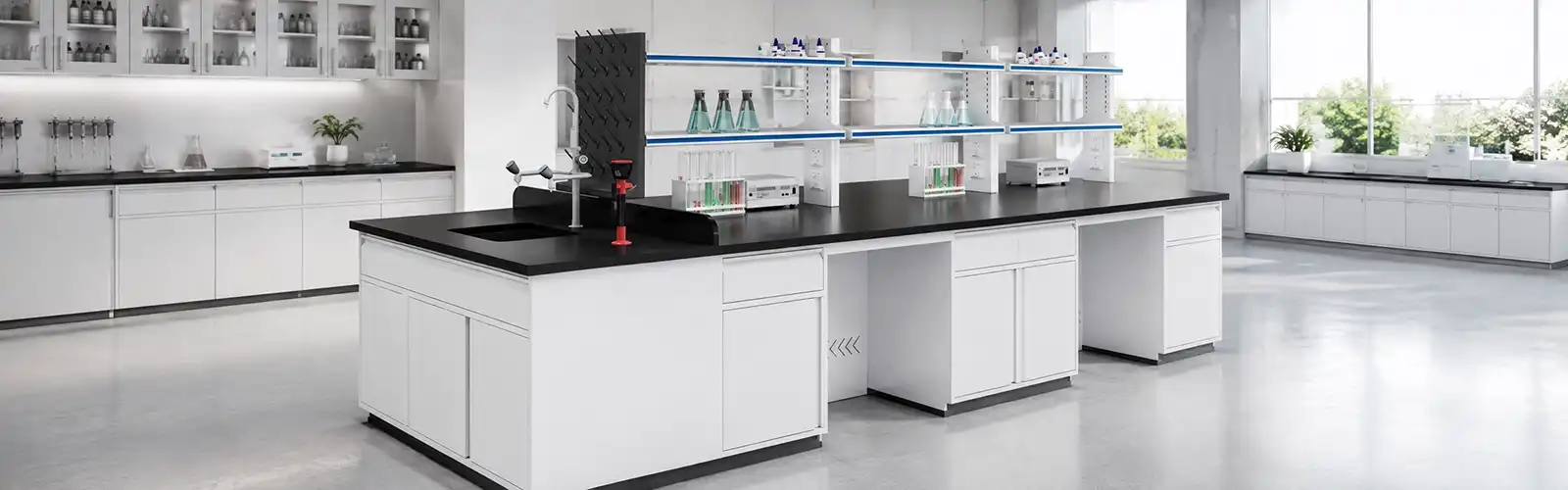

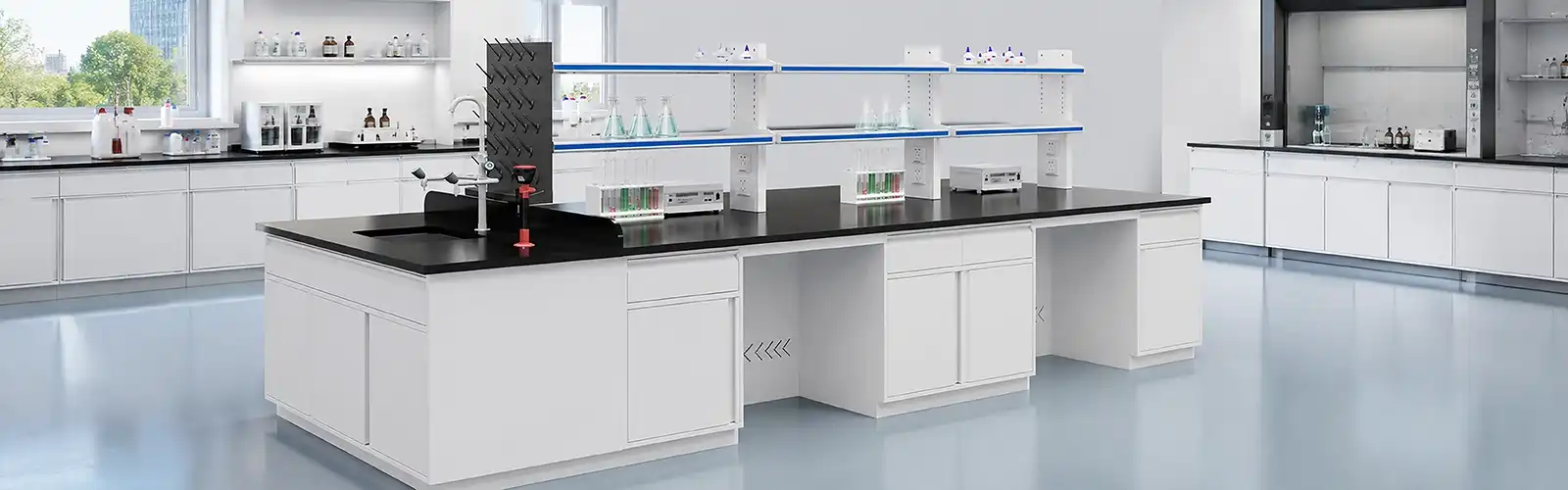

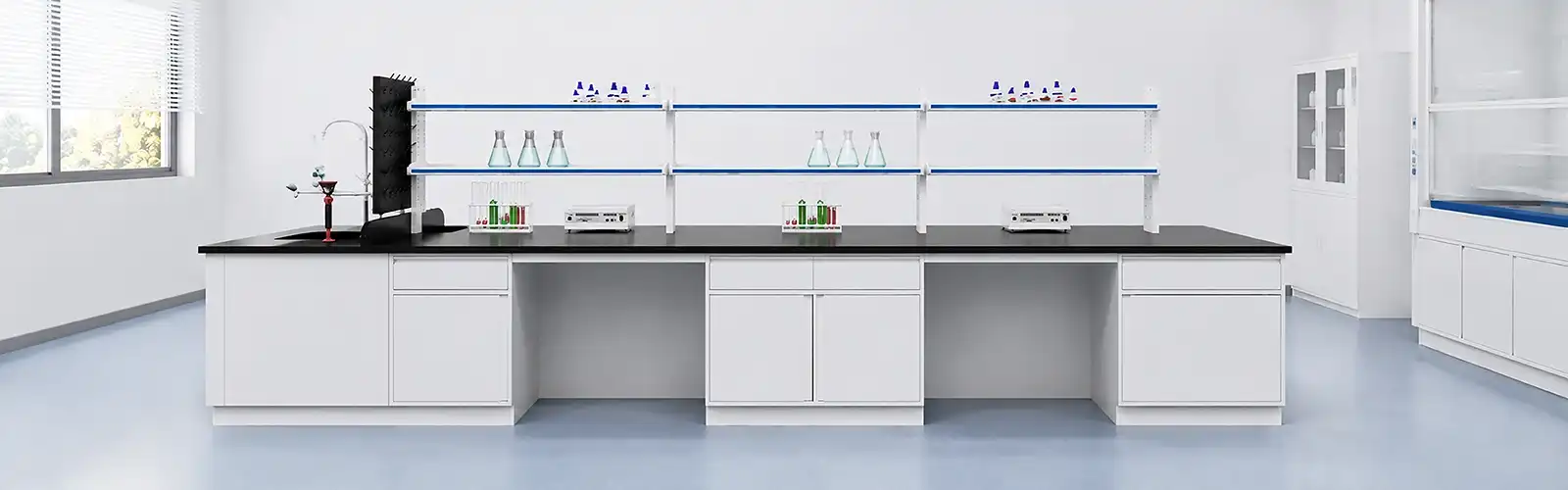

The shape of the main desk in a modern lab can make or break how well it works. Someone puts a Chemistry Lab Island in the middle of the lab so that people can get to it from all directions. It is a central, freestanding desk. In this plan, utilities like water, gas, and electricity are all centralized in an easy-to-reach hub. This makes the space and work run much better. The seats around the edges of the room make it hard to talk to other people. Island desks, on the other hand, make it easier to work together, get to chemicals, and use the space on the floor better. Whether you're in charge of a pharmaceutical research and development lab, a university teaching lab, or an industrial quality control setting, you need to know how to chose and buy the right island bench for safety, productivity, and long-term use.

Understanding the Core Objectives of Island Laboratory Design

In labs, the two most important things are safety and getting things done quickly. To be safe, a well-designed center workstation must meet strict requirements and allow for a steady flow of work. Experts should be able to move around freely, get to tools quickly, and stay safe.

Defining Safety Standards in Laboratory Workstations

The first things that need to be done to make a lab safe are to choose the right materials and build a strong structure. Workstations should be safe from damage from spills, heat, and normal wear and tear. SEFA 8 rules make sure that the materials used to make lab chairs can handle strong chemicals like hydrochloric acid, sulfuric acid, and organic solvents. The frame of a good island bench is made of 1.00 mm cold-rolled steel sheet that has been acid washed, phosphated, and covered with epoxy resin electrostatic spray. This multi-layer anti-corrosion process keeps the furniture from catching fire or getting moldy. It keeps acids, bases, and water from hurting it. To keep everyone safe, OSHA and ANSI Z358.1 say that there should be built-in eyewash stations and chemical storage boxes that are easy to get to.

Balancing Operational Efficiency with User Accessibility

To get things done quickly, you need to plan your layout well. There should be enough room for several people to use the center island bench at the same time without making the room too crowded. A big part of this is putting in modules. The desk can be made to fit your needs by adding water tanks (1440 × 720 × 830 mm), three-pull cabinets, single cabinets (470 × 520 × 830 mm), or double cabinets (900 × 520 × 830 mm). It's also easy to set up and change things later on, which saves time and money on work. Buyers in charge of big building projects can keep track of all the small packages and broken buildings that need to be shipped more easily.

Addressing Layout Optimization Challenges

There is only so much space, so value and safety often have to be given up. If you don't plan your island bench well, it could block fire exits, make it hard to get to the fume hood, or cause dangerous traffic jams. Smart zones are the way to go. You can divide the room into "wet" (with sinks and water) and "dry" (with electronics and sensitive instruments). There should be at least 48 inches of space around the table so that people in wheelchairs can get to it and people who need to leave quickly can do so. People can help each other and talk easily these days because island chairs are set up that way. This means that experts can work together without any issues.

Principles for Designing Safe and Efficient Laboratories

If you want to make a lab that is both safe and useful, you need to pay close attention to things like finding risks, setting up tools, and making things go faster. Following these rules will help you build a new center or fix up an old one.

Strategic Zoning and Equipment Arrangement

Different parts of the lab are set up based on the risk level and type of work being done. Working with volatile solvents or pyrophoric reagents is a dangerous job that should be done near Fume Hoods and emergency tubs. Chemistry Lab Island center island seats are the best places to do daily analysis work, get samples ready, and work with other people. Double cabinets that are strong and can hold more than 400 kg per square meter should be used to store centrifuges, analytical scales, and other heavy tools. One cabinet can be used for smaller chores like pipetting or microscopy. This arrangement makes it less likely for accidents and spills to happen because things don't move around as much.

Integrating Safety Gear and Emergency Systems

There needs to be safety gear built in. On island seats, everyone should be able to easily get to a place to wash their eyes. Most of the time, these are part of the water tank. So that fumes don't build up, chemical boxes need to be able to be locked and have air flow through them. If you put reagent cabinets at waist height, you won't have to bend over or reach for things over and over again. It's good for you. Instead of being on the table, gas and electric outlets should be on service columns or ceiling service carriers. This way, they don't take up too much room and people won't trip over them. In chemical and fuel testing centers, it's important to ground all electrical parts because sparks can happen in places that aren't stable.

Streamlining Workflows Through Inventory Control

When you keep your things in order, you don't have to waste time looking for tools or drugs. To make it easy to see the things you use most, an island bench with open shelves works well. Safe items are kept in closets that can be locked. Mark every place you keep things, and group chemicals by how well they work with each other. Acids should not be mixed with bases, and flammables should not be mixed with oxidizers. Epoxy-coated steel is easy to clean and germ-free because its surface is smooth and doesn't have any seams. This helps places with strict hygiene rules, like pharmaceutical and GMP-compliant ones.

Implementing Design Principles in Real-World Laboratory Procurement

You need to know exactly what stakeholders want, what materials are available, and what suppliers can do in order to turn design principles into choices for what to buy. Quality, cost, and delivery times all need to be balanced, and facility engineers, purchase managers, and lab planners need to work together to do this.

Aligning Stakeholder Needs with Optimal Solutions

People put a lot of important things at the top of their lists. The people who run labs stress how safe and useful their buildings are. People who are in charge of buying care about budgets and making sure deliveries are made on time. People in charge of engineering projects want to make sure that buildings are safe and meet international standards. All of these things are part of a good plan to buy. Make sure that the companies that sell Chemistry Lab Island benches have certificates such as CE, ISO9001, ISO14001, and ISO4501. The company shows that it cares about quality, the environment, and worker safety by getting these licenses. Get exact scientific information about the thing, like how thick the material is, what kind of cover it has, and how much weight it can hold. You can be sure it meets your needs that way.

Selection Criteria for Laboratory Furniture and Safety Equipment

Very important is the grade of the stuff. Stay away from wooden parts because they will soak up water and mold. The building should be made of cold-rolled steel plates, which are stronger and meet national standards. For 24 hours, the epoxy resin layer should be able to stand up to at least 49 different poisons. As a general worktop, you can get phenolic resin solid core science boards. You can get concrete tops for jobs that need to be heated up a lot. Check to see if you can move or alter the furniture to meet your needs. If it's doable, you can change the color, size, and layout. When a project needs to make its own brand or meet certain needs, OEM and ODM services give it more options.

Engaging Supplier Support Channels for Customized Solutions

You can keep from losing a lot of money by talking to your buyers well. View the things in CAD and 3D before you place your order. Most of the time, the lead time is 20 to 40 days. Also, find out if the building will be sent as a whole or in pieces. Talk about getting help putting it together and service after the sale. Suppliers who are good at managing projects work with biotech, pharmaceutical, and government research labs. These providers can help you make plans and find good solutions to issues. When you work on big, complicated projects, you need a building that's 50,000 square meters and has 100 skilled engineers.

Tips and Best Practices for Optimizing Laboratory Layout

To keep working at its best, even the best-designed island bench needs to be changed from time to time. You can keep your lab safe, effective, and adaptable by checking it often, asking users for feedback, and making small changes.

Identifying and Resolving Common Workflow Bottlenecks

Bottlenecks happen when things are put in the wrong place or there isn't enough room to store them in Chemistry Lab Island. Watch the experts as they move around the room. Do they have to walk too far to get to the centrifuge or fume hood? Are there too many sample bottles on the table because the cabinets don't have enough space? Change the layout over and over. Put things that need to be moved around a lot on carts that can be moved around. Put up service carts above the bench to make room on it. Because modern island benches are made of separate pieces, they are easy to move around. You don't have to make big changes to the structure to add or remove cabinets.

Leveraging Feedback for Continuous Improvement

What users say is very important. Every three months, ask the lab staff or hold focus groups to find out what's bothering them. Do the drawer slides break down too quickly? Are some chemicals leaving stains on the counter? Give this information to the company that sold you the item. Good businesses will use what their customers say to improve their goods, and they might even fix or replace them if something goes wrong under warranty. There are business groups and boards where you can find out how other sites have fixed layout issues and made theirs better.

Establishing Routine Safety Audits and Training Programs

You don't just do safety once; you do it all the time. Make sure that emergency tools are kept in good shape and that chemical storage rules are being followed every month. Also, look for damage or wear on the building's structure. Help everyone in the lab learn how to use the tools correctly and take care of their own things. It's easy to clean the island bench's surface, so do it every day to keep chemicals from building up and foods from getting shared. Keep track of all the repairs and maintenance work you do so you can show that you followed the rules when the government checks up on you.

Conclusion

To make a safe and useful central Chemistry Lab Island workstation, you need to pay close attention to the safety rules, the quality of the materials, and the best way to arrange them. A well-thought-out island bench can turn your lab into a high-performance, team-based area where scientists can work together to find new things instead of working out how to do things. Full steel construction, anti-corrosion treatments, modular flexibility, and supplier expertise are all things that can help you protect yOur Team and your investment. This book has tips that will help you buy things that are good quality and will last, whether you're starting up a drug testing facility, a university lab for teaching, or a government testing center.

FAQ

Which Worktop Material Suits High-Chemical-Exposure Environments?

Solid core physical boards (phenolic resin) are cheap and have great chemical protection in general. They can handle most of the acids, bases, and solvents that are used in everyday analytical work. Ceramic tops are very good at withstanding high temperatures and strong acids, which makes them perfect for use with hot plates, digesters, or strong oxidizers. Before choosing a worktop material, look at your specific list of chemicals and the temperatures at which they will be used.

How Are Utilities Managed in a Central Island Bench?

A central service column or ceiling-fed service carrier is often used to route utilities. With this method, plumbing and wiring are hidden, which cuts down on clutter and trip hazards. Water, gas (natural gas, nitrogen, and vacuum), and electrical outlets can all be put in service columns. You can add or move service points as your needs change thanks to the modular design. This makes sure that the desk is flexible for as long as it lasts.

Can Island Bench Height Be Adjusted for Ergonomics?

Standard bench height is between 850 mm and 900 mm, which is good for most people. There are legs with height adjustments that can be used to meet ADA requirements or for special tasks. Talk to your provider about telescopic or leveling feet when you place your order to make sure it meets safety and comfort standards.

Partner with Uken for Your Next Island Laboratory Workstation Project

If you choose the right Chemistry Lab Island provider, buying can go from being a hassle to a strategic asset. Uken (Luoyang Youken Laboratory Equipment Co., Ltd) has 100 specialized engineers and a 50,000-square-meter production facility. They have been making things for 50 years. The standards for our modular steel island benches are CE, ISO9001, ISO14001, and ISO45001, and they offer the best chemical resistance, structural integrity, and ease of installation. We support complete lab projects in the pharmaceutical, medical, educational, and government sectors. Our 20–40 day lead times, OEM and ODM customization, and knock-down shipping help keep costs low. Talk to our technical team about your needs by emailing ceo@ukenlab.com or visiting ukenlab.com. They will come up with a solution that fits your safety, budget, and time frame needs.

References

1. Scientific Equipment and Furniture Association. (2020). SEFA 8-M Laboratory Furniture: Recommended Practices for the Design, Manufacture, and Installation of Laboratory Furniture. Hilton Head Island, SC: SEFA.

2. Occupational Safety and Health Administration. (2019). Laboratory Safety Guidance. Washington, DC: U.S. Department of Labor.

3. American National Standards Institute. (2018). ANSI Z358.1: Emergency Eyewash and Shower Equipment Standard. New York, NY: ANSI.

4. National Research Council. (2011). Prudent Practices in the Laboratory: Handling and Management of Chemical Hazards. Washington, DC: National Academies Press.

5. International Organization for Standardization. (2021). ISO 9001: Quality Management Systems – Requirements. Geneva, Switzerland: ISO.

6. Centers for Disease Control and Prevention. (2020). Biosafety in Microbiological and Biomedical Laboratories (BMBL), 6th Edition. Atlanta, GA: CDC.
