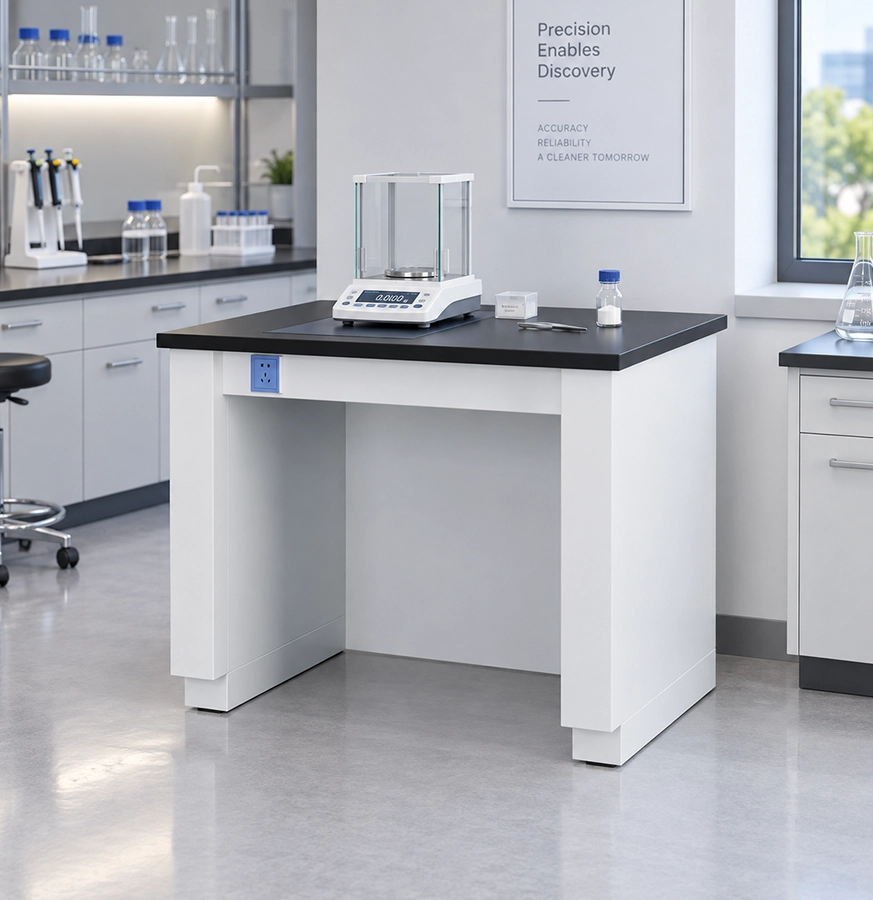

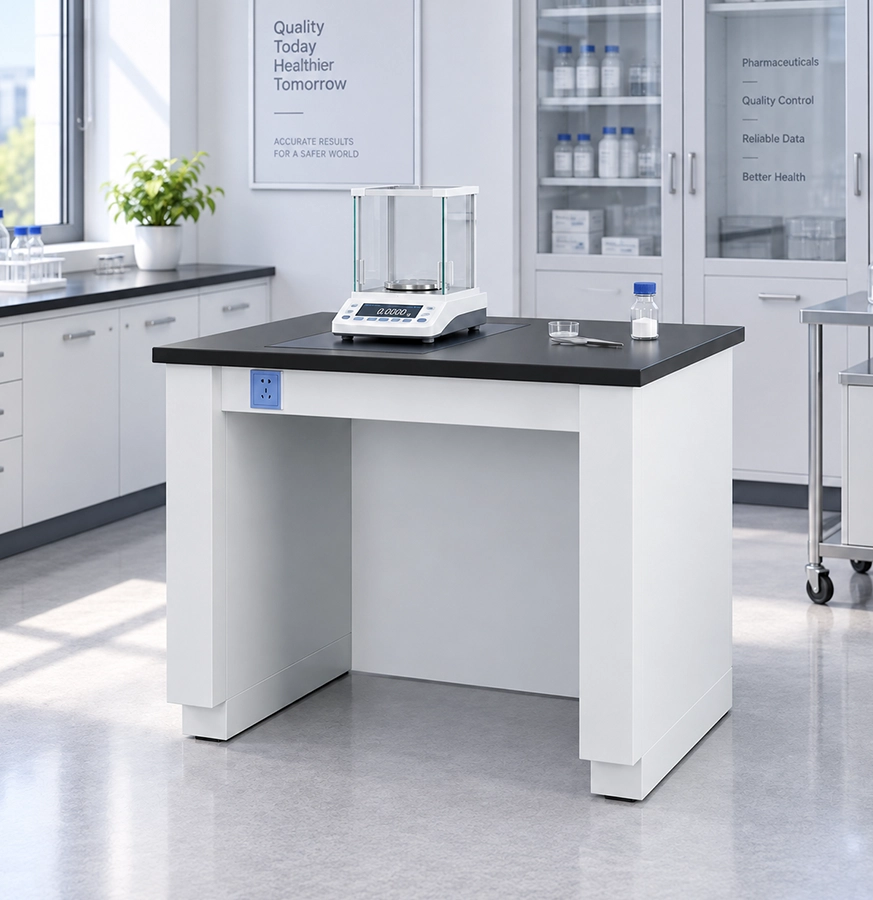

Anti-Vibration Balance Table

Precision Engineered Anti-Vibration Balance Table for Analytical Excellence

When your research facility requests outright estimation precision, the Anti-Vibration Balance Table from Luoyang Youken conveys enterprise-grade vibration separation. Made in our 30,000 m² generation office by a group of 100 proficient engineers, this accuracy workstation highlights a full steel double-layer development measuring 900×600×850mm. The inventive three-stage stun assimilation framework combines a high-quality cold-rolled steel outline (≥1.0mm thickness) with a 40×40×1.2mm welded square steel inward structure, surface-finished with epoxy gum powder coating (≥70μm). At its center sits a 12.7mm strong physical-chemical board with edges thickened to 25mm, lodging an autonomous 50mm thick marble countertop that conveys the warm soundness and levelness your microbalances need.

Each component works in agreement to accomplish characteristic frequencies underneath 10Hz, securing your disobedient from HVAC frameworks, foot activity, and basic vibrations that compromise information integrity.

Why Choose Our Vibration-Isolating Weighing Station?

Your expository disobedient speak to noteworthy capital venture. Ensuring them whereas guaranteeing estimation repeatability is not optional—it's essential.

Our table addresses the basic torment point of estimation float caused by sub-hertz motions. The dual-component design makes a 'zero-contact' bridge between your instrument and the outside environment.

The heavy-duty external outline gives basic unbending nature. In the mean time, the free inner damping system—featuring specialized elastic mounts and exact leveling feet—absorbs vitality over the 1-100 Hz range. This decoupling guarantees microbalances accomplish their most extreme indicated coherence without outside interference.

The plan logic takes after ISO, CE, SEFA, and SGS universal quality guidelines. You get more than furniture—you get a estimation establishment designed for logical precision.

Technical Specifications

​​​​​​​

Three-Stage Damping Technology Explained

Understanding how vibration separation works makes a difference you appreciate the designing behind your measurements.

Stage One: Establishment Level

Adjustable leveling feet with elastic bases give the to begin with contact point. These stainless steel and nylon components compensate for uneven floors whereas retaining high-frequency vibrations from the building structure.

Stage Two: Outline Decoupling

The welded square steel internal outline coasts inside the external outline utilizing high-performance damping materials. This layer targets mid-frequency unsettling influences from adjacent hardware and faculty movement.

Stage Three: Surface Isolation

The 50mm marble countertop sits autonomously on the shock-absorbing outline. Its tall mass and predominant warm soundness make an ultra-stable stage. The 12.7mm chemical-resistant external surface ensures against research facility spills whereas keeping up basic rigidity.

This cascading approach weakens vibrations over the whole recurrence range. Your expository adjust encounters the calm, steady environment it needs for sub-milligram accuracy.

Applications Across Scientific Disciplines

This Anti-Vibration Balance Table serves different businesses where accuracy matters:

Pharmaceutical Research facilities conducting dynamic fixing measurement require the steadiness our framework gives. Definition exactness depends on dispensing with estimation uncertainty.

Research & Advancement Offices testing modern materials require repeatable comes about. Our table guarantees that natural components do not sully exploratory data.

Quality Control Offices in chemical fabricating depend on reliable weighing operations. The three-stage damping framework keeps up calibration keenness indeed in high-traffic areas.

Educational Research facilities advantage from strong development that withstands every day understudy utilize whereas educating appropriate explanatory procedures. The chemical-resistant surfaces handle spills without debasing performance.

Medical and Natural Labs conducting follow investigation depend on the warm steadiness our marble embed gives. Temperature changes that influence delicate estimations are minimized.

The flexibility expands to working rooms, GMP generation workshops, cleanroom situations, and logical investigate teach where estimation exactness straightforwardly impacts compliance and safety.

Quality Assurance You Can Measure

We do not fair construct tables—we confirm execution through thorough testing protocols.

Vibration Transmissibility Testing assesses weakening effectiveness over the 1-100 Hz recurrence range. This evaluates how viably the framework confines your instrument from natural disturbances.

Surface Levelness Confirmation employments laser interferon to affirm the marble embed meets or surpasses ISO 2768-m resiliences. Levelness specifically influences adjust calibration and estimation accuracy.

Static Stack Capacity Testing guarantees the damping framework works accurately beneath your equipment's weight. The framework must keep up ideal damping proportions without 'bottoming out' beneath load.

Chemical Resistance Testing takes after SEFA 8-M conventions. We confirm that coincidental spills of common research facility acids, bases, and solvents won't compromise basic keenness or surface finish.

Structural Weldment Review looks at outline joints for consistency and quality. The 0–30mm flexible leveling feet experience confirmation to ensure long-term solidness and exact stature control.

Every table ships with documentation affirming it passed these quality control measures. You get certainty along with your equipment.

Installation and Maintenance Guidelines

Getting ideal execution begins with legitimate setup and proceeds with basic upkeep practices.

Initial Placement

Position your table absent from coordinate HVAC wind current and high-traffic passages when conceivable. Indeed with amazing damping, lessening beginning unsettling influences moves forward by and large performance.

Leveling Procedure

Use a accuracy bubble level to alter all four feet. The 30mm alteration extend obliges most floor abnormalities. Check level in numerous bearings over the surface.

Load Distribution

Center your expository adjust on the marble embed. Dodge putting embellishments or holders on the confined surface—keep as it were the instrument itself on the damping platform.

Routine Checks

Monthly confirmation of level pointers takes minutes but avoids float. Review leveling feet for wear or flotsam and jetsam. Clean surfaces with laboratory-appropriate solvents that won't harm the epoxy coating.

Professional Review Schedule

We prescribe master assessment of damping instruments each 12-24 months depending on utilization escalated. High-volume offices advantage from yearly service.

Performance Verification

If you take note estimation irregularity, utilize a Quick Fourier Change (FFT) vibration analyzer. Compare floor-level reverberation against table-surface readings to affirm the framework works correctly.

These straightforward hones expand hardware life whereas keeping up the exactness that legitimizes your venture in vibration confinement technology.

Frequently Asked Questions

Q: What's the difference between passive and active vibration damping systems?

A: Passive systems like ours use mass and elastomer materials to absorb energy without power requirements. Active systems employ sensors and actuators to cancel vibrations in real-time but need electricity and periodic calibration. For most analytical applications, passive systems provide excellent performance with lower maintenance demands.

Q: How much weight can the isolated marble section support?

A: Our standard configuration handles instruments up to 50kg on the isolated surface. The overall table structure supports significantly more, but keeping the damped platform within design limits ensures optimal vibration attenuation. Contact Us for heavy-duty customizations if your equipment exceeds this specification.

Q: Does this table require external power or compressed air?

A: No external utilities are needed beyond the included power socket for your instrument. This passive damping design eliminates the complexity and ongoing costs associated with pneumatic systems. Installation is straightforward without specialized infrastructure requirements.

Q: How do I verify the table is working correctly after installation?

A: Industry professionals use FFT vibration analyzers to compare floor-level resonance against table-surface measurements. You should see significant attenuation in the critical 5-50 Hz range. Alternatively, observe your balance's stability indicator—it should settle faster and show fewer fluctuations than on a standard bench.

Q: Is the surface resistant to chemical spills?

A: Yes. The marble insert naturally resists most chemicals. The surrounding 12.7mm physical-chemical board and epoxy-coated steel frame (≥70μm coating) withstand common laboratory acids, bases, and solvents. Clean spills promptly following your laboratory's safety protocols to maintain appearance and longevity.

Q: Can I use this in a controlled cleanroom environment?

A: Absolutely. The powder-coated finish and sealed construction meet cleanroom compatibility requirements. The design minimizes particle generation and facilitates cleaning protocols necessary for ISO-rated spaces.

Partner With a One-Stop Laboratory Solutions Provider

Luoyang Youken Laboratory Equipment Co., Ltd. brings over a decade of specialized manufacturing experience to your project. Our 30,000-square-meter production base handles everything from laboratory benches and Fume Hoods to complete cleanroom installations.

We understand that your Anti-Vibration Balance Table doesn't exist in isolation. It's part of an integrated laboratory environment requiring coordinated furniture, safety equipment, and workflow optimization.

That's why we offer comprehensive project support—from initial design consultation through installation and validation. Our 100 professional engineers apply the same rigorous standards whether you're outfitting a single analytical lab or a multi-building pharmaceutical facility.

Our product portfolio serves pharmaceutical laboratories, medical facilities, educational institutions, chemical plants, biological research centers, and scientific organizations worldwide. Every solution reflects our commitment to safety, rationality, efficiency, scalability, and intelligent management.

When you choose Youken, you're not just purchasing equipment. You're gaining a partner invested in your laboratory's long-term success and measurement integrity.

Ready to Eliminate Vibration Interference?

Contact our technical team today at ceo@ukenlab.com to discuss your specific requirements for Anti-Vibration Balance Table.
