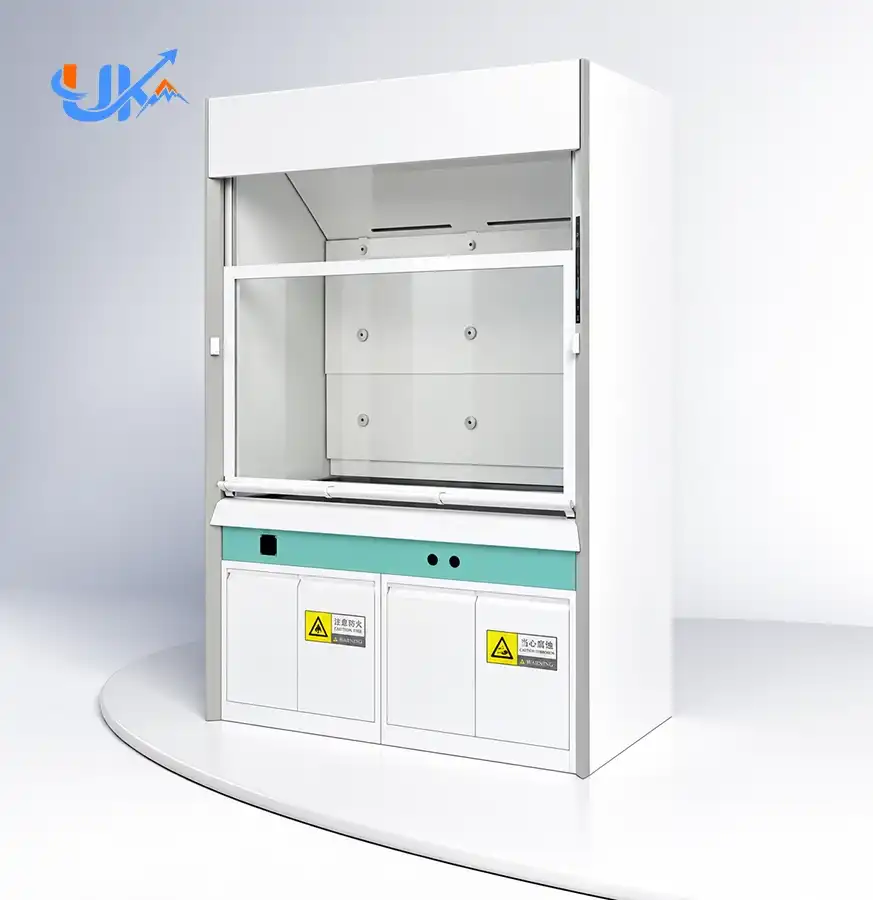

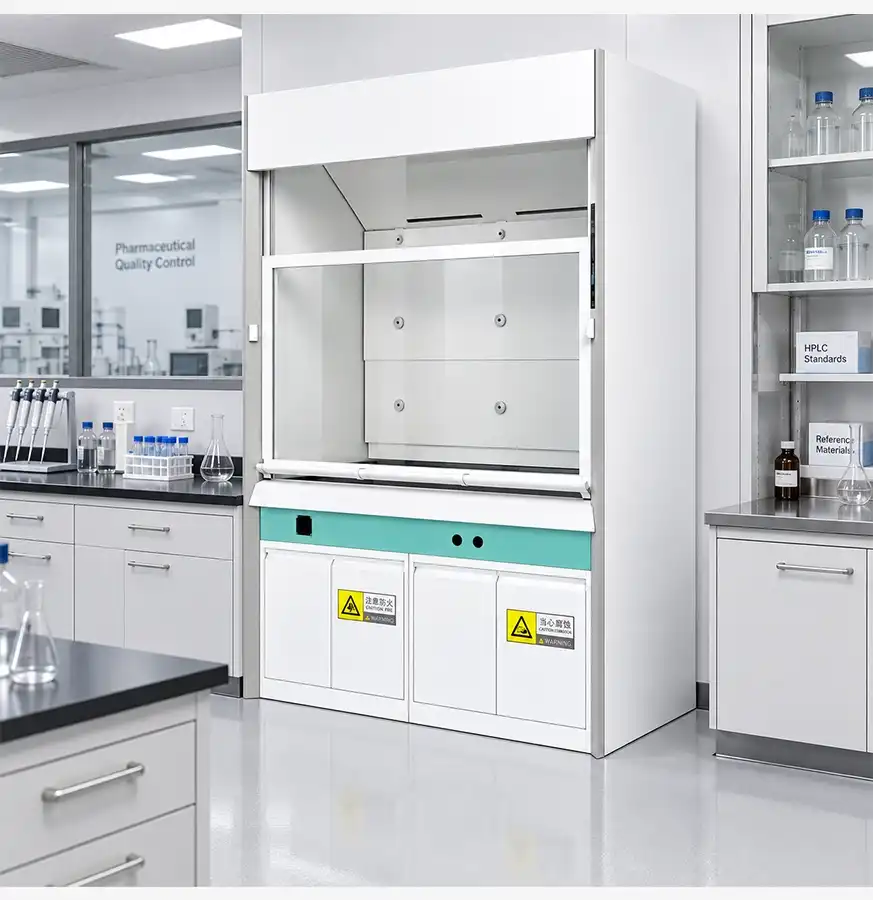

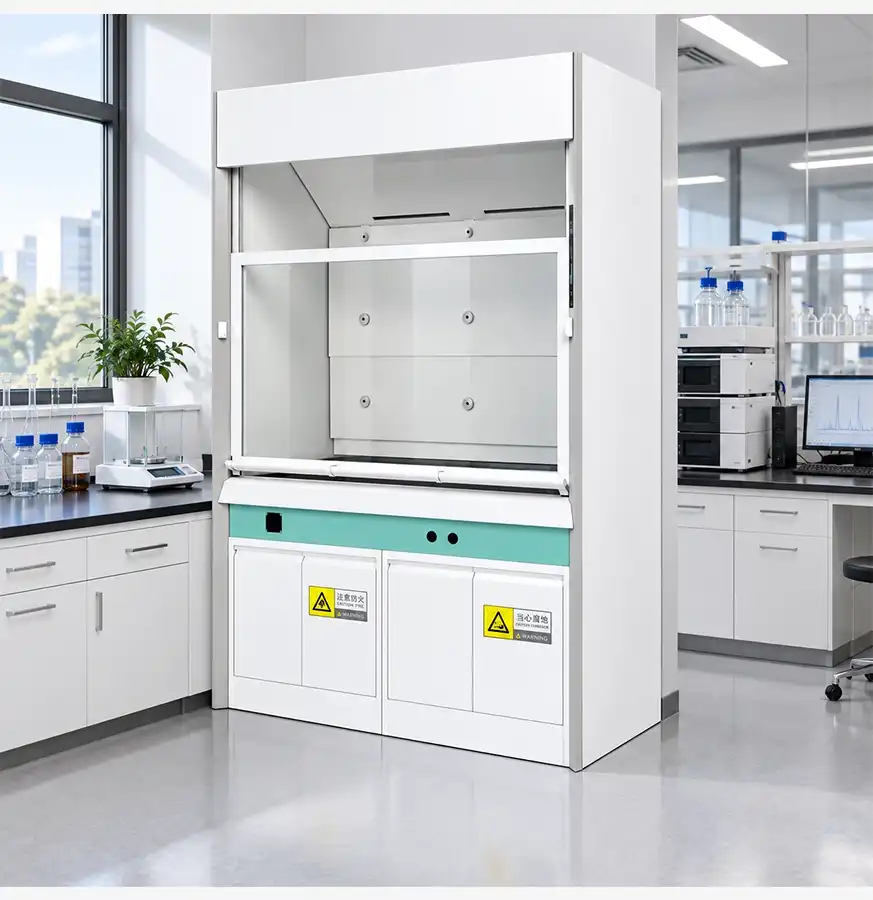

Steel Chemical Fume Cabinet

Steel Chemical Fume Cabinet – Professional Laboratory Ventilation Solution with Full Steel Construction

Luoyang Youken Laboratory Equipment Co., Ltd. delivers industrial-grade Steel Chemical Fume Cabinet solutions engineered for demanding laboratory environments. Each product is produced by Our Team of 100 expert engineers in our 30,000 m² manufacturing facility and boasts ≥1.0 mm laser cut steel structure with epoxy electrostatic powder coating surpassing 70 μm in thickness. Synchronous belt lifting mechanism, no jamming and no distortion during operation. Our entire steel body design delivers outstanding load capacity, and accurate airflow control with incorporated inner baffles. All units meet international quality requirements of CE, ISO, CQC, SEFA and SGS for dependable protection in pharmaceutical, chemical and research facilities across the globe.

What Makes Our Full Steel Construction Superior

The all-steel structural frame is a major step up from composite or wood-core options. The equipment you use in your lab work has to be able to resist the daily onslaught of chemicals without taking a hit

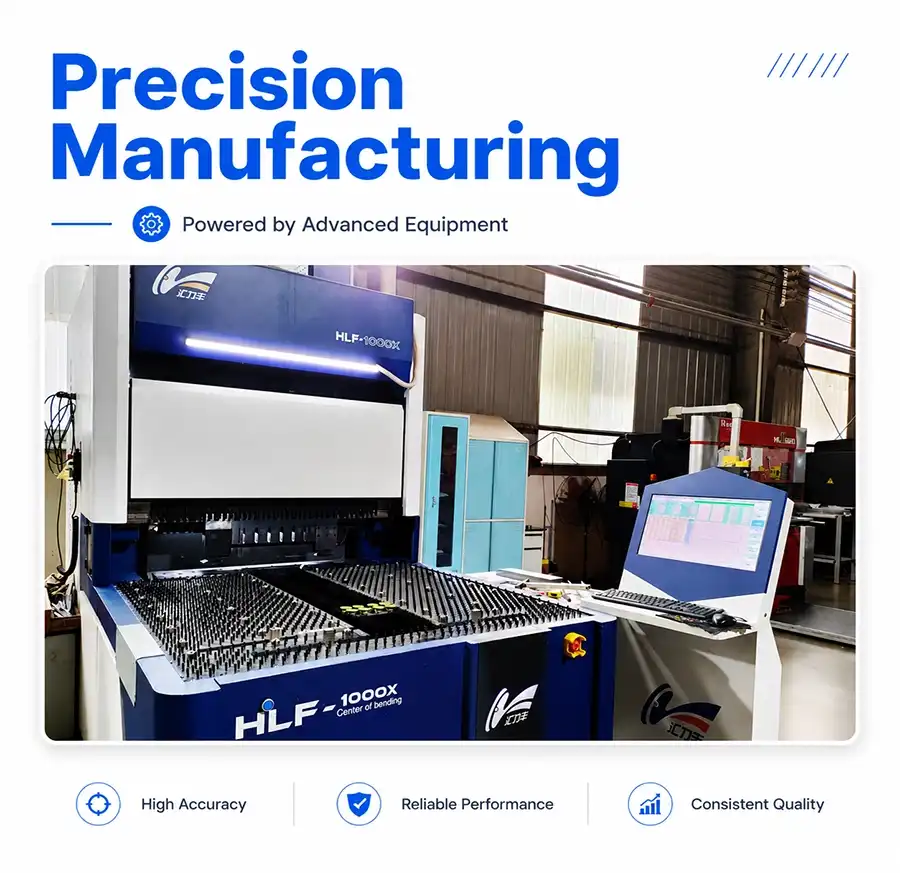

Our exterior shell is produced using high-precision laser cutting technology to achieve flawless bent-and-welded joins. This technique of construction removes weak areas where vapours corrosive in lesser designs are apt to enter. The steel plate thickness of ≥1.0 mm ensures the structural integrity under constant ventilation stresses.

Inside you might have 5 mm antibacterial board or unique corrosion resistant lining that forms a protective barrier from harsh substances. This two-layer defence system increases the life, while retaining the surface integrity when exposed to acids, alkalis and organic solvents.

Advanced Surface Protecting Technologies

The endurance of a surface has a direct influence on your maintenance expenses and equipment replacement cycles. We use an epoxy electrostatic powder coat method to provide a protective coating of at least 70 μm to all exposed steel surfaces.

This industrial-grade finish is scratch resistant from your normal equipment moving and cleaning processes. Chemical splashes bead on the surface instead of eroding into the substance. The smooth, non-porous covering makes decontamination methods easier to manage – surfaces may be wiped off quickly between experiments without the need for specific cleaning solutions .

The coating retains its protective characteristics against temperature and humidity changes typical of dynamic laboratory environments. The colour stability feature eliminates the unattractive yellowing or chalking that may happen with inferior finishes over time.

Precision Lift System Engineering

Operational reliability depends on mechanical components that perform consistently under repeated daily use. We've engineered our Steel Chemical Fume Cabinet with a synchronous belt lift mechanism that eliminates common failure modes.

Unlike chain-driven systems prone to binding and misalignment, the synchronous belt design distributes lifting force evenly across the sash width. This prevents jamming during height adjustments and eliminates the structural deformation that occurs when one side lifts faster than the other.

Your operators can smoothly position the tempered glass window at any height without excessive force or mechanical hesitation. The system maintains its calibration across tens of thousands of adjustment cycles, reducing maintenance interventions and downtime.

Safety Features That Protect Your Team

Personnel protection forms the foundation of effective laboratory ventilation design. The tempered glass sash provides both visual clarity and impact resistance, creating a transparent barrier between operators and chemical processes.

Inner airflow baffles guide ventilation patterns to ensure consistent capture velocity across the work surface. These strategically positioned guides prevent dead zones where vapors might accumulate instead of being extracted. The design maintains negative pressure within the cabinet relative to the surrounding laboratory space.

The stable construction minimizes vibration that could destabilize sensitive equipment or experimental setups positioned inside. The robust steel framework absorbs operational stresses without transmitting them to delicate apparatus.

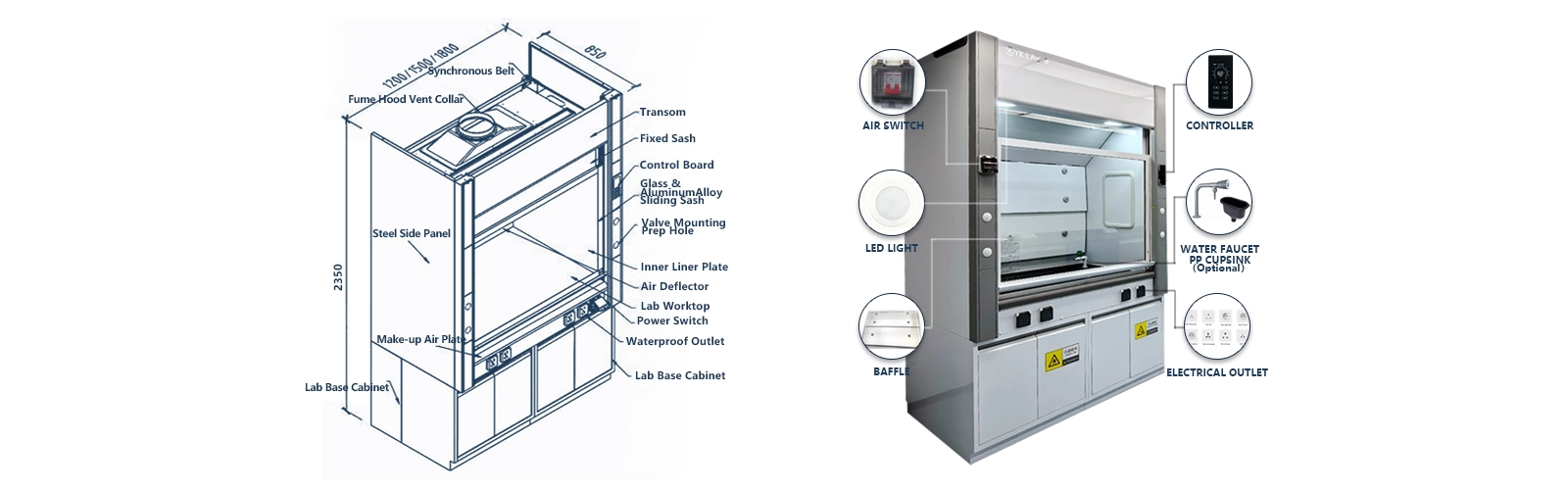

Technical Specifications of Steel Chemical Fume Cabinet

Construction Materials:

• Outer Shell: ≥1.0 mm steel plate, laser-cut and welded
• Surface Treatment: Epoxy electrostatic powder coating ≥70 μm
• Interior Lining: 5 mm antibacterial board / corrosion-resistant material
• Sash: Tempered safety glass with smooth lift operation
• Lift Mechanism: Synchronous belt system

Quality Certifications: CE, ISO, CQC, SEFA, SGS

Versatile Applications Across Industries

Pharmaceutical laboratories utilize these cabinets for active pharmaceutical ingredient handling and formulation development. The corrosion-resistant construction withstands exposure to aggressive solvents and cleaning protocols required in GMP facilities.

Chemical research institutions depend on the structural stability for analytical procedures involving volatile compounds. The reliable ventilation guidance system ensures consistent containment regardless of the chemical combinations being tested.

Educational laboratories benefit from the low-maintenance surface properties and durable construction that withstands heavy daily use by multiple operators. The straightforward cleaning requirements reduce custodial time while maintaining hygiene standards.

Quality control laboratories in cosmetic and food production facilities rely on the certified construction to meet regulatory inspection requirements. The documented compliance with international standards simplifies facility audits and permit renewals.

FAQ

Q：Do you provide installation support?

A：Yes. We provide assembly drawings, installation manuals, videos, and online technical support. On-site installation guidance can also be discussed for large projects.

Q：What is your minimum order quantity?

A：The MOQ depends on the product type and customization requirements. Trial orders and project sample orders are welcome.

Q：Do you support OEM and ODM services?

A：Yes. We support OEM and ODM cooperation, including customized dimensions, colors, branding, packaging, product structures, and project-based manufacturing.

Q：Can I choose a custom color?

A：Yes. Standard colors and customized colors are available. You may provide a RAL color number, Pantone color number, or reference sample.

Q：Will you provide drawings before production?

A：Yes. Production drawings can be prepared for confirmation before manufacturing. Production will begin after the dimensions, materials, colors, and configurations are approved.

Contact Us

Ready to upgrade your laboratory Steel Chemical Fume Cabinet ventilation infrastructure? Reach out to service@ukenlab.com or WhatsApp: +8615102909133 to start your project consultation today.
