Ducted Fume Hood Benchtop: Professional All-Steel Laboratory Exhaust Solution for Maximum Safety

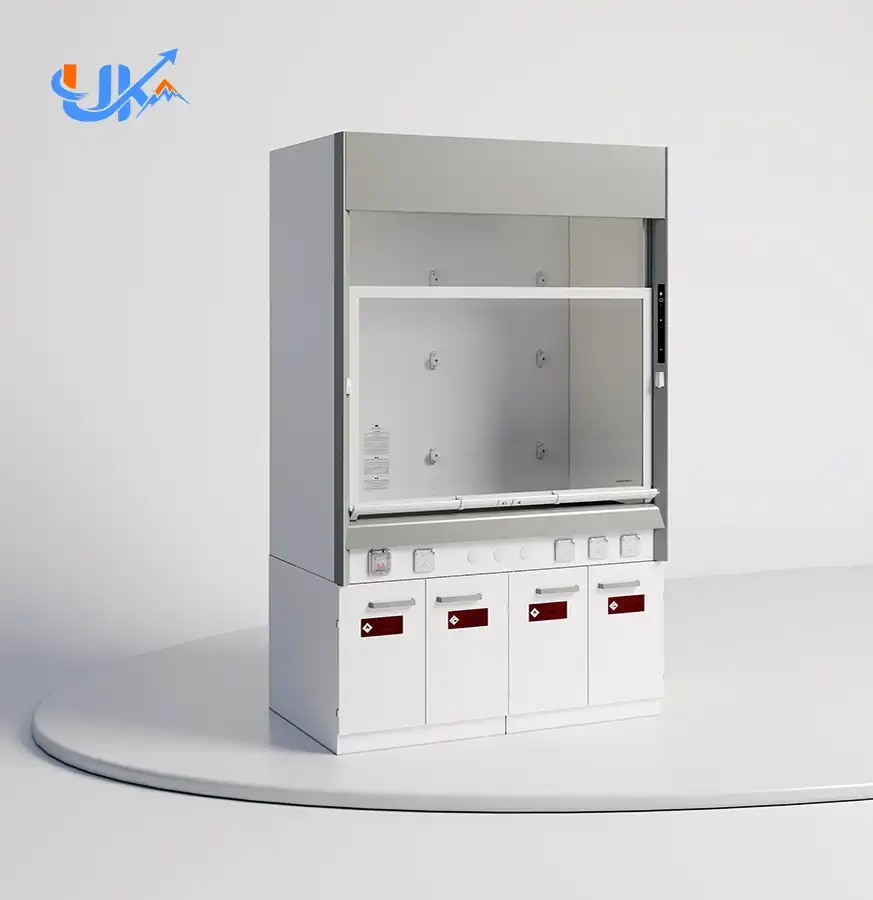

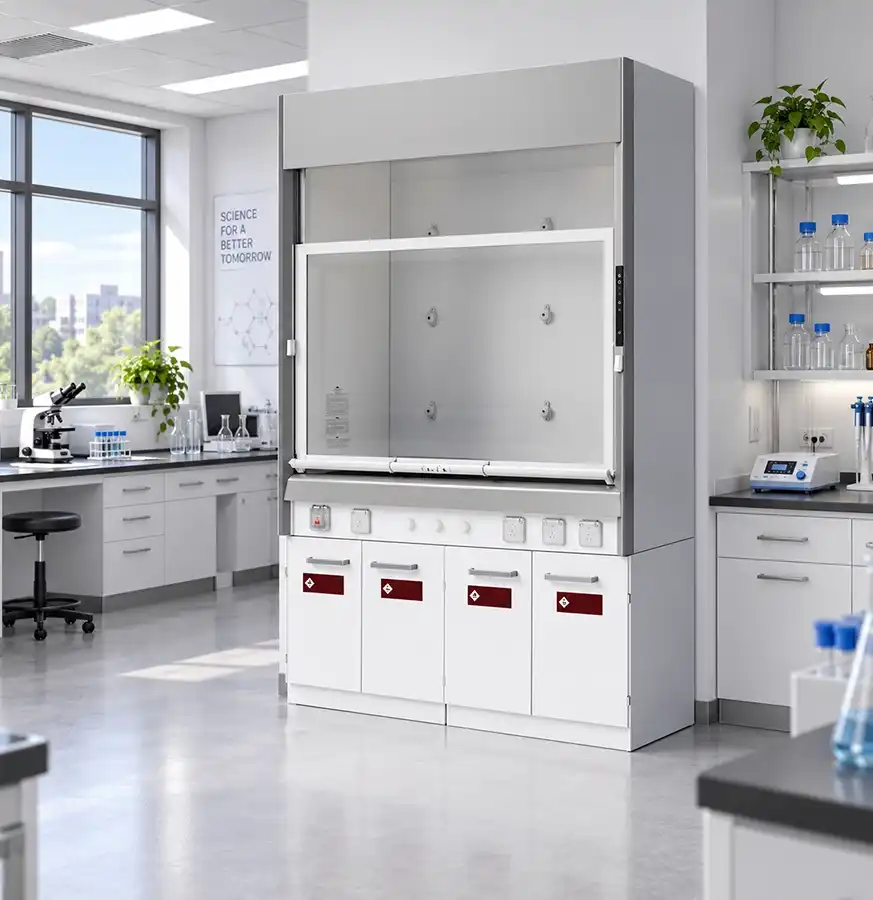

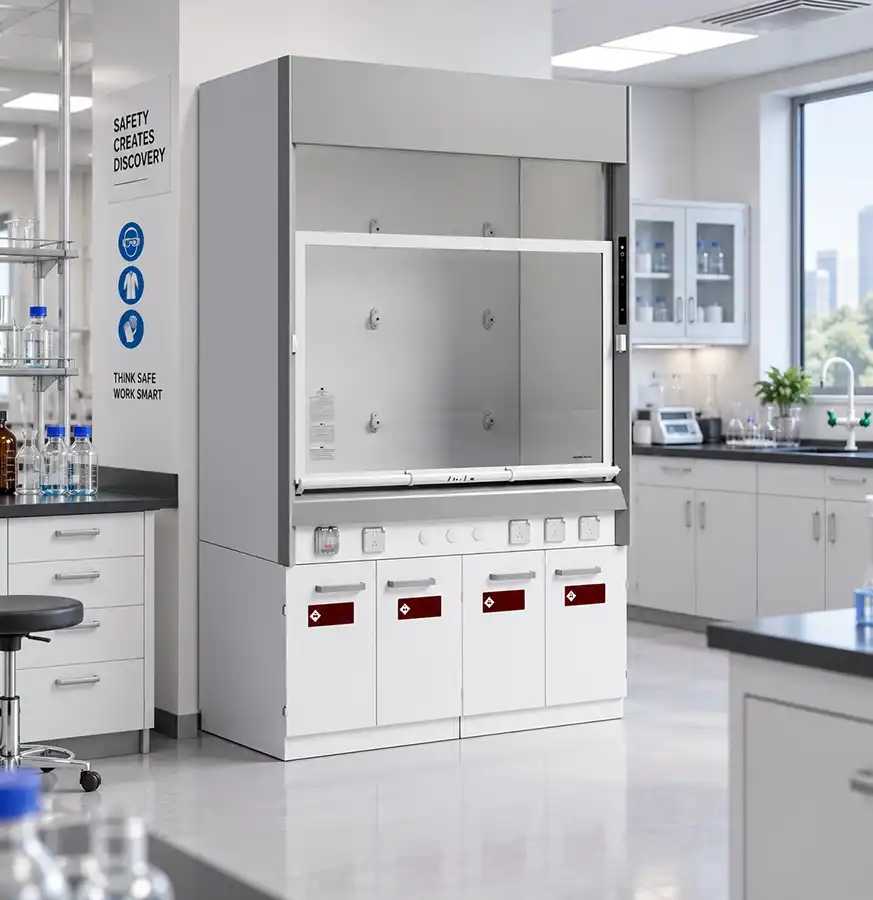

When handling hazardous chemicals and volatile compounds in modern laboratory environments, a reliable Ducted Fume Hood Benchtop unit serves as your first line of defense against airborne contaminants. Luoyang Youken Laboratory Equipment Co., Ltd. manufactures industrial-grade benchtop Fume Hoods featuring all-steel construction with ≥1.0 mm laser-cut steel plates and ≥70 μm thick epoxy powder coating. Our 30,000 m² production facility and team of 100 professional engineers deliver CE, ISO, and CQC certified solutions that meet international laboratory safety standards. Equipped with a 5 mm antibacterial inner liner, tempered glass safety window and synchronous belt lift system. For pharmaceutical, chemical and research facilities needing reliable chemical vapour extraction.

Why Choose All-Steel Construction for Your Laboratory Ventilation

Steel-framed tabletop fume hoods outperform other materials in the harsh environment of the laboratory. The steel structure is laser-cut and welded, to provide a better load-bearing capacity and dimensional stability in presence of continuous chemical attack.

Surface treatment Pickling + phosphating + epoxy powder coating, which creates a barrier to against acid and alkali corrosion. This multi-layer protection ensures much extended life of the equipment above typical painted finishes. Its smooth non porous surface inhibits the formation of microbes and allows for easy cleaning procedures.

Our manufacturing process ensures every weld point undergoes inspection before the coating application. This attention to structural integrity prevents premature failure in high-use research environments.

Technical Specifications and Dimensional Options of Ducted Fume Hood Benchtop

All units feature tempered glass safety windows with rubber buffers and synchronous belt lift mechanisms for smooth, jam-free sash operation.

Key Performance Features for Chemical Safety

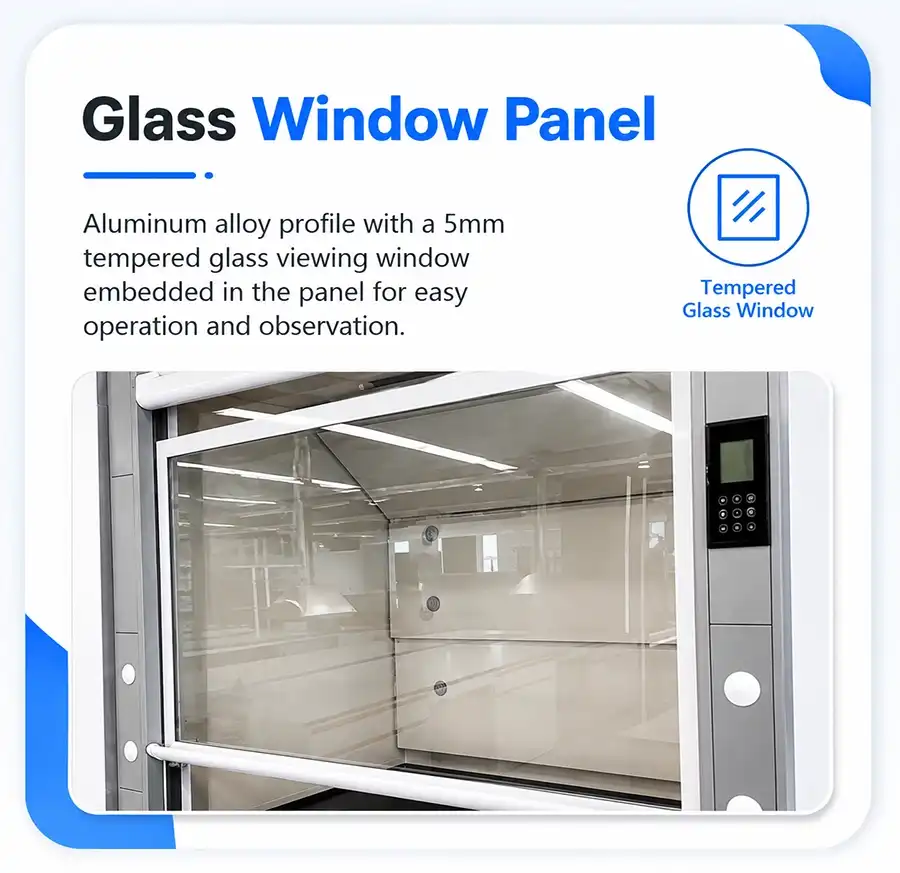

Your laboratory benefits from multiple engineered safety features working together. The tempered glass sash provides clear visibility while creating a physical barrier between operators and experimental materials. Rubber buffers dampen movement and prevent sudden closure that could disturb sensitive procedures.

The synchronous belt lift system eliminates the jarring motion common in cable-operated designs. Smooth vertical travel allows precise sash positioning without vibration that might compromise delicate instrument readings or sample integrity.

Internal airflow patterns maintain negative pressure relative to the laboratory space. This pressure differential ensures that fumes and vapors move away from the operator's breathing zone and into the exhaust duct system. When properly connected to your facility's ventilation infrastructure, the Ducted Fume Hood Benchtop configuration removes contaminants completely from your workspace.

Material Selection for Corrosive Chemical Resistance

Chemical compatibility begins with material selection. The 5 mm antibacterial board liner is resistant to typical laboratory reagents such as organic solvents, dilute acids and alkaline solutions. This inner surface is rated for everyday exposure with no deterioration requiring frequent replacement.

Steel parts are pickled and phosphated before powder coating. This treatment forms a tiny roughness on the surface that increases the adherence of the coating. The finish is resistant to peeling and blistering from cleaning products or incidental chemical contact.

For particular applications, such as perchloric acid or other very hostile substances, you may request upgraded lining materials during the customisation process. Our engineers will examine your chemical inventory and propose acceptable interior coatings.

Customization Options to Match Your Laboratory Requirements

Every research facility has unique spatial constraints and operational needs. We accommodate these variables through comprehensive customization services. You can specify alternative dimensions beyond our three standard sizes to fit existing benchtop layouts or equipment arrangements.

Color selection extends beyond standard laboratory white. Provide RAL or Pantone reference numbers to match your facility's color coding system for different chemical hazard levels. Custom colors help reinforce safety protocols through visual differentiation.

Internal configuration adapts to your workflow. Specify electrical outlet placement, gas valve positions, or integrated lighting based on the equipment you'll operate inside the hood. Our production drawings show exact placement before manufacturing begins, ensuring the finished unit meets your functional requirements.

Structural modifications support specialized research needs. Request additional internal shelving, modified working heights, or reinforced surfaces for heavy equipment mounting. The all-steel construction accommodates these alterations without compromising structural integrity.

Installation Support and Technical Guidance

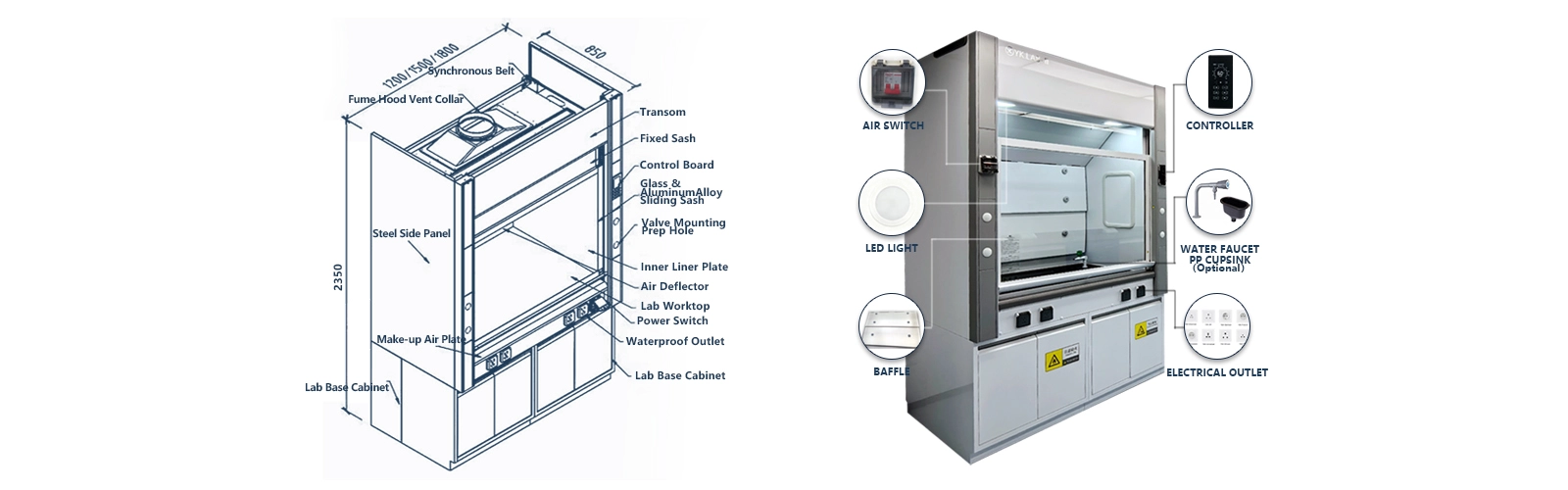

Successful Ducted Fume Hood Benchtop installation requires proper connection to your building's exhaust system. We provide detailed assembly drawings showing all connection points, mounting requirements, and electrical specifications. Installation manuals walk your facilities team through each assembly step with illustrated instructions.

Video tutorials demonstrate critical procedures including sash alignment, belt tension adjustment, and leak testing protocols. These visual guides reduce installation time and prevent common setup errors.

For large-scale laboratory construction projects or facility renovations involving multiple units, we can arrange on-site technical guidance. Our engineers work directly with your contractors to ensure proper integration with existing HVAC infrastructure and compliance with local building codes.

Quality Assurance Through International Certification

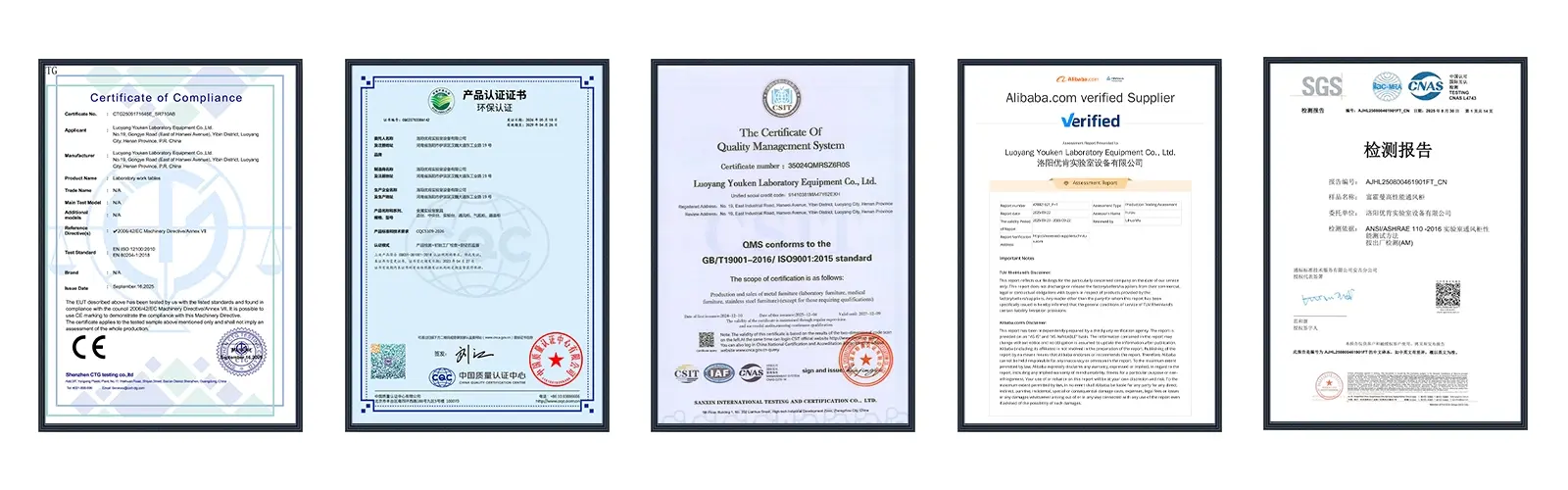

Manufacturing standards align with multiple international quality frameworks. CE certification confirms compliance with European health and safety requirements. ISO certification validates our quality management systems across design, production, and testing phases.

CQC certification demonstrates adherence to Chinese quality standards, while SEFA compliance ensures our products meet specialized laboratory furniture performance criteria. SGS third-party testing verifies material properties and structural performance claims.

Each certification requires regular audits and testing to maintain validity. This ongoing oversight ensures consistent product quality across all production runs.

FAQ

Q：Do you provide installation support?

A：Yes. We provide assembly drawings, installation manuals, videos, and online technical support. On-site installation guidance can also be discussed for large projects.

Q：What is your minimum order quantity?

A：The MOQ depends on the product type and customization requirements. Trial orders and project sample orders are welcome.

Q：Do you support OEM and ODM services?

A：Yes. We support OEM and ODM cooperation, including customized dimensions, colors, branding, packaging, product structures, and project-based manufacturing.

Q：Can I choose a custom color?

A：Yes. Standard colors and customized colors are available. You may provide a RAL color number, Pantone color number, or reference sample.

Q：Will you provide drawings before production?

A：Yes. Production drawings can be prepared for confirmation before manufacturing. Production will begin after the dimensions, materials, colors, and configurations are approved.

Contact Us

Our engineering team stands ready to discuss your specific requirements and recommend the optimal Ducted Fume Hood Benchtop configuration for your research environment. Reach out to us at service@ukenlab.com or WhatsApp: +8615102909133 to begin your project consultation.
